DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3797DC DC CONVERTER 15V 9W |
217 |
|
Технический лист |
D36V6 | 4-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 15.2V | 50V | 15V | - | - | - | 600mA | 9 W | - | - | - | - | 93% | - | - | Through Hole | 0.50" L x 0.40" W x 0.10" H (12.7mm x 10.2mm x 2.5mm) | - | Enable, Active Floating | - | - |
|
49449V STEPUP VREG U3V16F9 |
186 |
|
Технический лист |
U3V16 | 3-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 1.3V | 16V | 9V | - | - | - | 1.4A | 2.1 W | - | - | OTP, UVLO | - | 90% | - | - | Through Hole | 0.52" L x 0.32" W x 0.10" H (13.2mm x 8.1mm x 2.5mm) | - | - | - | - |
|
49437.5V STEPUP VREG U3V16F7 |
174 |
|
Технический лист |
U3V16 | 3-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 1.3V | 16V | 7.5V | - | - | - | 1.4A | 2.1 W | - | - | OTP, UVLO | - | 90% | - | - | Through Hole | 0.52" L x 0.32" W x 0.10" H (13.2mm x 8.1mm x 2.5mm) | - | - | - | - |
|
49426V STEPUP VREG U3V16F6 |
154 |
|
Технический лист |
U3V16 | 3-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 1.3V | 16V | 6V | - | - | - | 1.4A | 2.1 W | - | - | OTP, UVLO | - | 90% | - | - | Through Hole | 0.52" L x 0.32" W x 0.10" H (13.2mm x 8.1mm x 2.5mm) | - | - | - | - |
|

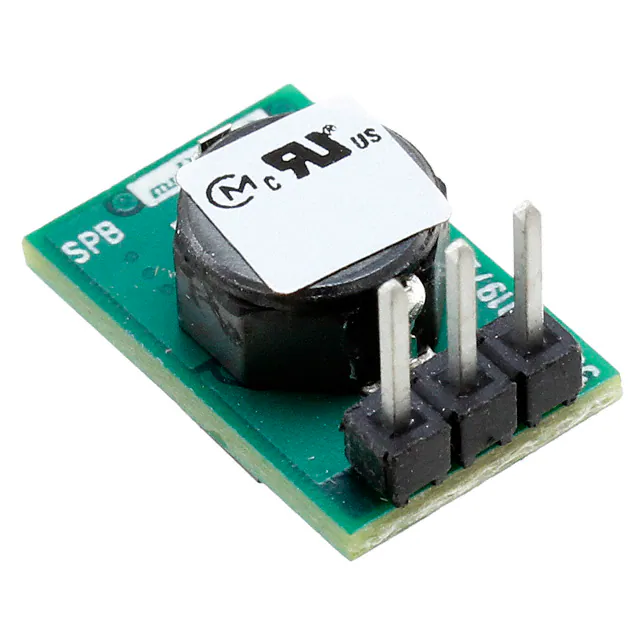

OKI-78SR-12/1.0-W36H-CDC DC CONVERTER 12V 12W |
768 |
|
Технический лист |
Okami™ OKI-78SR | 3-SIP Module | Tray | Obsolete | Linear Regulator Replacement | 1 | 15V | 36V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 95.3% | - | - | Through Hole | 0.65" L x 0.41" W x 0.30" H (16.5mm x 10.4mm x 7.6mm) | - | - | - | - |
|
R1DX-0509-RDC DC CONVERTER +/-9V 1W |
119 |
|
Технический лист |
ECONOLINE R1DX (1W) | 10-SMD, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 95°C | 78% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.33" H (15.2mm x 10.7mm x 8.5mm) | - | - | - | - |
|
|
G0509S-1WR2ISOLATED MODULE DC DC CONVERTER2 |
310 |
|
Технический лист |
G_S-1WR2 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 56mA, 56mA | 1.008 W | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.39" W x 0.94" H (19.5mm x 9.8mm x 24.0mm) | - | - | CB, CE, cURus | 60601-1; 60950-1 |
|
|
R1DX-0512-RDC DC CONVERTER +/-12V 1W |
105 |
|
Технический лист |
ECONOLINE R1DX (1W) | 10-SMD, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 95°C | 80% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.33" H (15.2mm x 10.7mm x 8.5mm) | - | - | - | - |
|

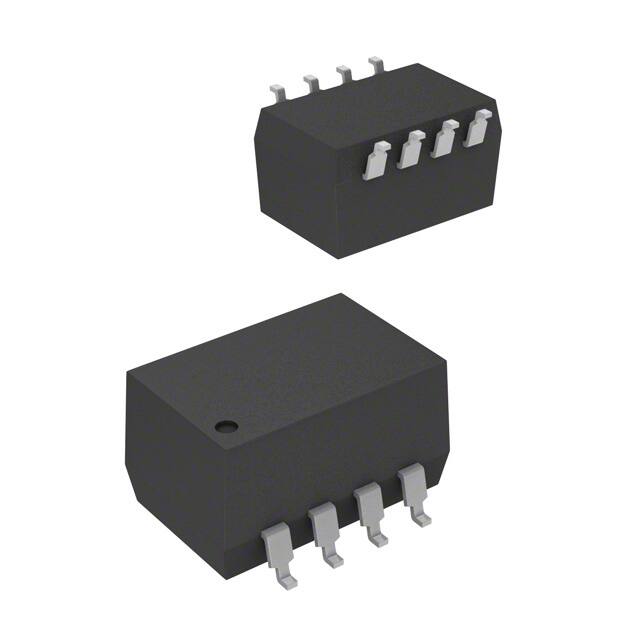

RSS8-3.33.3-RCONV DC/DC 1W 3.3VIN 3.3VOUT |
500 |
|
Технический лист |
ECONOLINE RSS (1W) | 8-SMD Module | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 3V | 3.6V | 3.3V | - | - | - | 303mA | - | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 75% | - | - | Surface Mount | 0.50" L x 0.32" W x 0.29" H (12.8mm x 8.2mm x 7.3mm) | - | - | - | - |
|
AM2D-1218SZDC DC CONVERTER 18V 2W |
198 |
|
Технический лист |
AM2D-Z (2W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 18V | - | - | - | 111mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE | - |
|
PDS1-S24-S24-SDC DC CONVERTER 24V 1W |
3,106 |
|
Технический лист |
PDS1-S (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
2T8A1_0505S1.5UPDC-DC INDUSTRIAL |
186 |
|
Технический лист |
2T8A1_1.5UP (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Surface Mount | 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm) | - | - | CE | 60950-1 |
|
|
2T8A1_1212S1.5UPDC-DC INDUSTRIAL |
110 |
|
Технический лист |
2T8A1_1.5UP (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm) | - | - | CE | 60950-1 |
|

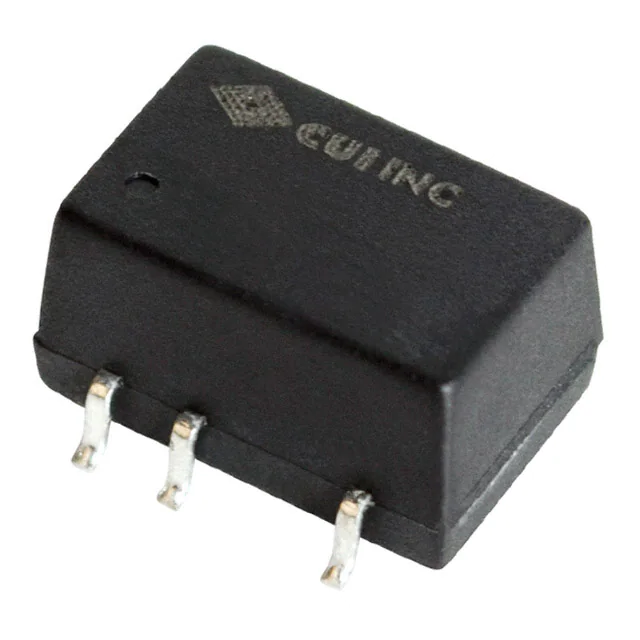

PDS1-S5-S24-M-TRDC DC CONVERTER 24V 1W |
2,602 |
|
Технический лист |
PDS1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm) | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDS1-S12-S3-M-TRDC DC CONVERTER 3.3V 1W |
1,799 |
|
Технический лист |
PDS1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 74% | - | - | Surface Mount | 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm) | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDS1-S24-S9-M-TRDC DC CONVERTER 9V 1W |
386 |
|
Технический лист |
PDS1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 62368-1 |
|
|
PDSE1-S3-D12-MDC-DC ISOLATED, 1 W, 2.97~3.63 V |
259 |
|
Технический лист |
PDSE1-M (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 2.97V | 3.63V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | cURus | 62368-1 |
|
|
PDSE1-S3-S5-MDC-DC ISOLATED, 1 W, 2.97~3.63 V |
241 |
|
Технический лист |
PDSE1-M (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | cURus | 62368-1 |
|
|
PDSE1-S3-D15-MDC-DC ISOLATED, 1 W, 2.97~3.63 V |
153 |
|
Технический лист |
PDSE1-M (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 2.97V | 3.63V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | cURus | 62368-1 |
|
SMA01N-09DC DC CONVERTER 9V 1W |
156 |
|
Технический лист |
SMA01 (1W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 110mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 90°C (With Derating) | 75% | - | - | Through Hole | 0.50" L x 0.40" W x 0.28" H (12.7mm x 10.2mm x 7.1mm) | - | - | - | - |
