DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM1/2S-1512SH30ZDC DC CONVERTER 12V 500MW |
400 |
|
Технический лист |
AM1/2S-Z (0.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 41.67mA | 500 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | CE | - |
|
|
AM1/2S-2418SZDC DC CONVERTER 18V 500MW |
400 |
|
Технический лист |
AM1/2S-Z (0.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 18V | - | - | - | 27.77mA | 500 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 73% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | CE | - |
|
|
AM1/2S-1224SZDC DC CONVERTER 24V 679MW |
400 |
|
Технический лист |
AM1/2S-Z (0.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 28.3mA | 679 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | CE | - |
|
E2412S-1WR3DC DC CONVERTER +/-12V 1W |
199 |
|
Технический лист |
E_S-1WR3 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
XCL222B121ER-GDC DC CONVERTER 1.2V |
2,232 |
|
Технический лист |
XCL222 | 8-TDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.5V | 5.5V | 1.2V | - | - | - | 500mA | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 105°C | 93% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | CL-2025-02 | - | - | - |
|
OKL-T/1-W12N-CDC DC CONVERTER 0.9-5V 5W |
211 |
|
Технический лист |
Okami™ OKL-T/1-W12 | 12-BLGA Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.9V | 14V | 0.9 ~ 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.49" L x 0.49" W x 0.18" H (12.4mm x 12.4mm x 4.6mm) | - | Enable, Active Low | - | - |
|
IAB0124D15DC DC CONVERTER DUAL 15V 1W |
134 |
|
Технический лист |
IAB01 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 34mA, 34mA | 1.02 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE, UKCA, UL | 62368-1 |
|
|
H78S09-0.5DC DC CONVERTER CHEAP PRICE |
19,998 |
|
Технический лист |
H78S | 3-SIP Module | Case | Active | Non-Isolated PoL Module | 1 | 12V | 32V | 9V | - | - | - | 500mA | 4.5 W | - | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | - | - | - | Through Hole | 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 8.9mm) | - | - | - | - |
|
F0524XT-1WR3DC DC CONVERTER 24V 1W |
171 |
|
Технический лист |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus | - |
|

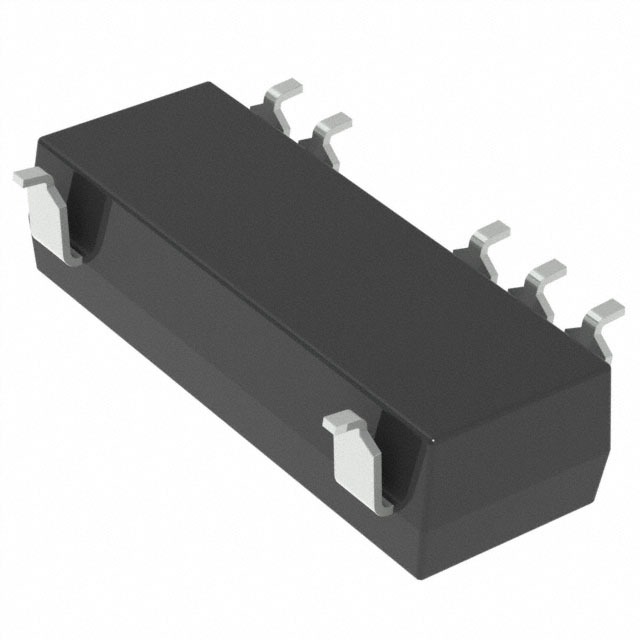

DCP010515P-UIC ISOLATED 15V 7SOP |
255 |
|
Технический лист |
* | 14-SMD Module, 7 Leads, Gull Wing | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | 7-SOP | - | - | - |
|
|
E2407S-2WR3ISOLATED MODULE DC DC CONVERTER |
664 |
|
Технический лист |
E_S-2WR3 (2W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 7.2V | -7.2V | - | - | 139mA, 139mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | CB, CE, cURus | 62368-1 |
|
|
E2409S-2WR3ISOLATED MODULE DC DC CONVERTER |
104 |
|
Технический лист |
E_S-2WR3 (2W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 111mA, 111mA | 1.99 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | CB, CE, cURus | 62368-1 |
|
PESE1-S5-D24-M-TRDC DC CONVERTER +/-24V 1W |
500 |
|
Технический лист |
PESE1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 24V | -24V | - | - | 21mA, 21mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CB Scheme, EN, IEC | 55024; 55032 Class A; 62368-1 |
|
|
MRS24S15-6WDC DC CONVERTER +/-12V 1.992W |
20,000 |
|
Технический лист |
- | 7-SIP Module, 5 Leads | Bulk | Active | Isolated Module | 2 | 4.75V | 5.25V | 15V | -12V | - | - | 83mA, 83mA | 1.992 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | - | - | - | Through Hole | 0.91" L x 0.39" W x 0.50" H (23.0mm x 9.8mm x 12.6mm) | - | - | CE | - |
|
|
S12D12-1WH2DC DC CONVERTER +/-12V 1W |
19,998 |
|
Технический лист |
- | 7-SIP Module, 5 Leads | Bulk | Active | Isolated Module | 2 | 11.4V | 12.6V | 12V | -12V | - | - | 41mA, 41mA | 1 W | 3 kV | Industrial | - | -40°C ~ 85°C (With Derating) | 80 ~ 88% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|
PDME1-S15-S9-SDC-DC ISOLATED 1.5KV, 1 W, 13.5~ |
115 |
|
Технический лист |
PDME1-S (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE, cURus | 62368-1 |
|
B1212S-2WR3DC DC CONVERTER 12V 2W |
2,715 |
|
Технический лист |
B_S-2WR3 (2W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
PQMCE1-S5-S15-SDC DC CONVERTER 15V 1W |
187 |
|
Технический лист |
PQMCE1-S | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 62368-1 |
|
F2424S-1WR3DC DC CONVERTER 24V 1W |
886 |
|
Технический лист |
F_S-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
|
F2405S-1WR3DC DC CONVERTER 5V 1W |
452 |
|
Технический лист |
F_S-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus, UL | 62368-1 |
