DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1515N-1WR3DC DC CONVERTER 15V 1W |
190 |
|
Технический лист |
F1515N-1WR3 (1W) | 7-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.2mm) | - | - | CE | 62368-1 |
|
FB0505T-1WR4ISOLATED MODULE DC DC CONVERTER |
780 |
|
Технический лист |
FB0505T-1WR4 (1W) | 20-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 4.2 kV | ITE (Commercial) | - | -40°C ~ 125°C (With Derating) | 87% | - | - | Surface Mount | 0.52" L x 0.28" W x 0.12" H (13.2mm x 7.0mm x 3.1mm) | - | - | - | - |
|
|
F0503XT-1WR3-TRDC DC CONVERTER 1W 3.3V DIP SMD |
538 |
|
Технический лист |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | - | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 74% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, UL | - |
|

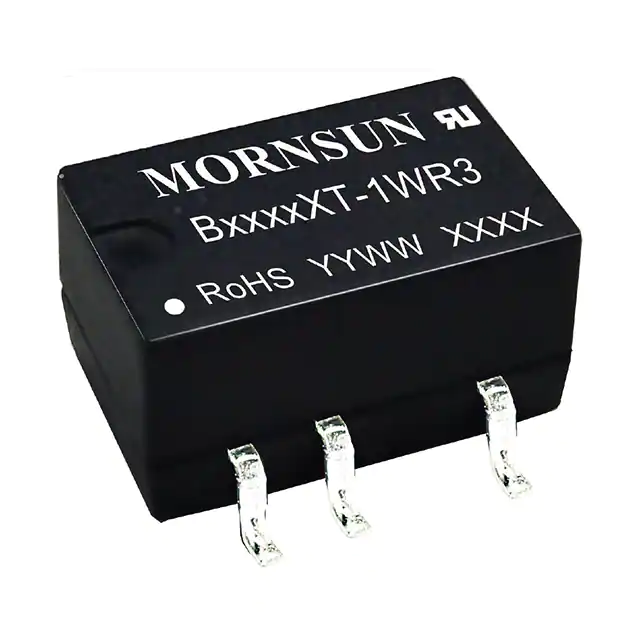

B2409XT-1WR3-TRDC DC CONVERTER 9V 1W |
533 |
|
Технический лист |
B_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 999 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
|
B1505XT-1WR3-TRDC DC CONVERTER 5V 1W |
500 |
|
Технический лист |
B_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
E1524S-1WR3DC DC CONVERTER +/-24V 1W |
349 |
|
Технический лист |
E1524S-1WR3 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 13.5V | 16.5V | 24V | -24V | - | - | 21mA, 21mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
B0312LS-1WR3DC DC CONVERTER 12V 1W |
232 |
|
Технический лист |
B0324LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 12V | - | - | - | 83mA | 996 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
IB1209LS-1WR3DC-DC ISOLATED 1 W 11.4~12.6V |
225 |
|
Технический лист |
IB_LS-1WR3 | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 11.4V | 12.6V | 9V | - | - | - | 111mA | 999 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE, cURus, UL | 62368-1 |
|
B0315LS-1WR3DC DC CONVERTER 15V 1W |
224 |
|
Технический лист |
B0315LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
IB0509LS-1WR3DC DC CONVERTER 9V 990MW |
175 |
|
Технический лист |
IB05_LS-1WR3 | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 9V | - | - | - | 111mA | 999 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 71% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus, UKCA | 62368-1 |
|
|
E0505XT-1WR3-TRDC DC CONVERTER 1W 5V DIP SMD |
473 |
|
Технический лист |
E_XT-1WR3 (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | - | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus, UL | - |
|
|
F0509XT-1WR3-TRDC DC CONVERTER 1W 9V DIP SMD |
471 |
|
Технический лист |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | - | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, UL | - |
|
B0505LS-1WR3DC DC CONVERTER 5V 1W |
20,507 |
|
Технический лист |
B_LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus | - |
|
LMTM78_15-0.5NON-ISOLATED POL MODULE DC DC |
756 |
|
Технический лист |
LMT78_0.5 | 6-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 18V | 36V | 15V | - | - | - | 500mA | 7.5 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 91% | - | - | Surface Mount | 0.35" L x 0.28" W x 0.12" H (9.0mm x 7.0mm x 3.1mm) | - | - | CE | - |
|
IB1515LS-1WR3DC-DC ISOLATED 1 W 14.25-15.75V |
795 |
|
Технический лист |
IB_LS-1WR3 | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 14.25V | 15.75V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE, cURus | 62368-1 |
|
|
LMTM78_6.5-0.5DC-DC POL |
719 |
|
Технический лист |
LMT78_0.5 | 6-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 8V | 36V | 6.5V | - | - | - | 500mA | 3.25 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 91% | - | - | Surface Mount | 0.35" L x 0.28" W x 0.12" H (9.0mm x 7.0mm x 3.1mm) | - | - | CE | - |
|
K78L05-1000R3DC DC CONVERTER 5V |
201 |
|
Технический лист |
K78Lxx-1000R3 | 3-SIP Module | Tray | Not For New Designs | Non-Isolated PoL Module | 1 | 8V | 27V, 36V | 5V, -5V | - | - | - | 1A, 500mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 0.45" L x 0.30" W x 0.69" H (11.5mm x 7.5mm x 17.5mm) | - | - | CB, CE, cURus | 60950-1; 62368-1 |
|
K78X6T-500R3-TRDC DC CONVERTER 6.5V 3.25W |
300 |
|
Технический лист |
K78X6T-500R3 | 10-SMD Module, 8 Leads | Tape & Reel (TR) | Not For New Designs | Linear Regulator Replacement | 1 | 8V | 36V | 6.5V | - | - | - | 500mA | 3.25 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 92% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) | - | - | CE | - |
|
|
LMTM78_6.5-1.0NON-ISOLATED POL MODULE DC DC CO |
577 |
|
Технический лист |
LMTM78_1.0 | 6-BDFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 2 | 8V | 36V | 6.5V | -6.5V | - | - | 1A, 500mA | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 92% | - | - | Surface Mount | 0.35" L x 0.28" W x 0.12" H (9.0mm x 7.0mm x 3.1mm) | 6-DFN (9x7) | - | - | 62368-1 |
|
|
LMTM78_09-1.0NON-ISOLATED POL MODULE DC DC CO |
270 |
|
Технический лист |
LMTM78_1.0 | 6-BDFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 2 | 12V | 36V | 9V | -9V | - | - | 1A, 500mA | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 92% | - | - | Surface Mount | 0.35" L x 0.28" W x 0.12" H (9.0mm x 7.0mm x 3.1mm) | 6-DFN (9x7) | - | - | 62368-1 |
