DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEQ5-300FL0.5HVPS,300VDC, 5V INPUT, 0.5 WATT, |
68 |
|
Технический лист |
UltraVolt© AEQ | 6-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 4.5V | 5.5V | 300V | - | - | - | 1.67mA | 500 mW | 1.5 kV | ITE (Commercial) | Adjustable Output | -25°C ~ 70°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | Module | - | No | 62368-1 |
|
|
AEQ5-300BP0.5HVPS,+/-300VDC, BIPOLAR W/CT, 5V |
68 |
|
Технический лист |
UltraVolt© AEQ | 6-DIP Module | Bulk | Active | High Voltage - Isolated Module | 2 | 4.5V | 5.5V | 300V | -300V | - | - | 833µA, 833µA | 500 mW | 1.5 kV | ITE (Commercial) | Adjustable Output | -25°C ~ 70°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | Module | - | No | 62368-1 |
|
|
PSR53-9GDC DC CONVERTER 5V |
24 |
|
Технический лист |
Melcher PSR | Module | Bulk | Active | Non-Isolated PoL Module, Conformal Coated | 1 | 8V | 80V | 5V | - | - | - | 3A | - | - | ITE (Commercial), Railway | Remote On/Off, SCP, UVLO | -40°C ~ 71°C | 87% | - | - | Through Hole | 2.76" L x 1.98" W x 0.99" H (70.2mm x 50.2mm x 25.2mm) | - | - | - | - |
|
|
PSA241.5-9IRGDC DC CONVERTER 24V |
30 |
|
Технический лист |
Melcher PSA | Module | Bulk | Active | Non-Isolated PoL Module, Conformal Coated | 1 | 31V | 144V | 24V | - | - | - | 1.5A | - | - | ITE (Commercial), Railway | Remote On/Off, SCP, UVLO | -40°C ~ 71°C | 93% | - | - | Through Hole | 2.76" L x 1.98" W x 0.99" H (70.2mm x 50.2mm x 25.2mm) | - | - | - | - |
|
|
AEQ5-600FL0.5HVPS,600VDC, 5V INPUT, 0.5 WATT, |
69 |
|
Технический лист |
UltraVolt© AEQ | 6-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 4.5V | 5.5V | 600V | - | - | - | 833µA | 500 mW | 1.5 kV | ITE (Commercial) | Adjustable Output | -25°C ~ 70°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | Module | - | No | 62368-1 |
|
V300C48C150BNDC DC CONVERTER 48V 150W |
50 |
|
Технический лист |
MICRO (150W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 180V | 375V | 48V | - | - | - | 3.13A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 88.2% | - | - | Through Hole | 2.28" L x 1.45" W x 0.62" H (57.9mm x 36.8mm x 15.7mm) | - | - | - | - |
|
|
LTM4682EY#PBFLOW VOUT QUAD 31.25A OR SINGLE 1 |
60 |
|
Технический лист |
LTM®4682 | 330-BBGA Module | Tray | Active | Linear Regulator Replacement | 1 | 4.5V | 16V | 0.7 ~ 1.35V | - | - | - | 125A | 169 W | - | ITE (Commercial) | Adjustable Output, I2C Interface, Load Sharing, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C | - | - | - | Surface Mount | 0.87" L x 0.59" W x 0.22" H (22.0mm x 15.0mm x 5.7mm) | 330-BGA (22x15) | - | - | - |
|
AIF50B300-NTLDC DC CONVERTER 12V 600W |
64 |
|
Технический лист |
AIF (600W) | Module | Bulk | Active | Non-Isolated PoL Module | 1 | 250V | 420V | 12V | - | - | - | 50A | 600 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP | -20°C ~ 100°C | 90% | - | - | Through Hole | 4.60" L x 2.40" W x 0.55" H (116.8mm x 61.0mm x 14.0mm) | - | - | - | - |
|

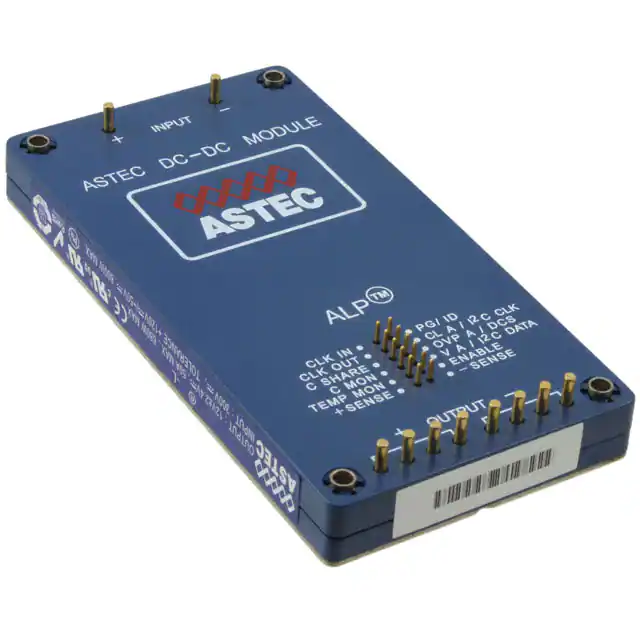

AIF50B300-LDC DC CONVERTER 12V 600W |
62 |
|
Технический лист |
AIF (600W) | Module | Tray | Active | Non-Isolated PoL Module | 1 | 250V | 420V | 12V | - | - | - | 50A | 600 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP | -20°C ~ 100°C | 90% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | - | - | - | - |
|
|
110IMY35D12D12-8DC DC CONVERTER 12V 12V 12V 35W |
96 |
|
Технический лист |
Melcher IMY35 (35W) | 19-DIP Module, 17 Leads | Bulk | Active | Isolated Module, Conformal Coated | 4 | 60V | 150V | 12V | 12V | 12V | - | 700mA, 700mA, 700mA | 35 W | 2.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | 3.00" L x 2.50" W x 0.41" H (76.2mm x 63.5mm x 10.5mm) | - | - | - | - |
|
|
110IMY35D15D15-8DC DC CONVERTER 15V 15V 15V |
96 |
|
Технический лист |
Melcher IMY35 (35W) | 19-DIP Module, 17 Leads | Bulk | Active | Isolated Module | 4 | 60V | 150V | 15V | 15V | 15V | - | 600mA, 600mA, 600mA | - | 2.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | 3.00" L x 2.50" W x 0.41" H (76.2mm x 63.5mm x 10.5mm) | - | - | - | - |
|
|
AEQ5-50BP0.5HVPS,+/-50VDC, BIPOLAR W/CT, 5V |
68 |
|
Технический лист |
UltraVolt© AEQ | 6-DIP Module | Bulk | Active | High Voltage - Isolated Module | 2 | 4.5V | 5.5V | 50V | -50V | - | - | 5mA, 5mA | 500 mW | 1.5 kV | ITE (Commercial) | Adjustable Output | -25°C ~ 70°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | Module | - | No | 62368-1 |
|
MTC1528S3V3DC DC CONVERTER 3.3V 15W |
41 |
|
Технический лист |
MTC (15W) | 14-DIP Module, 8 Leads | Box | Active | Isolated Module | 1 | 15.5V | 40V | 3.3V | - | - | - | 3.03A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C | 77% | - | - | Through Hole | 1.57" L x 1.02" W x 0.38" H (40.0mm x 26.0mm x 9.7mm) | - | Enable, Active High | - | - |
|
VI-720217BC 100/200/150 70V/ 2.2A |
27 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | 2.2A | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LTM4682IY#PBFLOW VOUT QUAD 31.25A OR SINGLE 1 |
55 |
|
Технический лист |
LTM®4682 | 330-BBGA Module | Tray | Active | Linear Regulator Replacement | 1 | 4.5V | 16V | 0.7 ~ 1.35V | - | - | - | 125A | 169 W | - | ITE (Commercial) | Adjustable Output, I2C Interface, Load Sharing, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C | - | - | - | Surface Mount | 0.87" L x 0.59" W x 0.22" H (22.0mm x 15.0mm x 5.7mm) | 330-BGA (22x15) | - | - | - |
|
|
AIF80A300N-NTLDC DC CONVERTER 5V 600W |
54 |
|
Технический лист |
AIF (600W) | Module | Bulk | Active | Non-Isolated PoL Module | 1 | 250V | 420V | 5V | - | - | - | 80A | 600 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP | -20°C ~ 100°C | 90% | - | - | Through Hole | 4.60" L x 2.40" W x 0.55" H (116.8mm x 61.0mm x 14.0mm) | - | - | - | - |
|
|
AIF120Y300N-LDC DC CONVERTER 1.8V 600W |
21 |
|
Технический лист |
AIF (600W) | Module | Bulk | Active | Isolated Module | 1 | 250V | 420V | 1.8V | - | - | - | 120A | 600 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP | -20°C ~ 100°C | 80% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | - | - | - | - |
|
|
AIF120F300N-LDC DC CONVERTER 3.3V 600W |
18 |
|
Технический лист |
AIF (600W) | Module | Bulk | Active | Isolated Module | 1 | 250V | 420V | 3.3V | - | - | - | 120A | 600 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP | -20°C ~ 100°C | 87% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | - | - | - | - |
|
|
PSA481-9IRDC DC CONVERTER 48V |
48 |
|
Технический лист |
Melcher PSA | 6-DIP Module | Bulk | Active | Non-Isolated PoL Module, Conformal Coated | 1 | 58V | 144V | 48V | - | - | - | 1A | - | - | ITE (Commercial), Railway | - | -40°C ~ 71°C | 95% | - | - | Through Hole | 2.76" L x 1.98" W x 0.99" H (70.2mm x 50.2mm x 25.2mm) | - | - | - | - |
|
|
PSA55-7RDC DC CONVERTER 5V |
40 |
|
Технический лист |
Melcher PSA | 6-DIP Module | Bulk | Active | Non-Isolated PoL Module, Conformal Coated | 1 | 7V | 35V | 5V | - | - | - | 5A | - | - | ITE (Commercial), Railway | - | -25°C ~ 71°C | 83% | - | - | Through Hole | 2.76" L x 1.98" W x 0.99" H (70.2mm x 50.2mm x 25.2mm) | - | - | - | - |
