DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC30-2403SFP-EDC DC CONVERTER 3.3V 30W |
30 |
|
Технический лист |
CC-P-E (30W) | 20-DIP Module, 17 Leads | Tray | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 9A | 30 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.51" L x 1.32" W x 0.33" H (38.4mm x 33.5mm x 8.3mm) | - | Enable, Active Low | - | - |
|

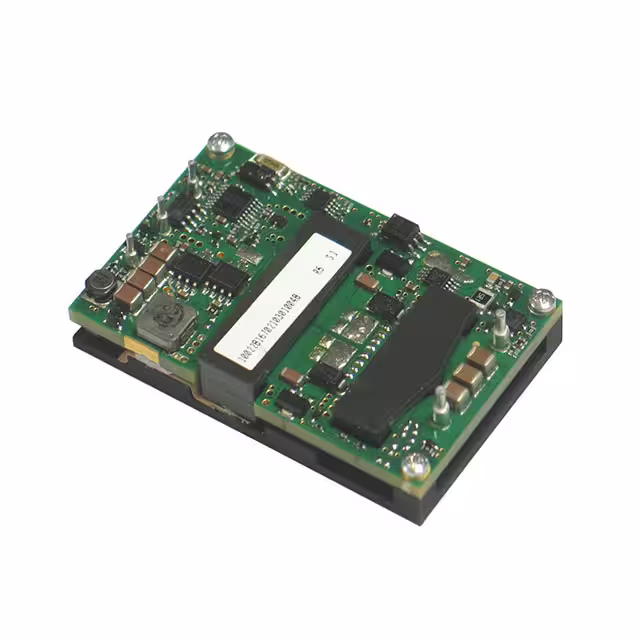

AVQ400-48S12-6LDC DC CONVERTER 12V 396W |
150 |
|
Технический лист |
AVQ400 (396W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | 2.28" L x 1.45" W x 0.37" H (57.9mm x 36.8mm x 9.5mm) | Quarter Brick | - | - | - |
|

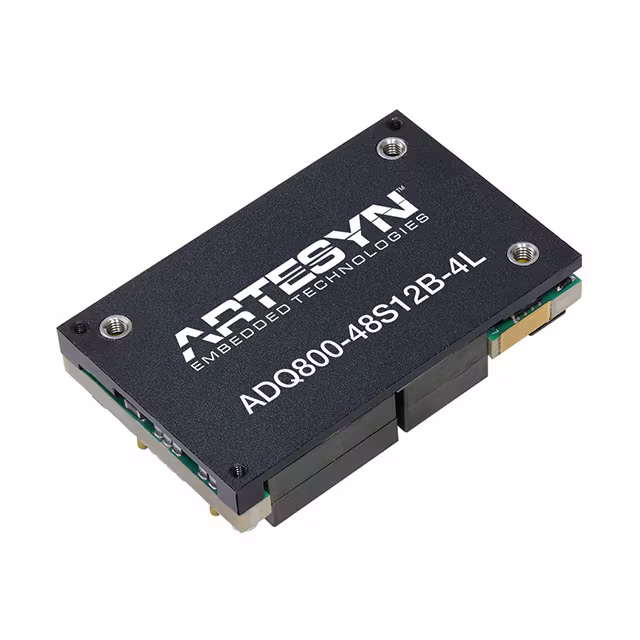

ADQ800-48S12B-4LDC DC CONVERTER 11.8V 826W |
150 |
|
Технический лист |
ADQ800 (800W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 40V | 60V | 11.8V | - | - | - | 70A | 826 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 96% | - | - | Through Hole | 2.30" L x 1.45" W x 0.54" H (58.4mm x 36.8mm x 13.6mm) | Quarter Brick | - | - | - |
|
PRC60-48-D12DC-DC, ISOLATED, 60 W, 18~75 VDC |
42 |
|
Технический лист |
PRC60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 2.5A, 2.5A | 60 W | 1.6 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | CE, UKCA | 62368-1 |
|
|
ECB40W18-72S15NIsolated DC/DC Converters 40W |
50 |
|
Технический лист |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ECB40W18-72S24NIsolated DC/DC Converters 40W |
50 |
|
Технический лист |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ECB40W18-72S54NIsolated DC/DC Converters 40W |
50 |
|
Технический лист |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ECB40W18-72S54Isolated DC/DC Converters 40W |
48 |
|
Технический лист |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ECB40W18-72S24Isolated DC/DC Converters 40W |
45 |
|
Технический лист |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

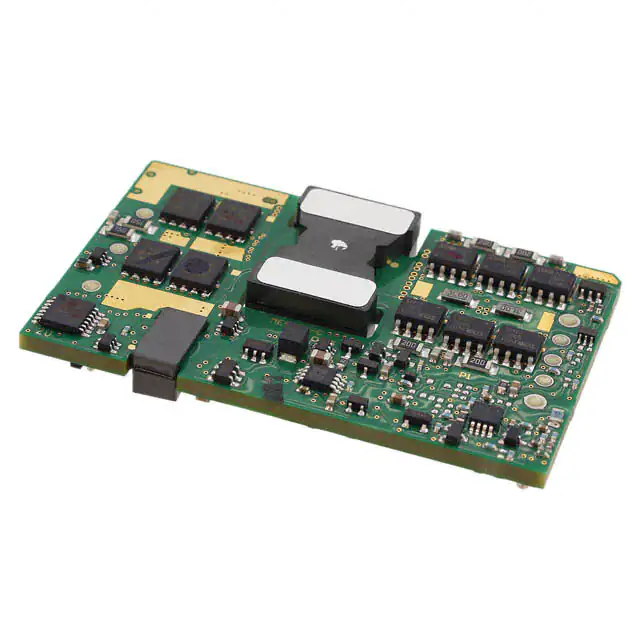

QME48T20120-NGB0GDC DC CONVERTER 12V 240W |
270 |
|
Технический лист |
QME | 8-DIP Module, 1/4 Brick | Bulk | Active | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 20A | 240 W | 2 kV | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | 2.30" L x 1.45" W x 0.48" H (58.4mm x 36.8mm x 12.2mm) | - | - | - | - |
|
|
QME48T40050-NGB0GDC DC CONVERTER 5V 200W |
259 |
|
Технический лист |
QME | 8-DIP Module, 1/4 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 40A | 200 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.30" L x 1.45" W x 0.44" H (58.4mm x 36.8mm x 11.3mm) | - | Enable, Active Low | - | - |
|
|
SQ24T15025-NBB0GDC DC CONVERTER 2.5V 38W |
144 |
|
Технический лист |
SemiQ™ SQ24 | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 2.5V | - | - | - | 15A | 38 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 86.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.27" H (58.4mm x 22.9mm x 7.0mm) | - | Enable, Active Low | - | - |
|
|
SQ24T15033-NBB0GDC DC CONVERTER 3.3V 50W |
143 |
|
Технический лист |
SemiQ™ SQ24 (50W) | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 15A | 50 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.30" L x 0.90" W x 0.27" H (58.4mm x 22.9mm x 7.0mm) | - | Enable, Active Low | - | - |
|
|
SQ24T15012-NBB0GDC DC CONVERTER 1.2V 18W |
143 |
|
Технический лист |
SemiQ™ SQ24 | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 1.2V | - | - | - | 15A | 18 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 81% | - | - | Through Hole | 2.30" L x 0.90" W x 0.27" H (58.4mm x 22.9mm x 7.0mm) | - | Enable, Active Low | - | - |
|
|
SQ24T08060-PBA0GDC DC CONVERTER 6V 48W |
136 |
|
Технический лист |
SemiQ™ SQ24 | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 6V | - | - | - | 8A | 48 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | 2.30" L x 0.90" W x 0.27" H (58.4mm x 22.9mm x 7.0mm) | - | Enable, Active High | - | - |
|
|
SQ24S05080-PS00GDC DC CONVERTER 8V 42W |
134 |
|
Технический лист |
SemiQ™ SQ24 | 8-SMD Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 8V | - | - | - | 5.3A | 42 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 85.5% | - | - | Surface Mount | 2.30" L x 0.90" W x 0.27" H (58.4mm x 22.9mm x 7.0mm) | - | Enable, Active High | - | - |
|
|
I7A24045A033V-0F3-RDC DC CONVERTER 3.3-18V 750W |
84 |
|
Технический лист |
i7A (750W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 18V | 32V | 3.3V ~ 18V | - | - | - | 45A | 810 W | - | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 98.5% | - | - | Through Hole | 1.45" L x 1.34" W x 0.98" H (36.8mm x 34.0mm x 24.9mm) | Sixteenth Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
I7A12060A008V-0F3-RDC DC CONVERTER 0.8-8V 400W |
28 |
|
Технический лист |
i7A (750W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 18V | 0.8 ~ 8V | - | - | - | 60A | 480 W | - | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 97% | - | - | Through Hole | 1.45" L x 1.34" W x 0.98" H (36.8mm x 34.0mm x 24.9mm) | Sixteenth Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|

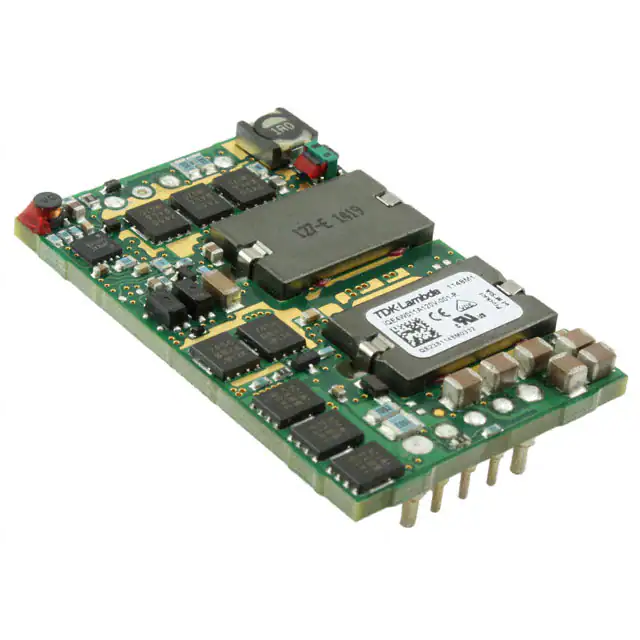

IQE4W011A120V-001-RDC DC CONVERTER 12V 132W |
62 |
|
Технический лист |
iQE (204W) | 8-DIP Module | Bulk | Active | Intermediate Bus Converter | 1 | 18V | 60V | 12V | - | - | - | 11A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 125°C | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.39" H (57.9mm x 36.8mm x 9.9mm) | - | Enable, Active Low | - | - |
|
RP30-2415SFDC DC CONVERTER 15V 30W |
146 |
|
Технический лист |
POWERLINE RP30-F (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 2A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
