DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM4606IYDC DC CONVERTER 0.6-5V 30W |
70 |
|
Технический лист |
µModule® | 133-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5V | - | - | - | 6A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 125°C | 93% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.13" H (15.0mm x 15.0mm x 3.4mm) | 133-BGA (15x15) | - | - | - |
|
LTM4686BIV#PBFULTRATHIN DUAL 14A OR SINGLE 28A |
199 |
|
Технический лист |
LTM®, uModule® | 108-LGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.75V | 0.5 ~ 3.6V | - | - | - | 17A | - | - | ITE (Commercial) | Adjustable Output, Load Sharing, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.47" W x 0.07" H (16.0mm x 11.9mm x 1.82mm) | 108-LGA (16x11.9) | - | - | - |
|
AXA02B36-LDC DC CONVERTER 12V 25W |
101 |
|
Технический лист |
AXA (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 2.09A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TRI 6-1222DC DC CONVERTER +/-12V 6W |
27 |
|
Технический лист |
TRI 6 (6W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 9 kV | ITE (Commercial) | - | -40°C ~ 95°C | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.47" H (31.8mm x 20.3mm x 12.0mm) | - | - | CB, cURus | - |
|
|
LTM4601AHVEY#PBFDC DC CONVERTER 0.6-5V |
91 |
|
Технический лист |
µModule® | 133-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5V | - | - | - | 12A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.13" H (15.0mm x 15.0mm x 3.4mm) | 133-BGA (15x15) | - | - | - |
|

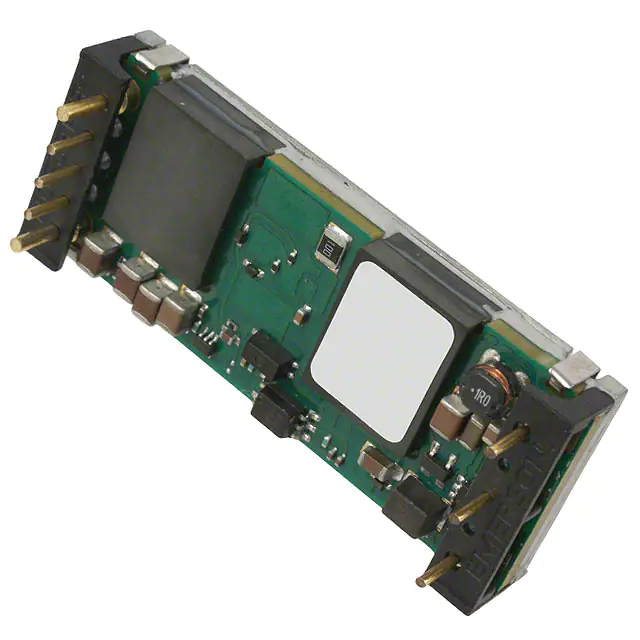

AEO20A48N-LDC DC CONVERTER 5V 120W |
197 |
|
Технический лист |
AEO40 (100W) | 8-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 120 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 100°C | 92% | - | - | Through Hole | 2.30" L x 0.90" W x 0.40" H (58.4mm x 22.9mm x 10.2mm) | - | - | - | - |
|
AVD200-48S12-6L12V 200W SIXTEENTH BRICK |
190 |
|
Технический лист |
AVD200-48S12 (200W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 17A | 204 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 93.9% | - | - | Through Hole | 1.30" L x 0.90" W x 0.44" H (33.0mm x 22.9mm x 11.1mm) | Sixteenth Brick | - | CE, CSA, TUV, UL | 62368-1 |
|
LTM4675IYDC DC CNVRTR 0.5-5.5V 0.5-5.5V |
411 |
|
Технический лист |
µModule® | 108-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 17V | 0.5 ~ 5.5V | 0.5 ~ 5.5V | - | - | 9A, 9A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.47" W x 0.14" H (16.0mm x 12.0mm x 3.5mm) | 108-BGA (16x11.9) | - | - | - |
|
UEI30-150-Q12P-CDC DC CONVERTER 15V 30W |
273 |
|
Технический лист |
UEI30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 87.5% | - | - | Through Hole | 1.92" L x 0.92" W x 0.35" H (48.8mm x 23.4mm x 8.9mm) | - | Enable, Active High | - | - |
|
THN 20-4822DC DC CONVERTER +/-12V 20W |
57 |
|
Технический лист |
THN 20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 75°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
MTWA4-12S24DC/DC CONVERTER 4 WATTS MEDICAL |
30 |
|
Технический лист |
MTWA4 (3.5W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 146mA | 3.5 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | - | CB, UL | - |
|
THR 20-2412WI20 WATT DC/DC CONVERTER, INDUSTR |
29 |
|
Технический лист |
THR 20WI (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.43" H (50.8mm x 25.4mm x 11.0mm) | - | - | CB, cURus | 62368-1 |
|
|
PRC10W-72-D15DC-DC ISOLATED, 10 W, 8.5~160 VD |
28 |
|
Технический лист |
PRC10W (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 8.5V | 160V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 4.2 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | - | CB, cURus, EN, IEC, UKCA, UL | 62368-1 |
.jpg)
|
REC6-0505SRW/R10/ADC DC CONVERTER 5V 6W |
30 |
|
Технический лист |
ECONOLINE REC6/R (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1A | 6 W | 10 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 77% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TON 15-2413WIDC DC CONVERTER 15V 15W |
60 |
|
Технический лист |
TON 15WI (15W) | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1A | 15 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.10" L x 0.94" W x 0.33" H (27.9mm x 23.9mm x 8.5mm) | - | - | - | - |
|
|
AVD200-48S12P-6L12V 200W SIXTEENTH BRICK |
78 |
|
Технический лист |
AVD200-48S12 (200W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 17A | 204 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 93.9% | - | - | Through Hole | 1.30" L x 0.90" W x 0.44" H (33.0mm x 22.9mm x 11.1mm) | Sixteenth Brick | - | CE, CSA, TUV, UL | 62368-1 |
|

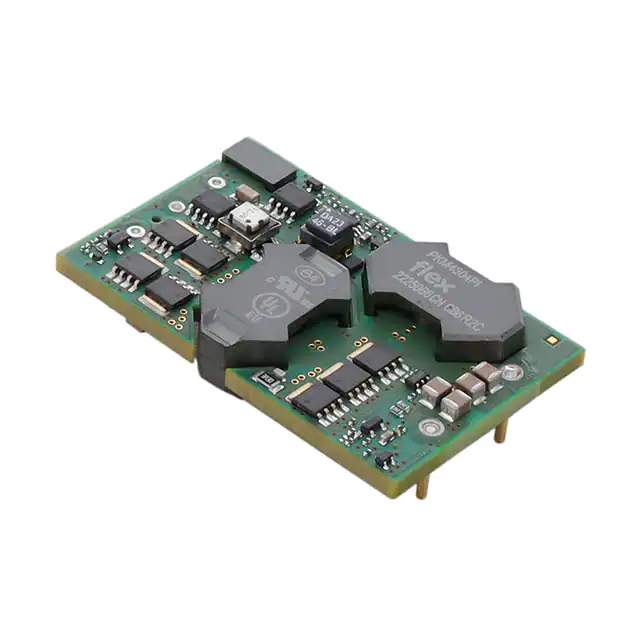

PKM4304PIDC DC CONVERTER 12V 396W |
45 |
|
Технический лист |
PKM 4304 (396W) | Quarter Brick | Tray | Active | Intermediate Bus Converter | 1 | 40V | 75V | 12V | - | - | - | 33A | 396 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 90°C (With Derating) | 96.7% | - | - | Through Hole | 2.28" L x 1.45" W x 0.46" H (57.9mm x 36.8mm x 11.6mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
2DD151008CDC DC CONVERTER 15V -10V 4W |
120 |
|
Технический лист |
- | 10-DIP Module | Bulk | Active | Isolated Module | 2 | 13.5V | 26.4V | 15V | -10V | - | - | 160mA, 160mA | 4 W | 5 kV | Industrial | - | -40°C ~ 85°C (With Derating) | 80.5% | - | - | Through Hole | 1.65" L x 1.57" W x 0.49" H (42.0mm x 40.0mm x 12.5mm) | - | - | - | - |
|
|
2DD180206CDC DC CONVERTER 18V -2V 3.2W |
29 |
|
Технический лист |
- | 10-DIP Module | Bulk | Active | Isolated Module | 2 | 13.5V | 26.4V | 18V | -2V | - | - | 160mA, 160mA | 3.2 W | 5 kV | Industrial | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 1.65" L x 1.57" W x 0.49" H (42.0mm x 40.0mm x 12.5mm) | - | - | - | - |
|
LTM4643MPV#PBFDC DC CONVERTER 3X0.6-3.3V |
56 |
|
Технический лист |
µModule® | 77-LGA Module | Tray | Active | Non-Isolated PoL Module | 4 | 4V | 20V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | - | 3A, 3A, 3A, 3A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -55°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.07" H (15.0mm x 9.0mm x 1.8mm) | 77-LGA (15x9) | - | - | - |
