DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RI-1205SDC DC CONVERTER 5V 2W |
541 |
|
Технический лист |
ECONOLINE RI (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
RI-1215SDC DC CONVERTER 15V 2W |
301 |
|
Технический лист |
ECONOLINE RI (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
ROM-0505S/PDC DC CONVERTER 5V 1W |
809 |
|
Технический лист |
ECONOLINE ROM (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.45" L x 0.24" W x 0.30" H (11.5mm x 6.1mm x 7.7mm) | - | - | - | - |
|
R1S-0505/HDC DC CONVERTER 5V 1W |
2,877 |
|
Технический лист |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
RD-2412DDC DC CONVERTER +/-12V 2W |
234 |
|
Технический лист |
ECONOLINE RD (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 84mA, 84mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
LMZM33602RLRRDC DC CONVERTER 1-18V |
1,495 |
|
Технический лист |
- | 18-PowerBQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 1 ~ 18V | - | - | - | 2A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 105°C | 94% | - | - | Surface Mount | 0.35" L x 0.28" W x 0.16" H (9.0mm x 7.0mm x 4.1mm) | 18-B2QFN (9x7) | - | - | - |
|
R1S-1515/HDC DC CONVERTER 15V 1W |
221 |
|
Технический лист |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 66mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 82% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
RS3K-2405SZ/H33W DC/DC-CONVERTER 'ECONOLINE' S |
150 |
|
Технический лист |
ECONOLINE RS3K-Z (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CB, cURus | 62368-1 |
|

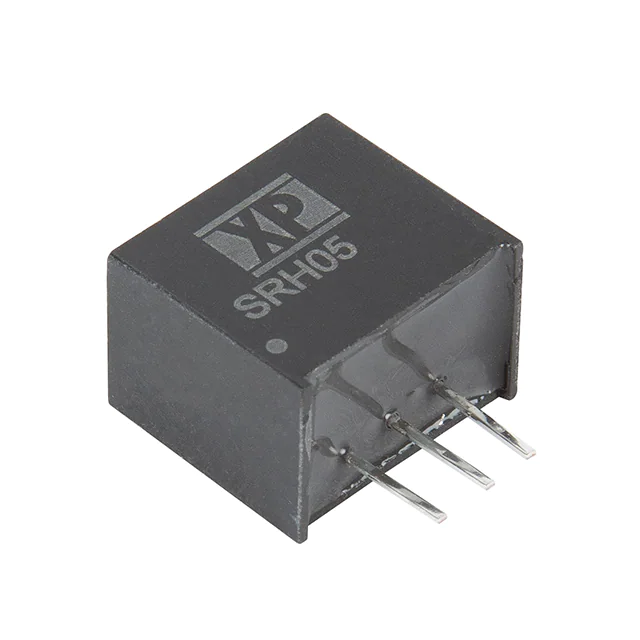

SRH05S05DC DC CONVERTER 5V |
4,146 |
|
Технический лист |
SRH05 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 9V | 72V | 5V | - | - | - | 500mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | 3-SIP Module | - | - | - |
|
LMZ10504TZ-ADJ/NOPBDC DC CONVERTER 0.8-5V |
1,769 |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 5.5V | 0.8 ~ 5V | - | - | - | 4A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 96% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | - | - | - |
|
|
R1S-3.33.3-RDC DC CONVERTER 3.3V 1W |
1,440 |
|
Технический лист |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 75% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
R1S-2405DC DC CONVERTER 5V 1W |
457 |
|
Технический лист |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
LMZ10503TZE-ADJ/NOPBDC DC CONVERTER 0.8-5V |
5,352 |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tube | Active | Non-Isolated PoL Module | 1 | 2.95V | 5.5V | 0.8 ~ 5V | - | - | - | 3A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 96% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|
APXS003A0X-SRZDC DC CONVERTER 0.6-5.5V 16W |
1,061 |
|
Технический лист |
PicoTLynx™ | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.6 ~ 5.5V | - | - | - | 3A | 16 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.25" H (12.2mm x 12.2mm x 6.3mm) | - | Enable, Active Low | - | - |
|
TSM 0505SDC DC CONVERTER 5V 1W |
1,060 |
|
Технический лист |
TSM (1W) | 14-SMD Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.50" L x 0.31" W x 0.32" H (12.7mm x 8.0mm x 8.1mm) | - | - | - | - |
|
|
ROM-0505SDC DC CONVERTER 5V 1W |
332 |
|
Технический лист |
ECONOLINE ROM (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.45" L x 0.24" W x 0.30" H (11.5mm x 6.1mm x 7.7mm) | - | - | - | - |
|
|
R1S-3.33.3/H-RDC DC CONVERTER 3.3V 1W |
4,688 |
|
Технический лист |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 3V | 3.6V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 75% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
171031801DC DC CONVERTER 0.8V-17V |
2,577 |
|
Технический лист |
MagI³C, VDLM | 16-PowerBELGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 18V | 0.8V ~ 17V | - | - | - | 3A | - | - | Medical | OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.35" L x 0.35" W x 0.12" H (9.0mm x 9.0mm x 3.0mm) | 16-LGA-EP (9x9) | - | - | - |
|
|
171011801DC DC CONVERTER 0.8V-17V |
1,100 |
|
Технический лист |
MagI³C, VDLM | 16-PowerBELGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 18V | 0.8V ~ 17V | - | - | - | 1A | - | - | Medical | OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.35" L x 0.35" W x 0.12" H (9.0mm x 9.0mm x 3.0mm) | 16-LGA-EP (9x9) | - | - | - |
|
SPAN02E-12DC DC CONVERTER 12V 2W |
1,905 |
|
Технический лист |
SPAN02 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
