DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VAWQ3-Q24-S12HDC DC CONVERTER 12V 3W |
691 |
|
Технический лист |
VAWQ3 (3W) | 24-DIP Module, 15 Leads | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 76% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
PTN78060WAZTDC DC CONVERTER 2.5-12.6V |
421 |
|
Технический лист |
PTN78060W | 7-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 7V | 36V | 2.5 ~ 12.6V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 1.00" L x 0.62" W x 0.38" H (25.4mm x 15.7mm x 9.7mm) | - | - | - | - |
|

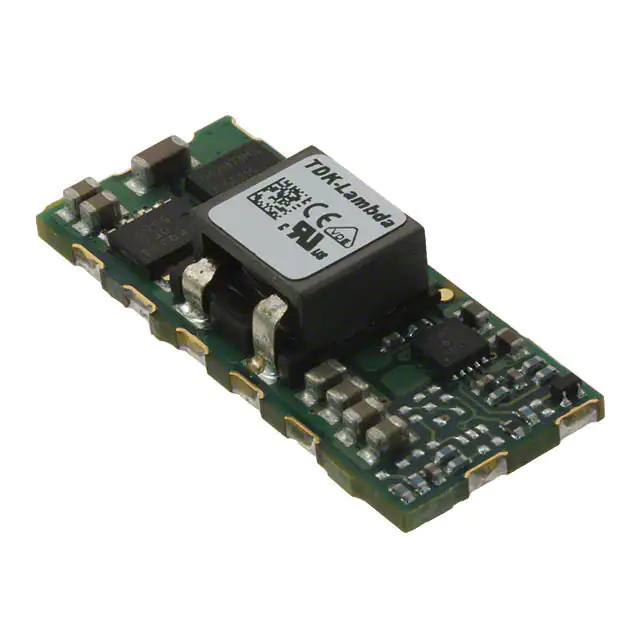

IAF12020A007V-003-RDC DC CONVERTER 0.7-5.5V 110W |
243 |
|
Технический лист |
iAF (110W) | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 5.5V | - | - | - | 20A | 110 W | - | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 115°C | 95% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.31" H (33.0mm x 13.5mm x 7.8mm) | - | Enable, Active Low | - | - |
|
RSO-1205DDC DC CONVERTER +/-5V 1W |
400 |
|
Технический лист |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
NMS0505CDC DC CONVERTER +/-5V 2W |
6,322 |
|
Технический лист |
NMS (2W) | 24-DIP Module (600 mil, 14 Leads) | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 6 kV | ITE (Commercial) | - | 0°C ~ 70°C | 74% | - | - | Through Hole | 1.28" L x 0.58" W x 0.37" H (32.5mm x 14.7mm x 9.4mm) | - | - | - | - |
|
NMS1205CDC DC CONVERTER +/-5V 2W |
2,349 |
|
Технический лист |
NMS (2W) | 24-DIP Module (600 mil, 14 Leads) | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 6 kV | ITE (Commercial) | - | 0°C ~ 70°C | 78% | - | - | Through Hole | 1.28" L x 0.58" W x 0.37" H (32.5mm x 14.7mm x 9.4mm) | - | - | - | - |
|
|
RSO-1205SZDC DC CONVERTER 5V 1W |
662 |
|
Технический лист |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
DCV012415DP-UDC DC CONVERTER +/-15V 1W |
135 |
|
Технический лист |
DCV01 (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 76% | - | - | Surface Mount | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | - | Enable, Active High | - | - |
|
MGS61205DC DC CONVERTER 5V |
336 |
|
Технический лист |
MGS (6W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.2A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
|
MGS64812DC DC CONVERTER 12V |
144 |
|
Технический лист |
MGS (6W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 500mA | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
RS-2405S/H3DC DC CONVERTER 5V 2W |
564 |
|
Технический лист |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TRN 3-0515DC DC CONVERTER 24V 3W |
226 |
|
Технический лист |
TRN 3 (3W) | 5-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 24V | - | - | - | 125mA | 3 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm) | - | - | - | - |
|
PTH12060WASDC DC CONVERTER 1.2-5.5V 55W |
39 |
|
Технический лист |
PTH12060 | 10-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.99" L x 0.62" W x 0.38" H (25.3mm x 15.8mm x 9.6mm) | - | - | - | - |
|
PTH05060WAHDC DC CONVERTER 0.8-3.6V 10A |
149 |
|
Технический лист |
PTH05060W | 10-DIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 10A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 94% | - | - | Through Hole | 1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm) | - | - | - | - |
|
EC6AW-24S05DC DC CONVERTER 5V 8W |
8,568 |
|
Технический лист |
EC6AW (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.6A | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | CE | 50155; 60950-1 |
|
|
EC6AW-24S12DC DC CONVERTER 12V 8W |
1,911 |
|
Технический лист |
EC6AW (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 666mA | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | CE | 50155; 60950-1 |
|
THL 3-2411WIDC DC CONVERTER 5V 3W |
120 |
|
Технический лист |
THL 3WI (3W) | 16-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
|
RSO-2405SZ/H2DC DC CONVERTER 5V 1W |
30 |
|
Технический лист |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
REM2-0505DDC DC CONVERTER +/-5V 2W |
429 |
|
Технический лист |
MEDLINE REM2 (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 5.2 kV | ITE (Commercial), Medical | OCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | 0.91" L x 0.31" W x 0.48" H (23.0mm x 8.0mm x 12.2mm) | - | - | CB, cURus | - |
|
|
RSO-2415DZDC DC CONVERTER +/-15V 1W |
169 |
|
Технический лист |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
