DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATA00AA18-LDC DC CONVERTER +/-5V 3W |
1,218 |
|
Технический лист |
ATA (3W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm) | - | - | - | - |
|
R05P09S/PDC DC CONVERTER 9V 1W |
441 |
|
Технический лист |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
DCP022405DUDC DC CONVERTER +/-5V 2W |
91 |
|
Технический лист |
DCP02 (2W) | 28-SOIC (0.295", 7.50mm Width), 12 Leads | Bulk | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.71" L x 0.30" W x 0.10" H (18.1mm x 7.6mm x 2.7mm) | 12-SOP | - | - | - |
|

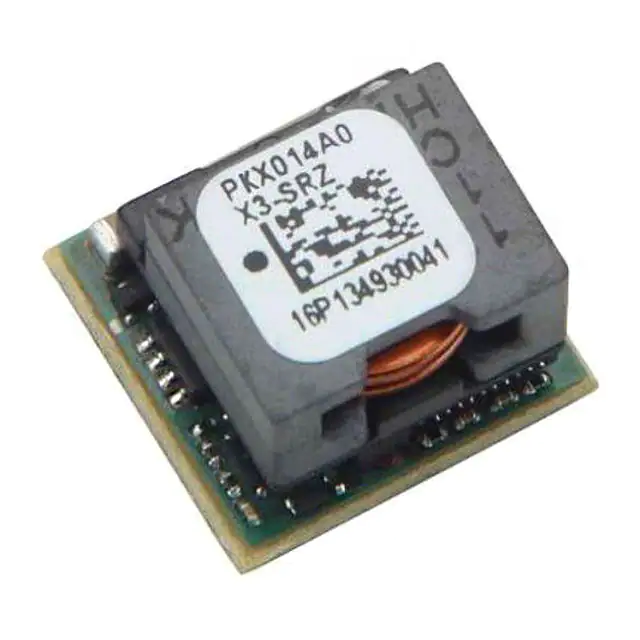

PKX014A0X3-SRZDC DC CONVERTER 0.6-5.5V |
178 |
|
Технический лист |
PicoDLynx™ II | 17-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14.4V | 0.6 ~ 5.5V | - | - | - | 14A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95.2% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.33" H (12.2mm x 12.2mm x 8.5mm) | Module | Enable, Active Low | - | - |
|
R24P205SDC DC CONVERTER 5V 2W |
104 |
|
Технический лист |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
MGS31215DC DC CONVERTER 15V |
501 |
|
Технический лист |
MGS (3W) | 4-SIP Module | Box | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 200mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|
|
MGS31205DC DC CONVERTER 5V |
146 |
|
Технический лист |
MGS (3W) | 4-SIP Module | Box | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|
SUCW1R50515CDC DC CONVERTER +/-15V |
809 |
|
Технический лист |
SUCW (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 50mA, 50mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 70% | - | - | Through Hole | 0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm) | - | - | - | - |
|
|
SUCW1R52415CDC DC CONVERTER +/-15V |
588 |
|
Технический лист |
SUCW (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 50mA, 50mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | 0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm) | - | - | - | - |
|
TRV 1-1212MDC DC CONVERTER 12V 996MW |
158 |
|
Технический лист |
TRV 1M (1W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9.6V | 14.4V | 12V | - | - | - | 83mA | 996 mW | 5 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | - |
|
|
TRV 1-1210MDC DC CONVERTER 3.3V 1W |
140 |
|
Технический лист |
TRV 1M (1W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9.6V | 14.4V | 3.3V | - | - | - | 303mA | 1 W | 5 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | - |
|
SD02D2412ADC DC CONVERTER +/-12V 2W |
212 |
|
Технический лист |
SD02S/D (2W) | 16-SMD Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | Medical | SCP, UVLO | -40°C ~ 85°C | 78% | - | - | Surface Mount | 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm) | - | - | - | - |
|
RP-2415S/PDC DC CONVERTER 15V 1W |
745 |
|
Технический лист |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 66mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
TEC 3-2411WIDC DC CONVERTER 5V 3W |
102 |
|
Технический лист |
TEC 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
R24P05S/PDC DC CONVERTER 5V 1W |
367 |
|
Технический лист |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
TEN 3-2410WINDC DC CONVERTER 3.3V 2.5W |
116 |
|
Технический лист |
TEN 3WIN (3W) | 23-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 750mA | 2.5 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cCSAus | - |
|
IM4812SDC DC CONVERTER +/-12V 2W |
218 |
|
Технический лист |
IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 85mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 81% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm) | - | Enable, Active Low | - | 62368-1 |
.jpg)
|
DCR021205PDC DC CONVERTER 5V 2W |
46 |
|
Технический лист |
DCR02 (2W) | 18-DIP Module, 10 Leads | Bulk | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 70°C | - | - | - | Through Hole | 0.90" L x 0.28" W x 0.21" H (22.9mm x 7.1mm x 5.3mm) | - | - | - | - |
|
TMR 2-2410WINDC DC CONVERTER 3.3V 1.7W |
105 |
|
Технический лист |
TMR 2WIN (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 500mA | 1.7 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 90°C (With Derating) | 75% | - | - | Through Hole | 0.86" L x 0.44" W x 0.37" H (21.8mm x 11.2mm x 9.3mm) | - | - | - | - |
|

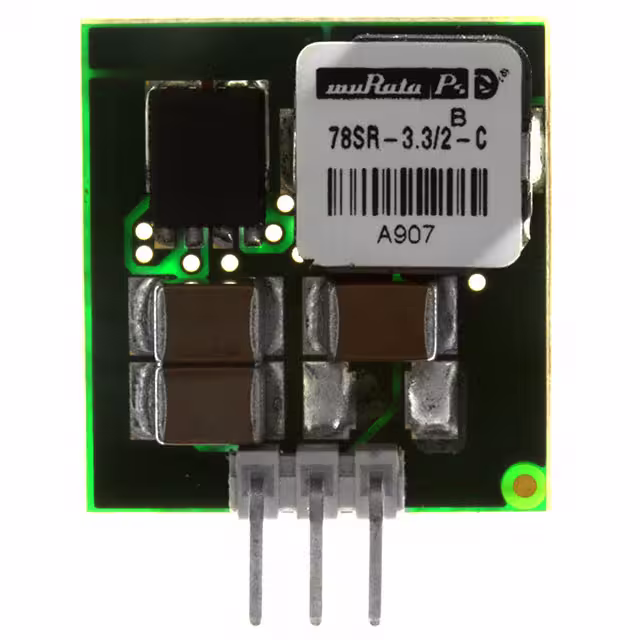

78SR-3.3/2-CDC DC CONVERTER 3.3V 6W |
173 |
|
Технический лист |
78SR | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 8V | 32V | 3.3V | - | - | - | 2A | 6 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 70°C | - | - | - | Through Hole | 0.80" L x 0.33" W x 0.85" H (20.3mm x 8.4mm x 21.6mm) | - | - | - | - |
