DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2S7WA_0505S3RPISOLATED MODULE DC DC CONVERTERS |
105 |
|
Технический лист |
2S7WA_3RP (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|
APTH003A0X-SRZDC DC CONVERTER 0.6-3.6V 10W |
923 |
|
Технический лист |
PicoTLynx™ | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.6 ~ 3.6V | - | - | - | 3A | 10 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.25" H (12.2mm x 12.2mm x 6.3mm) | - | Enable, Active Low | - | - |
|
1S7BE_2412S6UISOLATED MODULE DC DC CONVERTERS |
124 |
|
Технический лист |
1S7B_6U (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 22.8V | 25.2V | 12V | - | - | - | 84mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|

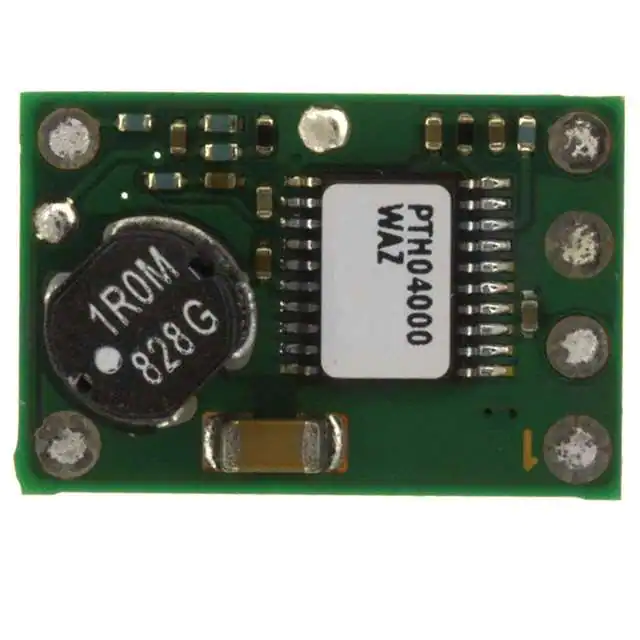

PTH04000WAZTDC DC CONVERTER 0.9-3.6V |
316 |
|
Технический лист |
PTH04000W | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 5.5V | 0.9 ~ 3.6V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
RN-2412SDC DC CONVERTER 12V 1.25W |
287 |
|
Технический лист |
ECONOLINE RN (1.25W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 104mA | 1.25 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.50" L x 0.40" W x 0.30" H (12.8mm x 10.1mm x 7.6mm) | - | - | - | - |
|
RH-0515DDC DC CONVERTER +/-15V 1W |
207 |
|
Технический лист |
ECONOLINE RH (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 90°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
RD-1205DDC DC CONVERTER +/-5V 2W |
129 |
|
Технический лист |
ECONOLINE RD (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RN-1515SDC DC CONVERTER 15V 1.25W |
102 |
|
Технический лист |
ECONOLINE RN (1.25W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 84mA | 1.25 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.50" L x 0.40" W x 0.30" H (12.8mm x 10.1mm x 7.6mm) | - | - | - | - |
|
RNM-3.305S/PDC DC CONVERTER 5V 1W |
196 |
|
Технический лист |
ECONOLINE RNM (1W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.33" L x 0.33" W x 0.27" H (8.3mm x 8.3mm x 6.8mm) | - | - | - | - |
|
PC02S1215ADC DC CONVERTER 15V 2W |
600 |
|
Технический лист |
PC02S/D (2W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 133mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
R1D-1212-RDC DC CONVERTER +/-12V 1W |
443 |
|
Технический лист |
ECONOLINE R1D (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm) | - | - | - | - |
|
MTU2S0505MCDC DC CONVERTER 5V 2W |
150 |
|
Технический лист |
MTU2 (2W) | 6-SMD Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Surface Mount | 0.33" L x 0.32" W x 0.34" H (8.4mm x 8.2mm x 8.5mm) | - | - | - | - |
|
|
MTU2S0524MCDC DC CONVERTER 24V 2W |
141 |
|
Технический лист |
MTU2 (2W) | 6-SMD Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 83mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Surface Mount | 0.33" L x 0.32" W x 0.34" H (8.4mm x 8.2mm x 8.5mm) | - | - | - | - |
|
RBM-1212DDC DC CONVERTER +/-12V 1W |
506 |
|
Технический лист |
ECONOLINE RBM (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 41mA, 41mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.65" L x 0.24" W x 0.30" H (16.5mm x 6.0mm x 7.7mm) | - | - | - | - |
|
3S7A_1209S1UISOLATED MODULE DC DC CONVERTERS |
116 |
|
Технический лист |
3S7A_1U (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 333mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|
R-782.5-1.0DC DC CONVERTER 2.5V 3W |
130 |
|
Технический лист |
INNOLINE R-78-1.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 18V | 2.5V | - | - | - | 1A | 3 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
|
3S7A_0512D1UISOLATED MODULE DC DC CONVERTERS |
122 |
|
Технический лист |
3S7A_1U (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|
LMP78_15-1.0RNON-ISOLATED POL MODULE DC DC CO |
1,092 |
|
Технический лист |
LMP78_1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 17V | 42V | 15V | - | - | - | 1A | 15 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 97% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | - | - | - | - |
|

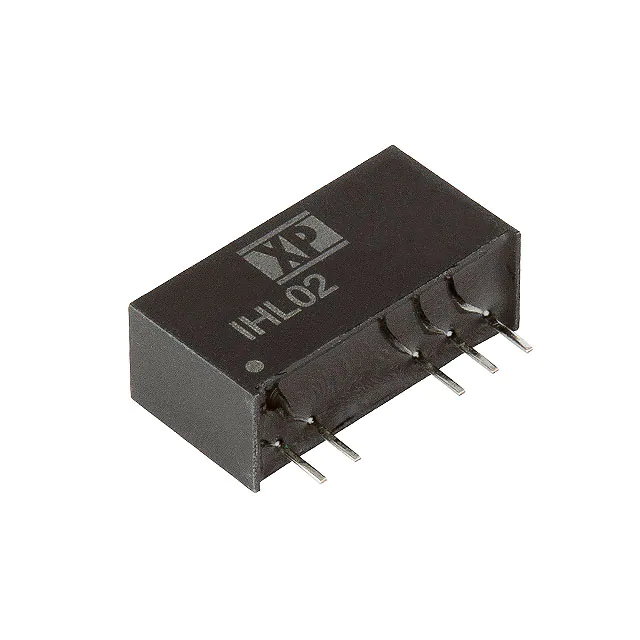

IHL0212S15DC DC CONVERTER 15V 2W |
131 |
|
Технический лист |
IHL02 (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 133mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C | 83% | - | - | Through Hole | 0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm) | - | - | - | - |
|
|
R1D-1205-RDC DC CONVERTER +/-5V 1W |
403 |
|
Технический лист |
ECONOLINE R1D (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm) | - | - | - | - |
