DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MUN12AD03-SECDC DC CONVERTER 0.8-5.5V |
54,351 |
|
Технический лист |
- | 8-LDFN Exposed Pad Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 17V | 0.8 ~ 5.5V | - | - | - | 3A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C (With Derating) | 91% | - | - | Surface Mount | 0.12" L x 0.11" W x 0.05" H (3.0mm x 2.8mm x 1.3mm) | 8-DFN (3x2.8) | Enable, Active High | - | - |
|

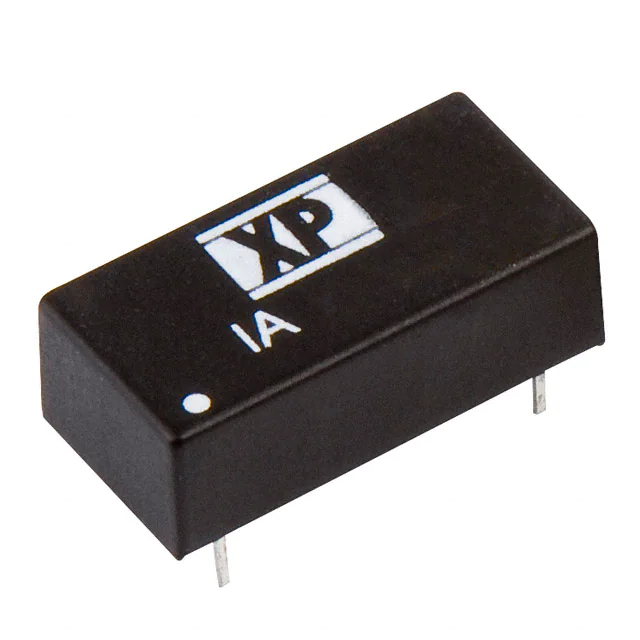

IA0512DDC DC CONVERTER +/-12V 1W |
927 |
|
Технический лист |
IA (1W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.80" L x 0.40" W x 0.25" H (20.3mm x 10.2mm x 6.4mm) | - | - | - | 62368-1 |
|
|
IA1215DDC DC CONVERTER +/-15V 1W |
591 |
|
Технический лист |
IA (1W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.80" L x 0.40" W x 0.25" H (20.3mm x 10.2mm x 6.4mm) | - | - | - | 62368-1 |
|
|
IA0509DDC DC CONVERTER +/-9V 1W |
115 |
|
Технический лист |
IA (1W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 55mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.80" L x 0.40" W x 0.25" H (20.3mm x 10.2mm x 6.4mm) | - | - | - | 62368-1 |
|
TMA 2415SDC DC CONVERTER 15V 1W |
248 |
|
Технический лист |
TMA (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|

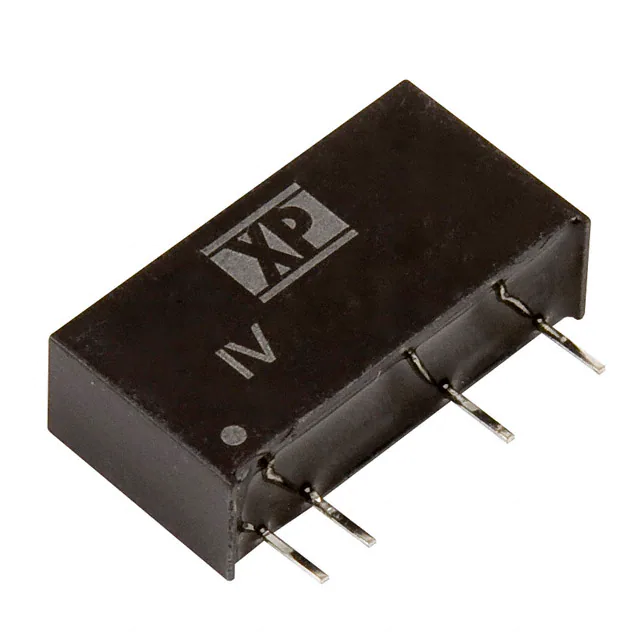

IV0509SADC DC CONVERTER 9V 1W |
423 |
|
Технический лист |
IV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 112mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | 62368-1 |
|
|
IV2405SADC DC CONVERTER 5V 1W |
392 |
|
Технический лист |
IV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | 62368-1 |
|
1S4E_4805S1UISOLATED MODULE DC DC CONVERTERS |
207 |
|
Технический лист |
1S4E_S1U (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 43.2V | 52.8V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | CE | 60950-1 |
|
|
1S4E_4812S1UISOLATED MODULE DC DC CONVERTERS |
174 |
|
Технический лист |
1S4E_S1U (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 43.2V | 52.8V | 12V | - | - | - | 100mA | 1.2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | CE | 60950-1 |
|
3S7B_0512S3UISOLATED MODULE DC DC CONVERTERS |
116 |
|
Технический лист |
3S7B_3U (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|

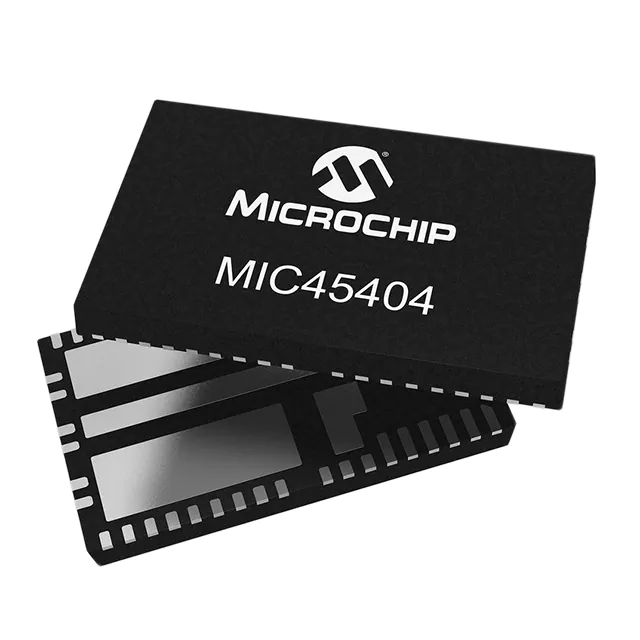

MIC45404YMP-TRDC DC CNVRTR 0.7-1.0V 1.2V 1.5V |
214 |
|
Технический лист |
- | 54-PowerBFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 19V | 0.7 ~ 1.0V, 1.2V, 1.5V, 1.8V, 2.49V, 3.3V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | 82% | - | - | Surface Mount | 0.39" L x 0.24" W x 0.08" H (10.0mm x 6.0mm x 2.0mm) | 54-P2QFN (10x6) | - | - | - |
|
3S7A_0512S1.5UPISOLATED MODULE DC DC CONVERTERS |
1,996 |
|
Технический лист |
3S7A_1.5UP (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 0.77" L x 0.30" W x 0.39" H (19.5mm x 7.5mm x 10.0mm) | - | - | CE | - |
|
|
3S7A_0515S1.5UPISOLATED MODULE DC DC CONVERTERS |
148 |
|
Технический лист |
3S7A_1.5UP (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 0.77" L x 0.30" W x 0.39" H (19.5mm x 7.5mm x 10.0mm) | - | - | CE | - |
|
0.1MS4A_0303S1.5UPISOLATED MODULE DC DC CONVERTERS |
160 |
|
Технический лист |
0.1MS4A_1.5UP (0.1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.6V | 3.3V | - | - | - | 30.3mA | 100 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 58% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | CE | - |
|
EPM78V2-12R0-01R0RSWITCH REG DCDC CONV 1000MA 12V |
109 |
|
Технический лист |
- | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 15V | 32V | 12V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 90°C (With Derating) | 95% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
3S7B_0509D3UISOLATED MODULE DC DC CONVERTERS |
136 |
|
Технический лист |
3S7B_3U (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 166mA, 166mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|
|
1769405341WPME-FISM FIXED ISOLATED SIP/SMT |
366 |
|
Технический лист |
MagI³C, FISM | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 4 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | 8-SMT (13.2x8.5) | - | cURus | 62368-1 |
|
RO-0515SDC DC CONVERTER 15V 1W |
841 |
|
Технический лист |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
RO-0512SDC DC CONVERTER 12V 1W |
494 |
|
Технический лист |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
RO-1209SDC DC CONVERTER 9V 1W |
261 |
|
Технический лист |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
