DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PUB0505S1MDC DC CONVERTER 5V 1W |
11,454 |
|
Технический лист |
PUB-1M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 110°C (With Derating) | 76% | - | - | Surface Mount | 0.50" L x 0.44" W x 0.26" H (12.8mm x 11.2mm x 6.6mm) | - | - | cURus, IEC, UL | 62368-1 |
|
2S7BE_0312S3UISOLATED MODULE DC DC CONVERTERS |
380 |
|
Технический лист |
2S7BE_3U (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 12V | - | - | - | 166.7mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cURus | 60950-1 |
|
EC1SA01NSDC DC CONVERTER 5V 1W |
207 |
|
Технический лист |
EC1SAN (1W) | 8-SMD Module, 6 Leads | Strip | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.54" L x 0.36" W x 0.30" H (13.7mm x 9.2mm x 7.4mm) | - | - | CE | - |
|
EC1SA24NDC DC CONVERTER +/-12V 1W |
154 |
|
Технический лист |
EC1SAN (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm) | - | - | CE | - |
|
MIC38150HYHL-TRDC DC CONVERTER 1-5V |
1,367 |
|
Технический лист |
HELDO™ | 28-PowerVFQFN Module, 28-MLF® | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 5.5V | 1 ~ 5V | - | - | - | 1.5A | - | - | ITE (Commercial) | OCP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.24" L x 0.16" W x 0.04" H (6.0mm x 4.0mm x 0.9mm) | 28-MLF® (6x4) | - | - | - |
|
EPM6242V-05R-100DRDC DC CONV 1W 24VIN 5VOUT 100MA |
1,203 |
|
Технический лист |
EPM6-2V (1W) | 7-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | 62368-1 |
|
|
EPM6052V-05R-100DRDC DC CONV 1W 5VIN 5VOUT 100MA |
366 |
|
Технический лист |
EPM6-2V (1W) | 7-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 77% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | 62368-1 |
|
|
EPM6242V-12R-042DRDC DC CONV 1W 24VIN 12VOUT 42MA |
356 |
|
Технический лист |
EPM6-2V (1W) | 7-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | 62368-1 |
|
|
EPM6122V-05R-100DRDC DC CONV 1W 12VIN 5VOUT 100MA |
342 |
|
Технический лист |
EPM6-2V (1W) | 7-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 76% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | 62368-1 |
|
MPM3606GQV-PDC DC CONVERTER 0.8-5.5V |
605 |
|
Технический лист |
- | 20-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 21V | 0.8 ~ 5.5V | - | - | - | 600mA | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 20-QFN (3x5) | Enable, Active High | - | - |
|
|
EPM6242V-05R-200SRDC DC CONV 1W 24VIN 5VOUT 200MA |
349 |
|
Технический лист |
EPM6-2V (1W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | 62368-1 |
|
|
EC1SA14NDC DC CONVERTER +/-12V 1W |
114 |
|
Технический лист |
EC1SAN (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm) | - | - | CE | - |
|

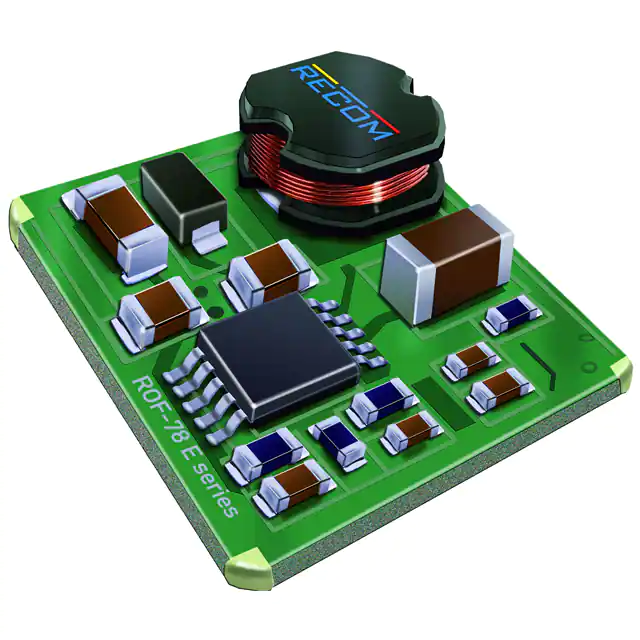

ROF-78E12-0.5SMD-RDC DC CONVERTER 12V 6W |
728 |
|
Технический лист |
INNOLINE ROF-78E (E-Series) | 4-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 15V | 36V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | Standby Output | -40°C ~ 85°C (With Derating) | 92% | - | - | Surface Mount | 0.53" L x 0.49" W x 0.18" H (13.5mm x 12.5mm x 4.5mm) | - | - | EAC | - |
|
TBA 1-1212EDC DC CONVERTER 12V 1W |
259 |
|
Технический лист |
TBA 1E (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
TBA 1-2412EDC DC CONVERTER 12V 1W |
188 |
|
Технический лист |
TBA 1E (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
PM-500A50DC DC CONVERTER 5V 500MA |
164 |
|
- |
PM-500A | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 6.5V | 32V | 5V | - | - | - | 500mA | 0.5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 94% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
1S7BE_2415D6UISOLATED MODULE DC DC CONVERTERS |
146 |
|
Технический лист |
1S7B_6U (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 22.8V | 25.2V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|
|
PM-500A120DC DC CONVERTER 12V |
124 |
|
Технический лист |
PM-500A | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 15V | 32V | 12V | - | - | - | 500mA | 0.5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
EPM7241V-05R-200SHDC DC CONV 1W 24VIN 5VOUT 200MA |
341 |
|
Технический лист |
EPM7-1V (1W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | 62368-1 |
|
EPM6241V-12R-084SHDC DC CONV 1W 24VIN 12VOUT 84MA |
546 |
|
Технический лист |
EPM6-1V (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | - | 62368-1 |
