DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSO-2405SDC DC CONVERTER 5V 1W |
768 |
|
Технический лист |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RSO-243.3SDC DC CONVERTER 3.3V 1W |
562 |
|
Технический лист |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 300mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
RS-243.3SDC DC CONVERTER 3.3V 2W |
197 |
|
Технический лист |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 500mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 73% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
PTN04050CAZTDC DC CONVERTER 5-15V 12W |
560 |
|
Технический лист |
PTN04050C (12W) | 4-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 5.5V | 5 ~ 15V | - | - | - | 2.4A | - | - | ITE (Commercial) | OTP | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
TSR 1-4850WIDC DC CONVERTER 5V 3SIP |
541 |
|
Технический лист |
TSR 1WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 72V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 80°C (With Derating) | 87% | - | - | Through Hole | 0.48" L x 0.34" W x 0.69" H (12.1mm x 8.6mm x 17.5mm) | - | - | - | - |
|
|
TSR 1-48120WIDC DC CONVERTER 12V 3SIP |
131 |
|
Технический лист |
TSR 1WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 17V | 72V | 12V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 80°C (With Derating) | 93% | - | - | Through Hole | 0.48" L x 0.34" W x 0.69" H (12.1mm x 8.6mm x 17.5mm) | - | - | - | - |
|
TEL 3-0511DC DC CONVERTER 5V 3W |
332 |
|
Технический лист |
TEL 3 (3W) | 24-DIP Module, 13 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 70% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
RS3-0509SDC DC CONVERTER 9V 3W |
104 |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 9V | - | - | - | 333mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
IP4805SADC DC CONVERTER 5V 3W |
169 |
|
Технический лист |
IP (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 70°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
IP2403SADC DC CONVERTER 3.3V 3W |
118 |
|
Технический лист |
IP (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 700mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|

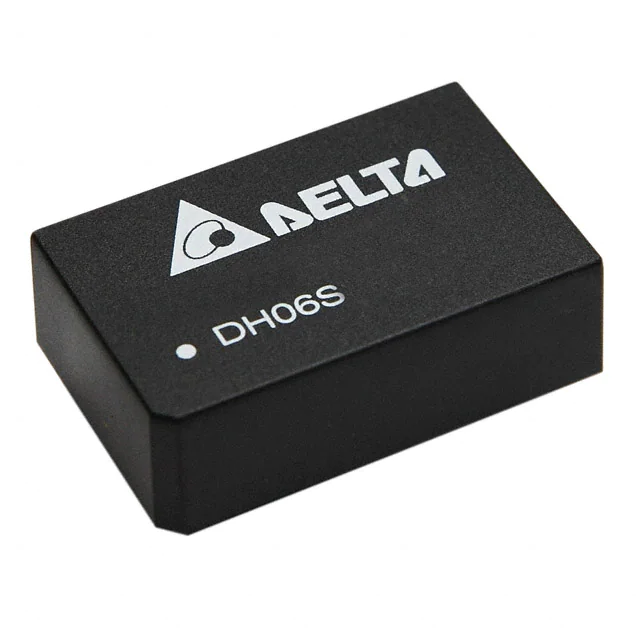

DH06S1212ADC DC CONVERTER 12V 6W |
1,252 |
|
Технический лист |
DH06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
ATA010A0X3-SRZDC DC CONVERTER 0.8-5.5V 55W |
291 |
|
Технический лист |
Austin Lynx™ II | 7-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 8.3V | 14V | 0.8 ~ 5.5V | - | - | - | 10A | 55 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.33" H (33.0mm x 13.5mm x 8.3mm) | - | Enable, Active Low | - | - |
|
|
RSO-1205SDC DC CONVERTER 5V 1W |
231 |
|
Технический лист |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
MGJ3T12150505MC-R7DC DC CONVERTER 15V -10V 3W |
117 |
|
Технический лист |
MGJ3 (3W) | 7-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 9V | 18V | 15V | -10V | - | - | 120mA, 120mA | 3 W | 5.2 kV | ITE (Commercial), Medical | SCP, UVLO | -40°C ~ 105°C | 82% | - | - | Surface Mount | 0.91" L x 0.89" W x 0.58" H (23.0mm x 22.6mm x 14.7mm) | - | - | - | - |
|

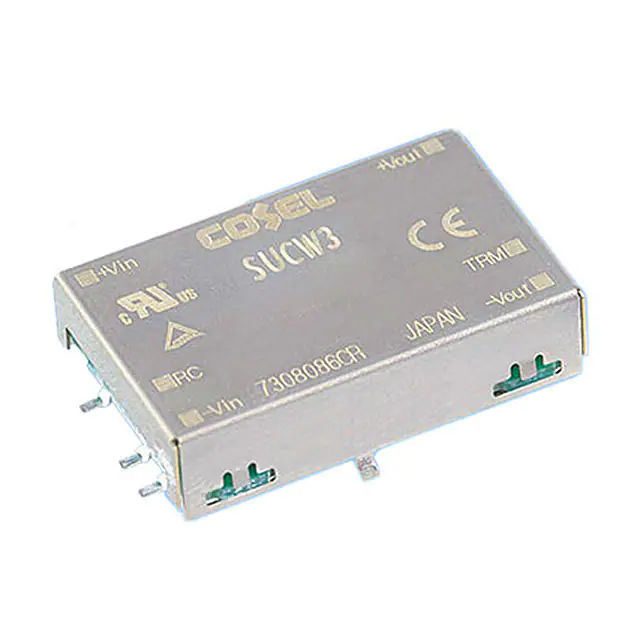

SUCW32412BDC DC CONVERTER +/-12V 24V 3.1W |
226 |
|
Технический лист |
SUCW (3W) | 7-SMD Module | Box | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 130mA, 130mA | 3.1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 76% | - | - | Surface Mount | 0.98" L x 0.61" W x 0.28" H (25.0mm x 15.5mm x 7.0mm) | - | - | - | - |
|
APTS012A0X3-SRZDC DC CONVERTER 0.7-5.5V 66W |
894 |
|
Технический лист |
Micro TLynx™ | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 5.5V | - | - | - | 12A | 66 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.33" H (20.3mm x 11.4mm x 8.5mm) | - | Enable, Active Low | - | - |
|
S36SE12001NRFBDC DC CONVERTER 12V 17W |
1,115 |
|
Технический лист |
Delphi S36SE (17W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.3A | 17 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 123°C | 87% | - | - | Through Hole | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.7mm) | - | Enable, Active Low | - | - |
|
|
RS3-483.3SDC DC CONVERTER 3.3V 3W |
883 |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 3.3V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
PTN78000WAZTDC DC CONVERTER 2.5-12.6V |
890 |
|
Технический лист |
PTN78000W | 5-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 7V | 36V | 2.5 ~ 12.6V | - | - | - | 1.5A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 91% | - | - | Surface Mount | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
TMR 2-2413WIDC DC CONVERTER 15V 2W |
458 |
|
Технический лист |
TMR 2WI (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 135mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 1.02" L x 0.37" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | - | - |
