DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD-0505DDC DC CONVERTER +/-5V 2W |
391 |
|
Технический лист |
ECONOLINE RD (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RD-1215DDC DC CONVERTER +/-15V 2W |
197 |
|
Технический лист |
ECONOLINE RD (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
R1S-3.33.3DC DC CONVERTER 3.3V 1W |
217 |
|
Технический лист |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 75% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
NTE0512MC-RDC DC CONVERTER 12V 1W |
347 |
|
Технический лист |
NTE (1W) | 14-SMD Module, 8 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Surface Mount | 0.50" L x 0.30" W x 0.26" H (12.7mm x 7.6mm x 6.6mm) | - | - | - | - |
|

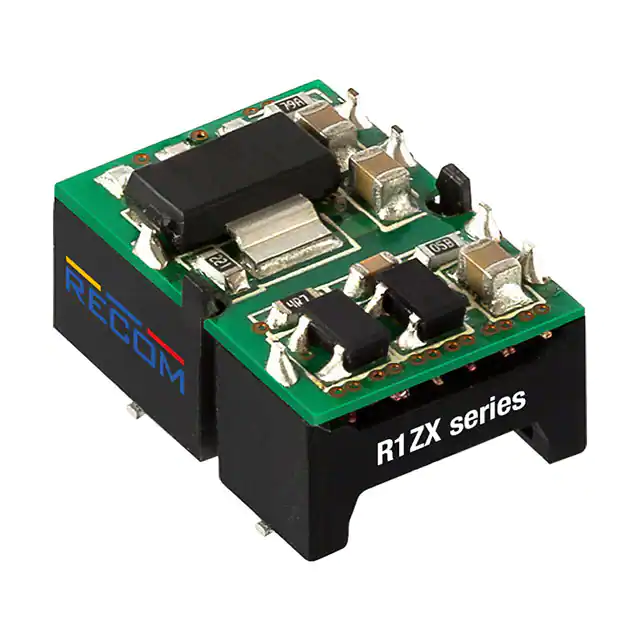

R1ZX-0505/P-RDC DC CONVERTER 5V 1W |
1,339 |
|
Технический лист |
ECONOLINE R1ZX (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 80°C (With Derating) | 68% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.33" H (15.2mm x 10.7mm x 8.5mm) | - | - | CB, cURus | - |
|
ILDC11-15EULTRAMINIATURE ISOLATED 250MW 3. |
135 |
|
Технический лист |
- | 6-VDFN Exposed Pad | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 3.3V | - | - | - | 80mA | 264 mW | 2.5 kV | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.12" L x 0.22" W x 0.04" H (3.0mm x 5.5mm x 0.9mm) | 6-DFN (3x5.5) | - | - | - |
|
R05P22005DDC DC CONVERTER 20V -5V 2W |
129 |
|
Технический лист |
ECONOLINE RxxP22005D (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 20V | -5V | - | - | 50mA, 200mA | 2 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 95°C | 82% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | - | - |
|
PTH04070WAZDC DC CONVERTER 0.9-3.6V |
676 |
|
Технический лист |
PTH04070W | 5-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 5.5V | 0.9 ~ 3.6V | - | - | - | 3A | - | - | ITE (Commercial) | OCP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.1mm) | - | - | - | - |
|
MEJ1S0305SCDC DC CONVERTER 5V 1W |
234 |
|
Технический лист |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 71.5% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
NCS1S1212SCDC DC CONVERTER 12V 1W |
219 |
|
Технический лист |
NCS1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 79% | - | - | Through Hole | 0.86" L x 0.32" W x 0.45" H (21.9mm x 8.2mm x 11.3mm) | - | - | - | - |
|
|
MEJ1S0512SCDC DC CONVERTER 12V 1W |
131 |
|
Технический лист |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
MGJ2D121515SCDC DC CONVERTER +/-15V 2W |
105 |
|
Технический лист |
MGJ2 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
LMZ12002TZE-ADJ/NOPBDC DC CONVERTER 0.8-6V |
417 |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.8 ~ 6V | - | - | - | 2A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 92% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|
R-7812-0.5DC DC CONVERTER 12V 6W |
3,177 |
|
Технический лист |
INNOLINE R-78-0.5 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 15V | 32V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 97% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
RK-0505S/HDC DC CONVERTER 5V 1W |
559 |
|
Технический лист |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|

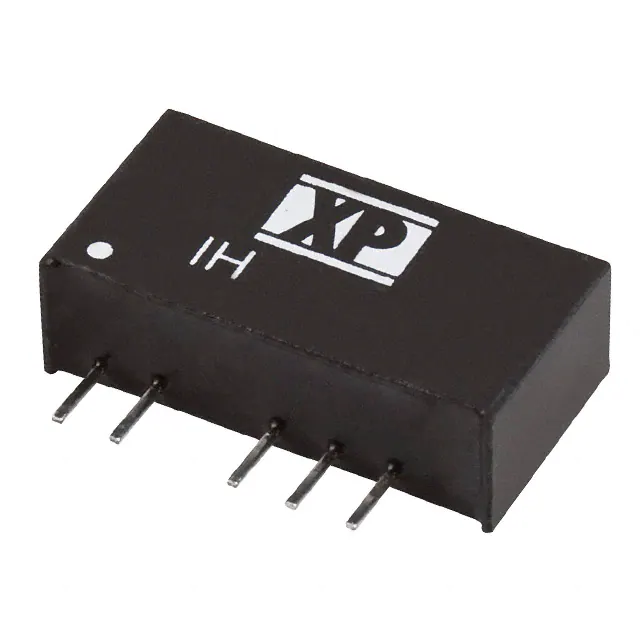

IH2415SDC DC CONVERTER +/-15V 2W |
962 |
|
Технический лист |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm) | - | - | - | - |
|
RSK-2405SRUW/H32W DC/DC-CONVERTER 'ECONOLINE' S |
907 |
|
Технический лист |
ECONOLINE RSK-RUW (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 36V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CB, cURus | 62368-1 |
|
|
IH2405SDC DC CONVERTER +/-5V 2W |
398 |
|
Технический лист |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm) | - | - | - | - |
|
|
IH1215SDC DC CONVERTER +/-15V 2W |
356 |
|
Технический лист |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm) | - | - | - | - |
|
|
IH2412SDC DC CONVERTER +/-12V 2W |
157 |
|
Технический лист |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 84mA, 84mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm) | - | - | - | - |
