Преобразователи переменного тока в постоянный
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Применение | Особенности | Рабочая температура | Эффективность | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BP5046AC/DC CONVERTER 12V 2W |
0 |
|
Технический лист |
- | 12-SIP Module, 6 Leads | Tray | Obsolete | Enclosed | 1 | 187 ~ 276 VAC | 12V | - | - | - | 200mA | 2 W | ITE (Commercial) | - | -25°C ~ 80°C (With Derating) | 72% | Through Hole | 1.38" L x 0.36" W x 0.75" H (35.0mm x 9.1mm x 19.1mm) | - | - |
|

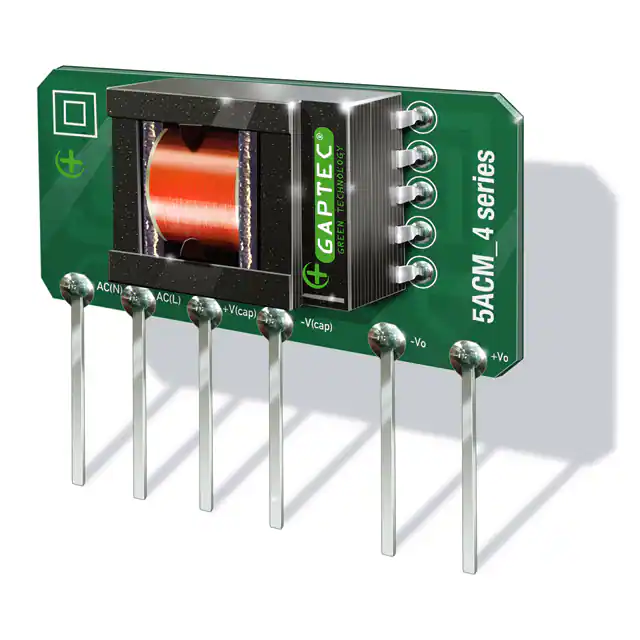

5ACM_05S4AC/DC CONVERTER 5V 5W |
0 |
|
Технический лист |
5ACM_4 (5W) | 14-SIP Module, 6 Leads | Tube | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 400 VDC | 5V | - | - | - | 1A | 5 W | ITE (Commercial) | Universal Input | -25°C ~ 85°C (With Derating) | 74% | Through Hole | 1.65" L x 0.54" W x 0.79" H (42.0mm x 13.7mm x 20.0mm) | CB, CE, cURus, UL | 62368-1 |
|
|
5ACM_09S4AC/DC CONVERTER 9V 5W |
0 |
|
Технический лист |
5ACM_4 (5W) | 14-SIP Module, 6 Leads | Tube | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 400 VDC | 9V | - | - | - | 560mA | 5 W | ITE (Commercial) | Universal Input | -25°C ~ 85°C (With Derating) | 75% | Through Hole | 1.65" L x 0.54" W x 0.79" H (42.0mm x 13.7mm x 20.0mm) | CB, CE, cURus, UL | 62368-1 |
|
|
5ACM_03S4AC/DC CONVERTER 3.3V 3.3W |
0 |
|
Технический лист |
5ACM_4 (5W) | 14-SIP Module, 6 Leads | Tube | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 400 VDC | 3.3V | - | - | - | 1A | 3.3 W | ITE (Commercial) | Universal Input | -25°C ~ 85°C (With Derating) | 67% | Through Hole | 1.65" L x 0.54" W x 0.79" H (42.0mm x 13.7mm x 20.0mm) | CB, CE, cURus, UL | 62368-1 |
|
|
5ACM_15S4AC/DC CONVERTER 15V 5W |
0 |
|
Технический лист |
5ACM_4 (5W) | 14-SIP Module, 6 Leads | Tube | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 400 VDC | 15V | - | - | - | 340mA | 5 W | ITE (Commercial) | Universal Input | -25°C ~ 85°C (With Derating) | 77% | Through Hole | 1.65" L x 0.54" W x 0.79" H (42.0mm x 13.7mm x 20.0mm) | CB, CE, cURus, UL | 62368-1 |
|
|
5ACM_24S4AC/DC CONVERTER 24V 5W |
0 |
|
Технический лист |
5ACM_4 (5W) | 14-SIP Module, 6 Leads | Tube | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 400 VDC | 24V | - | - | - | 210mA | 5 W | ITE (Commercial) | Universal Input | -25°C ~ 85°C (With Derating) | 79% | Through Hole | 1.65" L x 0.54" W x 0.79" H (42.0mm x 13.7mm x 20.0mm) | CB, CE, cURus, UL | 62368-1 |
|
|
5ACM_12S4AC/DC CONVERTER 12V 5W |
0 |
|
Технический лист |
5ACM_4 (5W) | 14-SIP Module, 6 Leads | Tube | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 400 VDC | 12V | - | - | - | 420mA | 5 W | ITE (Commercial) | Universal Input | -25°C ~ 85°C (With Derating) | 76% | Through Hole | 1.65" L x 0.54" W x 0.79" H (42.0mm x 13.7mm x 20.0mm) | CB, CE, cURus, UL | 62368-1 |
|
LD10-23B05R2-MENCLOSED AC DC CONVERTERS 1 OUTP |
15 |
|
Технический лист |
LD10-23BxxR2 (10W) | 6-DIP Module, 4 Leads | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 2A | 10 W | Household Appliances, ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 79% | Through Hole | 1.87" L x 1.06" W x 0.93" H (47.6mm x 26.8mm x 23.5mm) | CB, CE, cURus, UL | 60335-1; 62368-1 |
|
|
LD10-23B12R2-MENCLOSED AC DC CONVERTERS 1 OUTP |
0 |
|
Технический лист |
LD10-23BxxR2 (10W) | 6-DIP Module, 4 Leads | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 830mA | 10 W | Household Appliances, ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 85% | Through Hole | 1.57" L x 1.00" W x 0.83" H (40.0mm x 25.4mm x 21.0mm) | CB, CE, cURus, UL | 60335-1; 62368-1 |
|
PSK-3D-3AC/DC CONVERTER 3.3V 3W |
10 |
|
Технический лист |
PSK-3D (3W) | 5-DIP Module, 4 Leads | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | 900mA | 3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | Through Hole | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) | CE, cURus | 60335-1; 62368-1 |
|
PBO-8-24AC/DC CONVERTER 24V 7.92W |
0 |
|
Технический лист |
PBO-8 (8W) | 16-SIP Module, 6 Leads | Tray | Obsolete | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 330mA | 7.92 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | Through Hole | 1.75" L x 0.59" W x 0.94" H (44.5mm x 15.0mm x 24.0mm) | CE, cURus | 60335-1; 62368-1 |
|
PBO-8-24-BAC/DC CONVERTER 24V 7.92W |
0 |
|
Технический лист |
PBO-8 (8W) | 16-SIP Module, 6 Leads | Tray | Obsolete | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 330mA | 7.92 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | Through Hole, Right Angle | 1.75" L x 0.88" W x 0.59" H (44.5mm x 22.5mm x 15.0mm) | CE, cURus | 60335-1; 62368-1 |
|
|
10ACFE2W_09S3.6AC DC CONVERTERS OUTPUT: 9V 85-3 |
0 |
|
Технический лист |
10ACFE2W_3.6 (10W) | 6-SIP Module | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 9V | - | - | - | 1.111A | 10 W | ITE (Commercial) | - | -20°C ~ 85°C (With Derating) | 80% | Through Hole | 1.14" L x 0.55" W x 0.79" H (28.8mm x 14.1mm x 20.0mm) | - | 62368-1 |
|
|
10ACFE2W_12.5S3.6AC DC CONVERTERS OUTPUT: 12.5V 8 |
0 |
|
Технический лист |
10ACFE2W_3.6 (10W) | 6-SIP Module | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12.5V | - | - | - | 800mA | 10 W | ITE (Commercial) | - | -20°C ~ 85°C (With Derating) | 82% | Through Hole | 1.14" L x 0.55" W x 0.79" H (28.8mm x 14.1mm x 20.0mm) | - | 62368-1 |
|
|
10ACFE2W_03S3.6AC DC CONVERTERS OUTPUT: 3.3V 85 |
0 |
|
Технический лист |
10ACFE2W_3.6 (10W) | 6-SIP Module | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 3.3V | - | - | - | 2A | 6.6 W | ITE (Commercial) | - | -20°C ~ 85°C (With Derating) | 75% | Through Hole | 1.14" L x 0.55" W x 0.79" H (28.8mm x 14.1mm x 20.0mm) | - | 62368-1 |
|
|
10ACFE2W_24S3.6AC DC CONVERTERS OUTPUT: 24V 85- |
0 |
|
Технический лист |
10ACFE2W_3.6 (10W) | 6-SIP Module | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | 416mA | 10 W | ITE (Commercial) | - | -20°C ~ 85°C (With Derating) | 84% | Through Hole | 1.14" L x 0.55" W x 0.79" H (28.8mm x 14.1mm x 20.0mm) | - | 62368-1 |
|
|
10ACFE2W_05S3.6AC DC CONVERTERS OUTPUT: 5V 85-3 |
0 |
|
Технический лист |
10ACFE2W_3.6 (10W) | 6-SIP Module | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | 2A | 10 W | ITE (Commercial) | - | -20°C ~ 85°C (With Derating) | 78% | Through Hole | 1.14" L x 0.55" W x 0.79" H (28.8mm x 14.1mm x 20.0mm) | - | 62368-1 |
|
|
10ACFE2W_12S3.6AC DC CONVERTERS OUTPUT: 12V 85- |
0 |
|
Технический лист |
10ACFE2W_3.6 (10W) | 6-SIP Module | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | 833mA | 10 W | ITE (Commercial) | - | -20°C ~ 85°C (With Derating) | 82% | Through Hole | 1.14" L x 0.55" W x 0.79" H (28.8mm x 14.1mm x 20.0mm) | - | 62368-1 |
|
|
10ACFE2W_15S3.6AC DC CONVERTERS OUTPUT: 15V 85- |
0 |
|
Технический лист |
10ACFE2W_3.6 (10W) | 6-SIP Module | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | 667mA | 10 W | ITE (Commercial) | - | -20°C ~ 85°C (With Derating) | 82% | Through Hole | 1.14" L x 0.55" W x 0.79" H (28.8mm x 14.1mm x 20.0mm) | - | 62368-1 |
|
LD03-23B05R23W AC-DC Board Mount Power Supply Module, Output: 5V DC |
10 |
|
Технический лист |
305RAC / LD-R2 | 5-DIP Module, 4 Leads | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 600mA | 3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 76% | Through Hole | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) | CB, CE, cURus | - |
