Преобразователи переменного тока в постоянный
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Применение | Особенности | Рабочая температура | Эффективность | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM61S240AC/DC CONVERTER 24V 60W |
0 |
|
Технический лист |
CFM61S (60W) | 6-DIP Module | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | 2.5A | 60 W | ITE (Commercial) | Universal Input | -30°C ~ 70°C (With Derating) | 89% | Through Hole | 2.00" L x 2.00" W x 1.35" H (50.8mm x 50.8mm x 34.2mm) | CE, cURus, FCC, Nemko | 62368-1 |
|

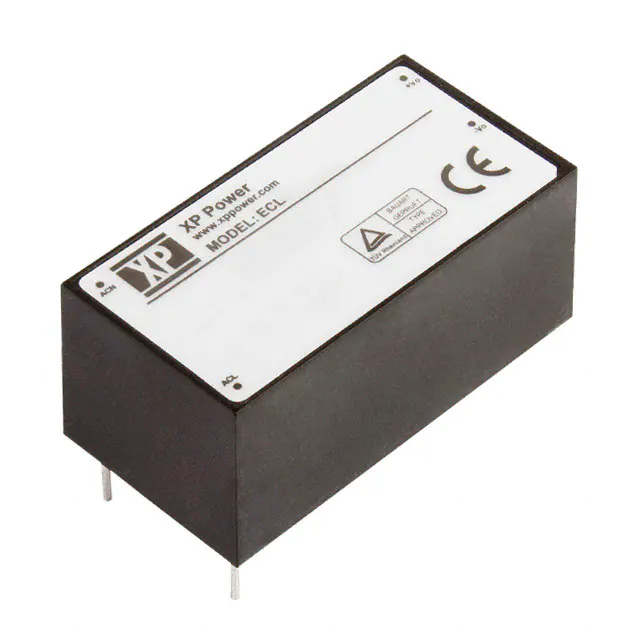

ECL05US12-EAC/DC CONVERTER 12V 5W |
5 |
|
Технический лист |
ECL (5W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | 410mA | 5 W | ITE (Commercial) | Universal Input | -20°C ~ 70°C (With Derating) | 78% | Through Hole | 2.06" L x 1.07" W x 0.91" H (52.3mm x 27.2mm x 23.0mm) | CSA, cUL, EN, IEC, UL | 62368-1 |
|
CFM61S240-EAC/DC CONVERTER 24V 60W |
0 |
|
Технический лист |
CFM61S (60W) | 6-DIP Module | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | 2.5A | 60 W | ITE (Commercial) | Universal Input | -30°C ~ 70°C (With Derating) | 89% | Through Hole | 2.14" L x 2.14" W x 1.41" H (54.3mm x 54.3mm x 35.8mm) | CE, cURus, FCC, Nemko | 62368-1 |
|
TPP 15-109A-DAC/DC CONVERTER 9V 15W |
2 |
|
Технический лист |
TPP 15A-D (15W) | 5-DIP Module | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 9V | - | - | - | 1.67A | 15 W | Household Appliances, ITE (Commercial), Medical | Adjustable Output, Universal Input | -40°C ~ 85°C (With Derating) | 86% | Through Hole | 1.50" L x 1.00" W x 0.82" H (38.1mm x 25.4mm x 20.8mm) | CB, CE, cURus | - |
|
PSK-S12B-5AC/DC CONVERTER 5V 10W |
0 |
|
Технический лист |
PSK-S12B (12W) | 4-DIP Module | Tube | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | 2A | 10 W | Household Appliances, ITE (Commercial) | Universal Input | -40°C ~ 75°C (With Derating) | 80% | Through Hole | 1.60" L x 1.10" W x 0.77" H (40.6mm x 27.9mm x 19.6mm) | CB Scheme, EN, FCC, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-3; 61000-6-4; 61204-3; 62368-1 |
|
TPP 30-148A-DAC/DC CONVERTER 48V 30W |
3 |
|
Технический лист |
TPP 30A-D (30W) | 5-DIP Module | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | 630mA | 30 W | Household Appliances, ITE (Commercial), Medical | Adjustable Output, Universal Input | -40°C ~ 85°C (With Derating) | 91.5% | Through Hole | 2.74" L x 1.36" W x 0.95" H (69.7mm x 34.6mm x 24.1mm) | CB, CE, cURus | - |
|
ECL15UD03-PAC/DC CONVERTER 5V -12V 15W |
2 |
|
Технический лист |
ECL (15W) | 6-DIP Module | Box | Active | Open Frame | 2 | 90 ~ 264 VAC | 5V | - | - | - | 1.5A, 625mA | 15 W | ITE (Commercial) | Universal Input | -20°C ~ 70°C (With Derating) | 81% | Through Hole | 2.44" L x 1.21" W x 0.96" H (62.0mm x 30.7mm x 24.4mm) | CSA, cUL, EN, IEC, UL | 62368-1 |
|
CUS60M-24/PAC/DC CONVERTER 24V 60W |
2 |
|
Технический лист |
CUS60M (60W) | 6-DIP Module | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | 2.5A | 60 W | Household Appliances, ITE (Commercial), Medical | Adjustable Output, Universal Input | -20°C ~ 70°C (With Derating) | 90% | Through Hole | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.2mm) | CE | - |
|
VBM-70-48AC-DC, 70 W, 48 VDC, SINGLE OUTP |
0 |
|
Технический лист |
VBM-70 (70W) | Half Brick | Tray | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | 1.46A | 70 W | ITE (Commercial) | Adjustable Output, Universal Input | -40°C ~ 85°C (With Derating) | 89.5% | Through Hole | 2.40" L x 2.28" W x 0.67" H (61.0mm x 57.9mm x 17.0mm) | CE, cURus, UKCA | 62368-1 |
|
KMS40-3P3AC/DC CONVERTER 3.3V 40W |
1 |
|
Технический лист |
KM (40W) | 7-DIP Module, 5 Leads | Bulk | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 100 ~ 375 VDC | 3.3V | - | - | - | 8A | 40 W | Medical | Universal Input | -25°C ~ 70°C (With Derating) | 75% | Through Hole | 3.50" L x 2.50" W x 1.06" H (89.0mm x 63.5mm x 27.0mm) | CE, EN, IEC, UL | 60601-1; 60950-1; 62368-1 |
|
P38AC/DC CONVERTER 5V 5W |
1 |
|
Технический лист |
P3 | 7-DIP Module, 5 Leads | Bulk | Active | Enclosed | 1 | 105 ~ 125 VAC | 5V | - | - | - | 1A | 5 W | ITE (Commercial) | - | -25°C ~ 71°C | - | Through Hole | 3.50" L x 2.50" W x 1.25" H (88.9mm x 63.5mm x 31.8mm) | CE, CSA, cURus, UL | - |
|
PSK-150-12AC/DC CONVERTER 12V 150W |
0 |
|
Технический лист |
PSK-150 (150W) | 7-DIP Module | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | 12.5A | 150 W | Medical | Adjustable Output, PFC, Remote On/Off, Universal Input | -30°C ~ 70°C (With Derating) | 93% | Through Hole | 4.29" L x 2.30" W x 1.38" H (109.0mm x 58.5mm x 35.0mm) | CE, cURus, UKCA | 60601-1 |
|
P37-5AC/DC CONVERTER +/-5V 5W |
1 |
|
Технический лист |
P3 | 7-DIP Module, 5 Leads | Bulk | Active | Enclosed | 2 | 105 ~ 125 VAC | 5V | - | - | - | 500mA, 500mA | 5 W | ITE (Commercial) | - | -25°C ~ 71°C | - | Through Hole | 3.50" L x 2.50" W x 1.56" H (88.9mm x 63.5mm x 39.6mm) | CE, CSA, cURus, UL | - |
|
PACSR28018SAC/DC CONVERTER 28V 504W |
0 |
|
Технический лист |
PACSR | 10-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 265 VAC | 28V | - | - | - | 18A | 504 W | ITE (Commercial) | Adjustable Output, Baseplate, Remote Sense, Universal Input | -40°C ~ 100°C (With Derating) | 93% | Through Hole | 4.36" L x 2.00" W x 0.54" H (110.7mm x 50.8mm x 13.7mm) | CE | - |
|
P33/22AC/DC CONVERTER +/-15V |
1 |
|
Технический лист |
P3 | 5-DIP Module | Bulk | Active | Enclosed | 2 | 105 ~ 125 VAC | 15V | - | - | - | 100mA, 100mA | - | ITE (Commercial) | SCP | -25°C ~ 71°C | - | Through Hole | 3.50" L x 2.50" W x 0.88" H (88.9mm x 63.5mm x 22.4mm) | CE, cURus, UL | - |
|
|
P37AC/DC CONVERTER 5V |
1 |
|
Технический лист |
P3 | 7-DIP Module, 5 Leads | Box | Active | Enclosed | 1 | 105 ~ 125 VAC | 5V | - | - | - | 500mA | - | ITE (Commercial) | SCP | -25°C ~ 71°C | - | Through Hole | 3.50" L x 2.50" W x 0.87" H (88.9mm x 63.5mm x 22.2mm) | CE, cURus | - |
|
|
P33-5AC/DC CONVERTER +/-5V |
1 |
|
Технический лист |
P3 | 7-DIP Module, 5 Leads | Box | Active | Enclosed | 2 | 105 ~ 125 VAC | 5V | - | - | - | 100mA, 100mA | - | ITE (Commercial) | SCP | -25°C ~ 71°C | - | Through Hole | 3.50" L x 2.50" W x 0.87" H (88.9mm x 63.5mm x 22.2mm) | CE, cURus | - |
|
|
P39-24SAC/DC CONVERTER 24V 24W |
1 |
|
Технический лист |
P3 | 7-DIP Module | Bulk | Active | Enclosed | 1 | 105 ~ 125 VAC | 24V | - | - | - | 1A | 24 W | ITE (Commercial) | - | -25°C ~ 71°C | - | Through Hole | 4.00" L x 2.70" W x 2.00" H (101.6mm x 68.6mm x 50.8mm) | CE, CSA, cURus, UL | - |
|
P33-18/22AC/DC CONVERTER +/-18V |
1 |
|
Технический лист |
P3 | 5-DIP Module | Bulk | Active | Enclosed | 2 | 105 ~ 125 VAC | 18V | - | - | - | 100mA, 100mA | - | ITE (Commercial) | SCP | -25°C ~ 71°C | - | Through Hole | 3.50" L x 2.50" W x 1.25" H (88.9mm x 63.5mm x 31.8mm) | CE, cURus, UL | - |
|
IRM-01-9SAC/DC CONVERTER 9V 1W |
10 |
|
Технический лист |
IRM-01 (1W) | 24-SMD Module, 14 Leads | Tube | Active | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 9V | - | - | - | 111mA | 1 W | ITE (Commercial) | Universal Input | -30°C ~ 85°C (With Derating) | 72% | Surface Mount | 1.33" L x 0.87" W x 0.63" H (33.7mm x 22.2mm x 16.0mm) | CB, CE, cURus, TUV | - |
