Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AKE112DM00GRELAY GEN PURPOSE SPST 8A 12V |
1,825 |
|
Технический лист |
AKE | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 440VAC, 30VDC - Max | 3520VA, 240W | 16.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 0.6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Alloy | - | General Purpose | - | - |
|
|
AZ733-2CE-9DERELAY GEN PURPOSE DPDT 12A 9V |
353 |
|
Технический лист |
AZ733 | Tray | Active | Through Hole | 9VDC | DPDT (2 Form C) | 12 A | 400VAC, 250VDC - Max | 3324VA, 360W | 56.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
J114FL1CS1212VDC.41RELAY GEN PURPOSE SPDT 12A 12V |
294 |
|
Технический лист |
J114FL | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 4560VA, 880W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
J105D1CS5VDC.45RELAY GEN PURPOSE SPDT 10A 5V |
1,992 |
|
Технический лист |
J105D | Tray | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
AZ9403-1C-12DERELAY GEN PURPOSE SPDT 3A 12V |
1,643 |
|
Технический лист |
AZ9403 | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 400VAC, 150VDC - Max | 2770VA, 150W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 8 ms | 5 ms | -40°C ~ 110°C | Silver Tin Oxide (AgSnO) | UL, VDE | General Purpose | - | - |
|

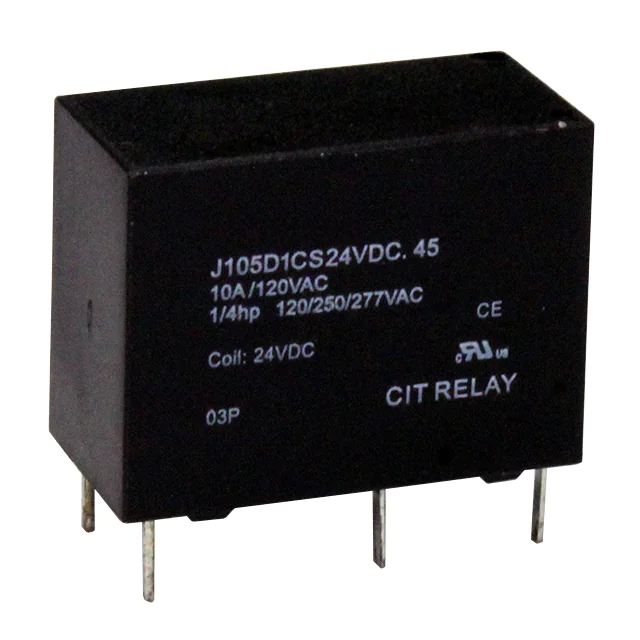

J105D1CS24VDC.45RELAY GEN PURPOSE SPDT 10A 24V |
675 |
|
Технический лист |
J105D | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|

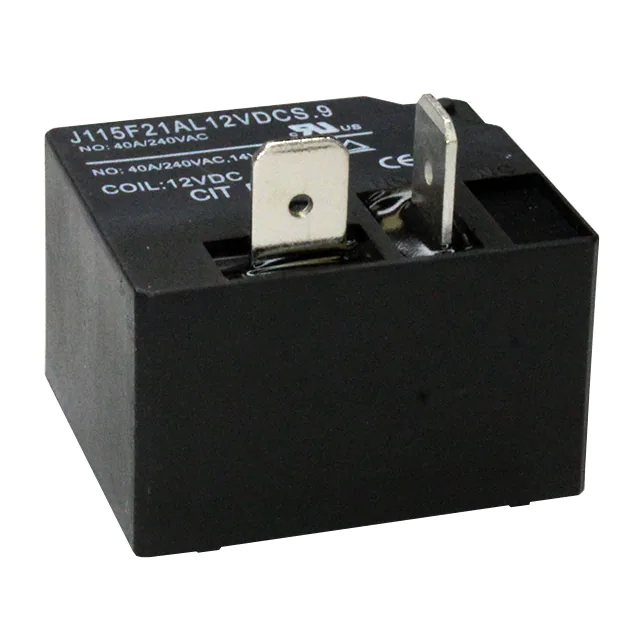

J115F21AL12VDCS.9RELAY GEN PURPOSE SPST 40A 12V |
285 |
|
Технический лист |
J115F2 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
OJ-SS-124HM2RELAY GEN PURPOSE SPST 10A 24V |
10,194 |
|
Технический лист |
OJ, OEG | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 1.2 VDC | 10 ms | 4 ms | -30°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CQC, cULus, TUV, VDE | General Purpose | - | - |
|
ALQ1F09RELAY GEN PURPOSE SPDT 10A 9V |
1,994 |
|
Технический лист |
ALQ | Box | Active | Through Hole | 9VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 44.4 mA | Non Latching | - | PC Pin | - | Class F | 6.75 VDC | 0.45 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURuus, VDE | General Purpose | - | - |
|
G5LE-14-AP3 DC5RELAY GEN PURPOSE SPDT 10A 5V |
647 |
|
Технический лист |
G5LE | Tray | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 79.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
AKE124DM00GRELAY GEN PURPOSE SPST 8A 24V |
1,673 |
|
Технический лист |
AKE | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 440VAC, 30VDC - Max | 3520VA, 240W | - | Non Latching | - | PC Pin | - | - | - | - | 8 ms | 6 ms | -40°C ~ 85°C | Silver Alloy | - | General Purpose | - | - |
|
|
PR9-5V-200-1ARELAY GEN PURPOSE SPST 16A 5V |
887 |
|
Технический лист |
PR9 | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 40 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR8-24V-450-1ARELAY GEN PURPOSE SPST 16A 24V |
757 |
|
Технический лист |
PR8 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 18.8 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
J115F11A24VDCSH.9RELAY GEN PURPOSE SPST 40A 24V |
480 |
|
Технический лист |
J115F1 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
OJ-SS-112LM,000RELAY GEN PURPOSE SPST 3A 12V |
122 |
|
Технический лист |
OJ, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 277VAC, 30VDC - Max | 831VA, 90W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 15 ms | 4 ms | -30°C ~ 90°C | Silver (Ag) | CQC, cULus, TUV, VDE | General Purpose | - | - |
|
|
PR9-24V-200-1ARELAY GEN PURPOSE SPST 16A 24V |
750 |
|
Технический лист |
PR9 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 8.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
G5LE-14-ASI DC24RELAY GEN PURPOSE SPDT 10A 24V |
181 |
|
Технический лист |
G5LE | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
OJ-SH-112DM,000RELAY GEN PURPOSE SPST 5A 12V |
671 |
|
Технический лист |
OJ, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 0.6 VDC | 10 ms | 4 ms | -30°C ~ 85°C | Silver (Ag) | CQC, cULus, TUV, VDE | General Purpose | - | - |
|
|
G5Q-1A4-EL2-HA DC24RELAY GEN PURPOSE SPST 10A 24V |
971 |
|
Технический лист |
G5Q-EL2 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G5Q-1A4-EL2-HA DC12RELAY GEN PURPOSE SPST 10A 12V |
836 |
|
Технический лист |
G5Q-EL2 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
