Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LY4N-AC200/220RELAY GEN PURPOSE 4PDT 10A 220V |
304 |
|
Технический лист |
LY | Bulk | Active | Socketable | 220VAC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 11.2 mA | Non Latching | Lighted Indicator | Plug In | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
KUMP-14D18-12RELAY GEN PURPOSE 3PDT 15A 12V |
141 |
|
Технический лист |
KUMP | Bulk | Active | Socketable | 12VDC | 3PDT (3 Form C) | 15 A | 277VAC - Max | 4155VA | 100 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KUHP-11DT1-12RELAY GEN PURPOSE DPDT 20A 12V |
160 |
|
Технический лист |
KUHP | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 100 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | - | 20 ms | 20 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KRPA-11AY-120RELAY GEN PURPOSE DPDT 5A 120V |
127 |
|
Технический лист |
KRPA | Tray | Active | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 240VAC - Max | 1200VA | 17.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
KRPA-11DG-48RELAY GEN PURPOSE DPDT 10A 48V |
119 |
|
Технический лист |
KRPA | Tray | Active | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 26.7 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 36 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KUP-14A55-240RELAY GEN PURPOSE 3PDT 10A 240V |
106 |
|
Технический лист |
KUP | Bulk | Active | Chassis Mount | 240VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 12 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 204 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KRPA-11DG-110RELAY GEN PURPOSE DPDT 10A 110V |
105 |
|
Технический лист |
KRPA | Tray | Active | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 11.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 82.5 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
.JPG)
|
MY2ZN-D2 DC24RELAY GEN PURPOSE DPDT 5A 24V |
382 |
|
Технический лист |
MY | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 36.3 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | CE, CSA, UR, VDE | General Purpose | - | - |
|
857-354RELAY GEN PURPOSE SPDT 6A 24V |
160 |
|
Технический лист |
857 | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | 8.5 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | 20.4 VAC/DC | - | 15 ms | 25 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | EAC, UL | General Purpose | - | - |
|
|
KUMP-14A18-120RELAY GEN PURPOSE 3PDT 15A 120V |
178 |
|
Технический лист |
KUMP | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 15 A | 277VAC - Max | 4155VA | 24 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KRPA-14DG-12RELAY GEN PURPOSE 3PDT 10A 12V |
109 |
|
Технический лист |
KRPA | Tray | Active | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 9 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KRPA-14AG-120RELAY GEN PURPOSE 3PDT 10A 120V |
145 |
|
Технический лист |
KRPA | Tray | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KRPA-5AG-120RELAY GEN PURPOSE SPDT 10A 120V |
201 |
|
Технический лист |
KRPA | Tray | Active | Socketable | 120VAC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

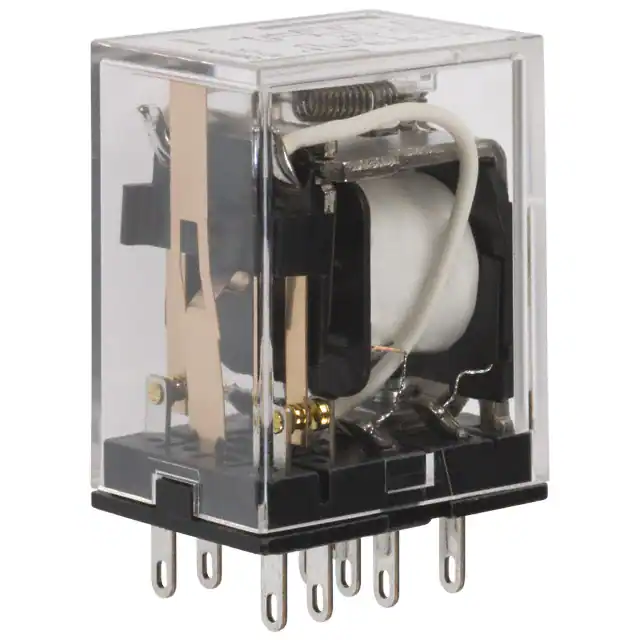

MY2K-US DC24RELAY GEN PURPOSE DPDT 3A 24V |
690 |
|
Технический лист |
MYK | Tray | Active | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 52 mA | Latching, Dual Coil | - | Plug In | - | - | 19.2 VDC | - | 15 ms | 15 ms | -55°C ~ 60°C | - | CE, CSA, LR, UR, TUV, VDE | General Purpose | - | - |
|

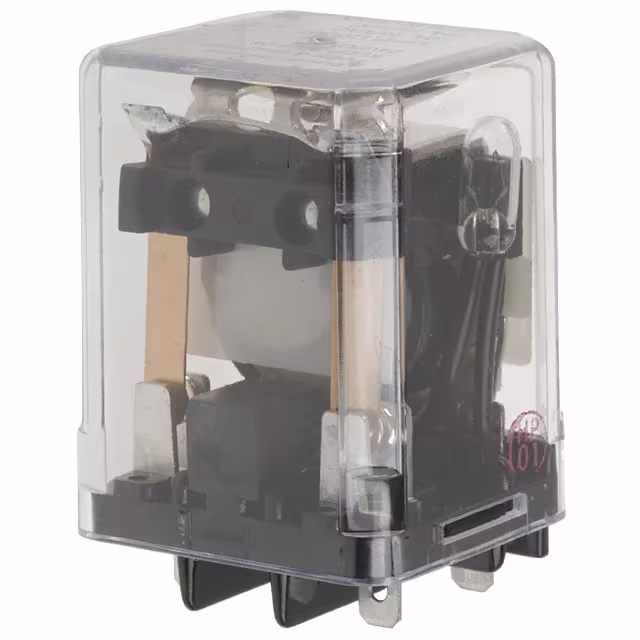

KUEP-3D35-24RELAY GEN PURPOSE SPST 10A 24V |
149 |
|
Технический лист |
KUEP | Bulk | Active | Socketable | 24VDC | SPST-NO (DM) (1 Form X) | 10 A | 150VDC - Max | 1500VA | 51 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
SP4-P-DC24VRELAY GEN PURPOSE 4PDT 10A 24V |
107 |
|
Технический лист |
SP | Box | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 12.5 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 30 ms | 20 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
T92HP7D1X-12RELAY GEN PURPOSE DPST 50A 12V |
304 |
|
Технический лист |
T92 | Tray | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 50 A | 600VAC - Max | 30000VA | 139.5 mA | Non Latching | - | - | - | Class F | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|

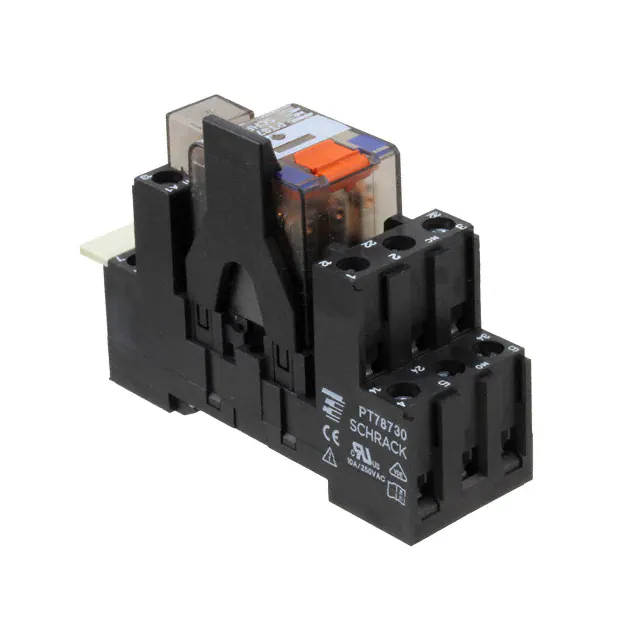

PT3S7LC4RELAY GEN PURPOSE 3PDT 10A 24V |
291 |
|
Технический лист |
PT, SCHRACK | Bulk | Active | DIN Rail | 24VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 30.8 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Socket Included, Test Button | Screw Terminal | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 18 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
G7J-3A1B-P DC12RELAY GEN PURPOSE 4PST 25A 12V |
136 |
|
Технический лист |
G7J | Bulk | Active | Through Hole | 12VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 167 mA | Non Latching | Test Button | PC Pin | - | - | 9 VDC | 1.2 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|

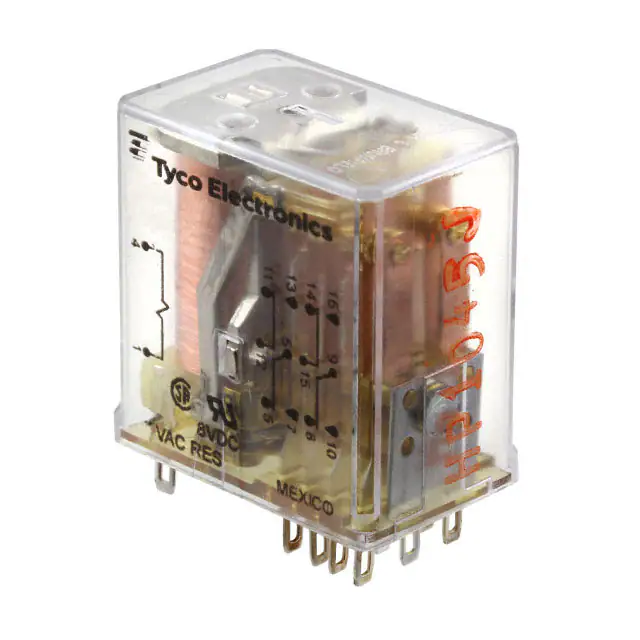

R10-E1Y2-V700RELAY GEN PURPOSE DPDT 3A 24V |
168 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 34.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
