Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G7L-2A-BUBJ-CB AC200/240RELAY GEN PURPOSE DPST 25A 240V |
897 |
|
Технический лист |
G7L | Tray | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 10.2 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 150 VAC | 36 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
HE1AN-P-DC12V-Y5RELAY GEN PURPOSE SPST 48A 12V |
2,235 |
|
Технический лист |
HE-PV | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 48 A | 490VAC, 48VDC - Max | 23520VA, 2304W | 160 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Nickel (AgNi) | CSA, cURus, VDE | General Purpose | - | - |
|

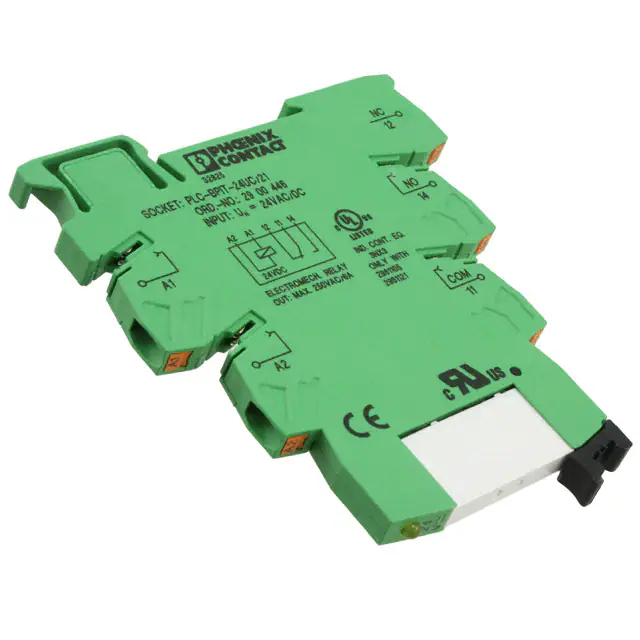

2900300RELAY GEN PURPOSE SPDT 6A 24V |
1,788 |
|
Технический лист |
PLC-RPT | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 11 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 6 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
4C.01.9.024.0050SPARELAY GEN PURPOSE SPDT 16A 24V |
151 |
|
Технический лист |
4C | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 20 mA | Non Latching | Diode, Lighted Indicator | Screw Terminal | - | - | 17.5 VDC | 4.8 VDC | 15 ms | 12 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
AHES3192RELAY GEN PURPOSE DPST 35A 24V |
430 |
|
Технический лист |
HE-S | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 35 A | 277VAC - Nom | - | 78 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
AHES3191RELAY GEN PURPOSE DPST 35A 12V |
380 |
|
Технический лист |
HE-S | Tray | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 35 A | 277VAC - Nom | - | 157 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
K10P-11D15-12RELAY GEN PURPOSE DPDT 15A 12V |
489 |
|
Технический лист |
K10 | Tray | Active | Socketable | 12VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | 1.2 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
K10P-11D15-24RELAY GEN PURPOSE DPDT 15A 24V |
248 |
|
Технический лист |
K10 | Tray | Active | Socketable | 24VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 37 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | 2.4 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
K10P-11A15-120RELAY GEN PURPOSE DPDT 15A 120V |
225 |
|
Технический лист |
K10 | Tray | Active | Socketable | 120VAC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 11 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | 12 VAC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

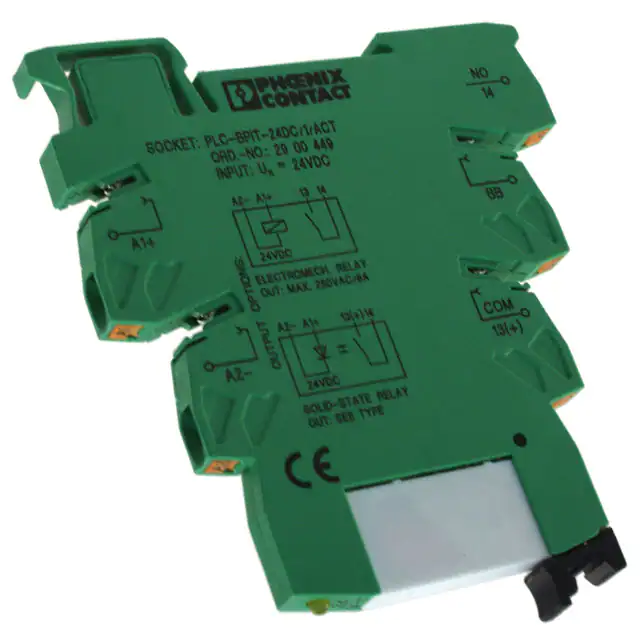

2900312RELAY GEN PURPOSE SPST 6A 24V |
102 |
|
Технический лист |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 9 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
T92S7D12-24RELAY GEN PURPOSE DPST 30A 24V |
8,522 |
|
Технический лист |
T92 | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
T92S7D12-12RELAY GEN PURPOSE DPST 30A 12V |
3,167 |
|
Технический лист |
T92 | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
2909524RELAY GEN PURPOSE SPDT 6A 24V |
2,875 |
|
Технический лист |
PLC-RSC | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 9 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
2909528RELAY GEN PURPOSE SPDT 6A 24V |
206 |
|
Технический лист |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 9 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|

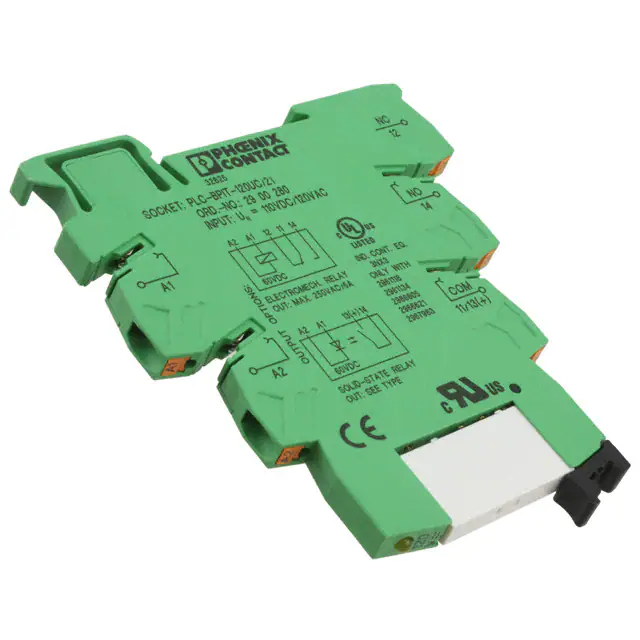

2900304RELAY GEN PURPOSE SPDT 6A 120V |
330 |
|
Технический лист |
PLC-RPT | Bulk | Active | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 6 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|

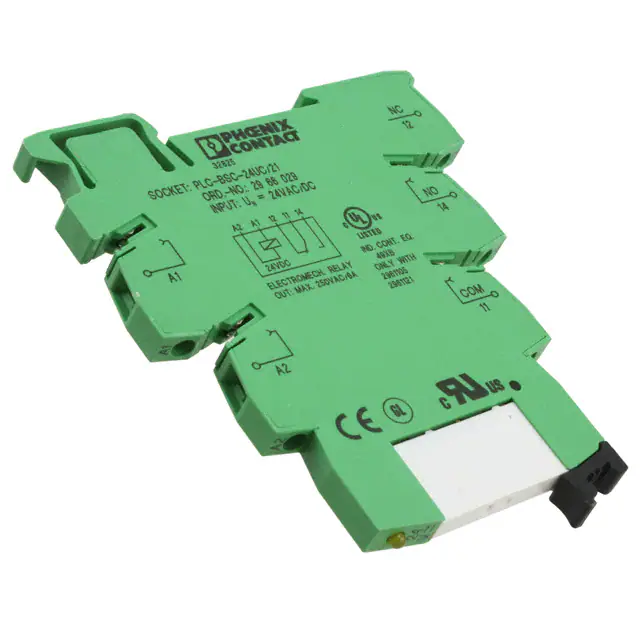

2966184RELAY GEN PURPOSE SPDT 6A 24V |
2,360 |
|
Технический лист |
PLC-RSC | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 11 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 6 ms | 15 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|

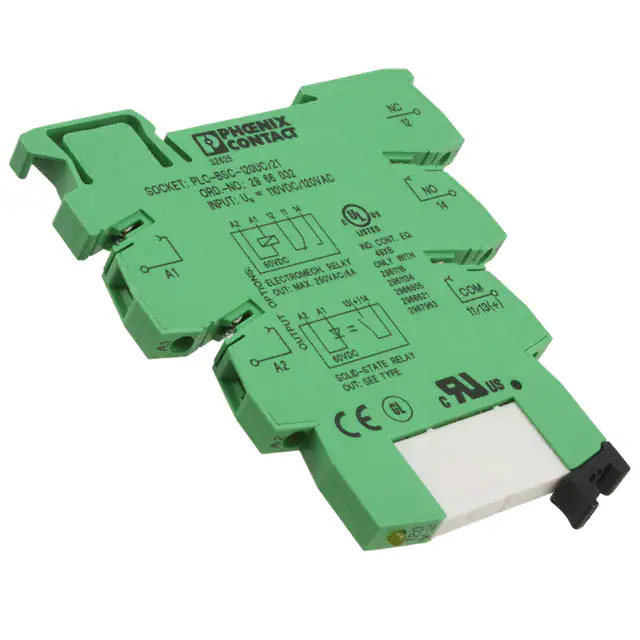

2966197RELAY GEN PURPOSE SPDT 6A 120V |
650 |
|
Технический лист |
PLC-RSC | Bulk | Active | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 6 ms | 15 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|

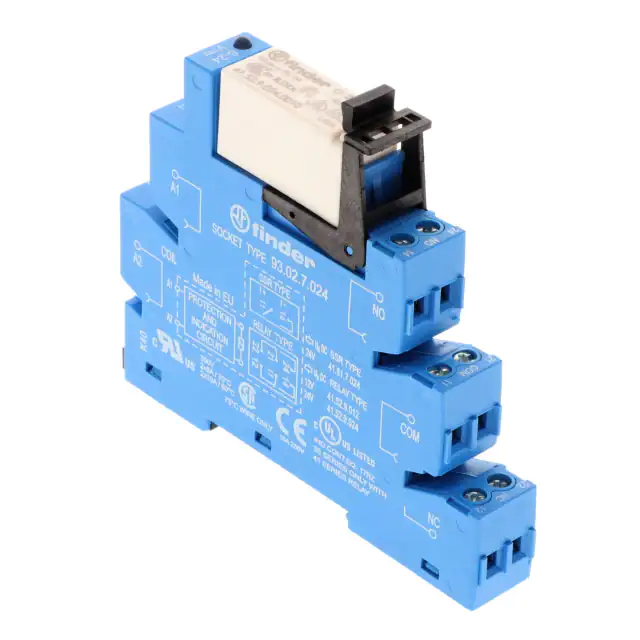

38.52.7.024.0050RELAY GEN PURPOSE DPDT 8A 24V |
763 |
|
Технический лист |
38 | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 19.5 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VDC | 2.4 VDC | 8 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, EAC, RINA, UKCA | General Purpose | - | - |
|
HE2AN-DC12VRELAY GEN PURPOSE DPST 25A 12V |
487 |
|
Технический лист |
HE | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 160 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 8.4 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, TUV, VDE, UR | General Purpose | - | - |
|
|
G7L-2A-BUBJ-CB DC24RELAY GEN PURPOSE DPST 25A 24V |
3,005 |
|
Технический лист |
G7L | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 79 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
