Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

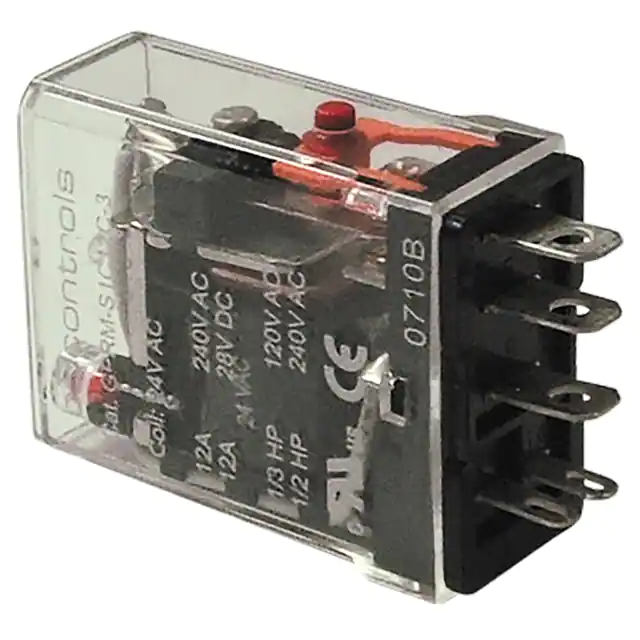

GPRM-S1C12ZC-3RELAY GEN PURPOSE SPDT 12A 24V |
0 |
|
Технический лист |
GR | Bag | Active | Socketable | 24VDC | SPDT (1 Form C) | 12 A | - | - | - | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|

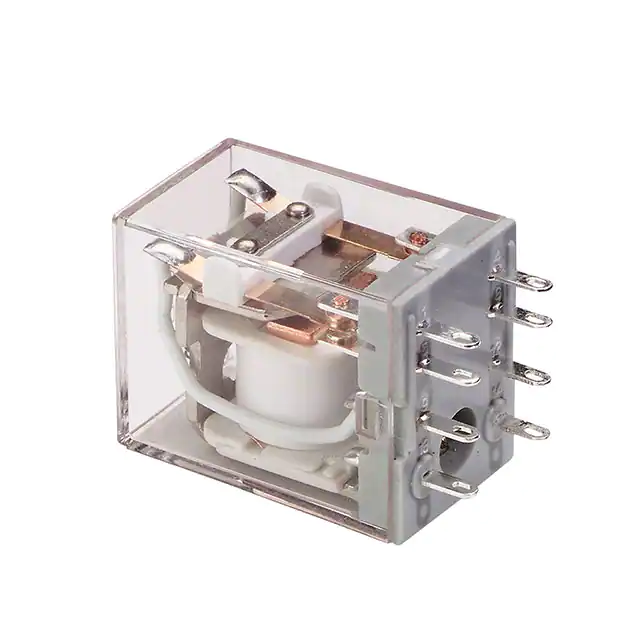

GPRM-B2C10ZCRELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Технический лист |
GR | Bag | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 240VAC, 28VDC - Max | - | 36.9 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
GPRM-B2C10C-3RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Технический лист |
GR | Bag | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 240VAC, 28VDC - Max | - | 45 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
GPRM-B4C05ZC-3RELAY GEN PURPOSE 4PDT 5A 24V |
0 |
|
Технический лист |
GR | Bag | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 240VAC, 28VDC - Max | - | 36.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
GPRM-B4C05D-3RELAY GEN PURPOSE 4PDT 5A 120V |
0 |
|
Технический лист |
GR | Bag | Active | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 240VAC, 28VDC - Max | - | 10 mA | Non Latching | Lighted Indicator | Plug In | - | - | 102 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
GPRM-B2C05C-3RELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
Технический лист |
GR | Bag | Active | Socketable | 24VAC | DPDT (2 Form C) | 5 A | 240VAC, 28VDC - Max | - | 45 mA | Non Latching | Lighted Indicator | Plug In | - | - | 20.4 VAC | 7.2 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
GPRM-S1C12D-3RELAY GEN PURPOSE SPDT 12A 120V |
0 |
|
Технический лист |
GR | Bag | Active | Socketable | 120VAC | SPDT (1 Form C) | 12 A | - | - | - | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
|
GPRM-B2C10D-3RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
Технический лист |
GR | Bag | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC, 28VDC - Max | - | 11.5 mA | Non Latching | Lighted Indicator | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
AHN211Y0NRELAY 2 FORM C AC PLUG-IN 200/22 |
0 |
|
Технический лист |
AHN | Box | Obsolete | Socketable | 220VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 5.3 mA | Non Latching | Lighted Indicator | Plug In | - | - | 176 VAC | 66 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
AHN111X0RELAY 1 FORM C AC PLUG-IN |
0 |
|
Технический лист |
AHN | Box | Obsolete | Socketable | 110VAC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 10.6 mA | Non Latching | Lighted Indicator | Plug In | - | - | 70 VDC | 15 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
AHN12124RELAY 1 FORM C DC PLUG-IN |
0 |
|
Технический лист |
AHN | Box | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 22 mA | Non Latching | Diode | Plug In | - | - | 16.8 VDC | 3.6 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
AHN110Y2RELAY 1 FORM C AC PLUG-IN |
0 |
|
Технический лист |
AHN | Box | Obsolete | Socketable | 240VAC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 4.1 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
AHN350Y0RELAY GEN PURPOSE SPST 16A 220V |
0 |
|
- |
AHN | Box | Obsolete | Chassis Mount | 220VAC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 5.3 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 176 VAC | 66 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
AHN111Y0RELAY GEN PURPOSE SPDT 16A 220V |
0 |
|
- |
AHN | Box | Obsolete | Socketable | 220VAC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 5.3 mA | Non Latching | Lighted Indicator | Plug In | - | - | 176 VAC | 66 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|

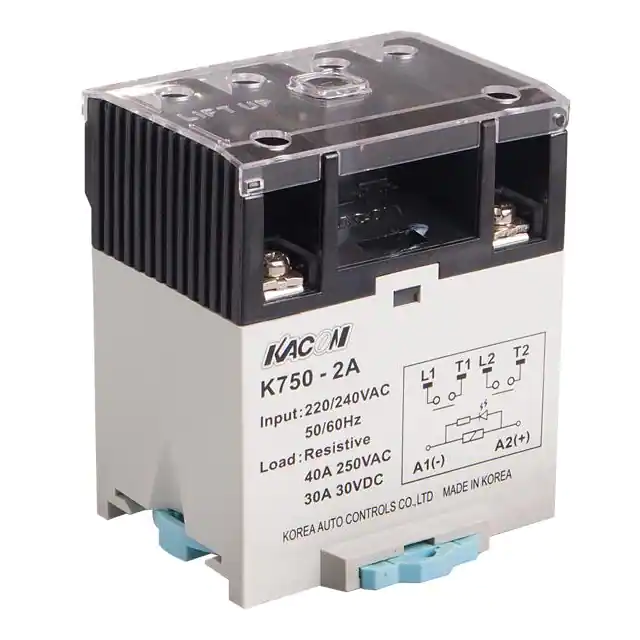

K750-2A-110VACRELAY GEN PURPOSE DPST 40A 110V |
0 |
|
Технический лист |
K750 | Box | Active | DIN Rail | 110VAC | DPST-NO (2 Form A) | 40 A | 250VAC - Max | - | 245 mA | - | Test Button | Screw Terminal | - | - | - | - | 30 ms | 30 ms | -40°C ~ 60°C | Silver Alloy | - | General Purpose | - | - |
|
TBR-MC-6-1P-SCRELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
Технический лист |
TBR | Bag | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 30VDC - Max | - | - | Non Latching | - | Screw Terminal | - | - | 21.6 VAC/DC | 2.4 VAC/DC | 8 ms | 4 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
TBR-MD-6-1P-SCRELAY GEN PURP SPDT 6A 110-125V |
0 |
|
Технический лист |
TBR | Bag | Active | DIN Rail | 110 ~ 125VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 30VDC - Max | - | - | Non Latching | - | Screw Terminal | - | - | - | - | 8 ms | 4 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|

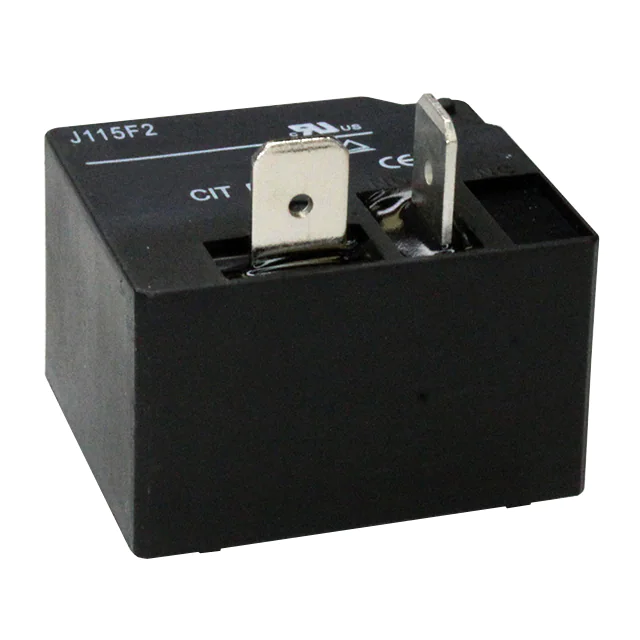

J115F21AHL5VDCS61.5URELAY GEN PURPOSE SPST 50A 5V |
0 |
|
Технический лист |
J115F | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 299.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
J115F21AHL24VDCS61.5URELAY GEN PURPOSE SPST 50A 24V |
0 |
|
Технический лист |
J115F | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|

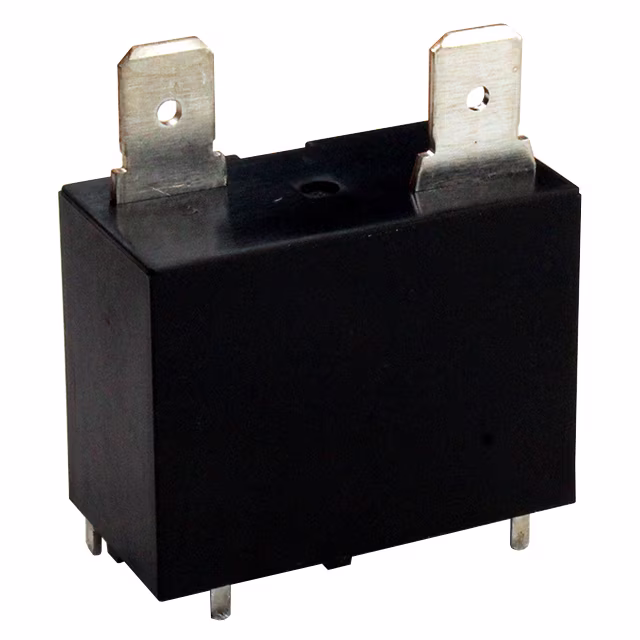

J120D1AC5VDCRELAY GEN PURPOSE SPST 20A 5V |
0 |
|
Технический лист |
J120D | Tray | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 178.6 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | - | 3.75 VDC | 0.5 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
