Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MY4N-GS AC200/220RELAY GEN PURPOSE 4PDT 3A 220V |
0 |
|
Технический лист |
MY | Bulk | Obsolete | Socketable | 220VAC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 17 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In | - | - | 176 VAC | 66 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
MY4N-GS AC24RELAY GEN PURPOSE 4PDT 3A 24V |
0 |
|
Технический лист |
MY | Bulk | Obsolete | Socketable | 24VAC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 133.3 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
1-1393217-8RELAY GEN PURPOSE SPST 6A 24V |
0 |
|
- |
RE, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
1-2158100-7RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
Технический лист |
RZL, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
1-2158100-9RELAY GEN PURPOSE SPDT 16A 5V |
0 |
|
Технический лист |
RZL, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
|
1393218-1RELAY GEN PURPOSE SPST 5A 5V |
0 |
|
Технический лист |
REL, SCHRACK | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 400VAC - Max | 2000VA | 71.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
1393218-3RELAY GEN PURPOSE SPST 5A 48V |
0 |
|
Технический лист |
REL, SCHRACK | Bulk | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 5 A | 400VAC - Max | 2000VA | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 36 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
1415898-9RELAY GEN PURPOSE SPST 16A 12V |
0 |
|
Технический лист |
RT1, Inrush, SCHRACK | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 480VAC - Max | 6400VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | - | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO), Tungsten (W) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
2-1415402-1RELAY GEN PURPOSE SPST 6A 5V |
0 |
|
- |
RE, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
RE034009RELAY GEN PURPOSE SPST 6A 9V |
0 |
|
Технический лист |
RE, SCHRACK | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.3 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
RE034048RELAY GEN PURPOSE SPST 6A 48V |
0 |
|
Технический лист |
RE, SCHRACK | Bulk | Discontinued | Through Hole | 48VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 4.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
2-2158100-2RELAY GEN PURPOSE SPDT 16A 12V |
0 |
|
Технический лист |
RZL, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 44.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
|
AVMR0037RELAY GEN PURPOSE SPST 3A 24V |
0 |
|
Технический лист |
AVMR | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPST-NO (DM) (1 Form X) | 3 A | 250VAC, 30VDC - Max | - | 6.5 mA | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 5 ms | 15 ms | -20°C ~ 50°C | Silver Nickel (AgNi), Gold (Au) | - | General Purpose | - | - |
|
G5Q-1A DC48RELAY GEN PURPOSE SPST 10A 48V |
0 |
|
Технический лист |
G5Q | Tray | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 4.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 36 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|

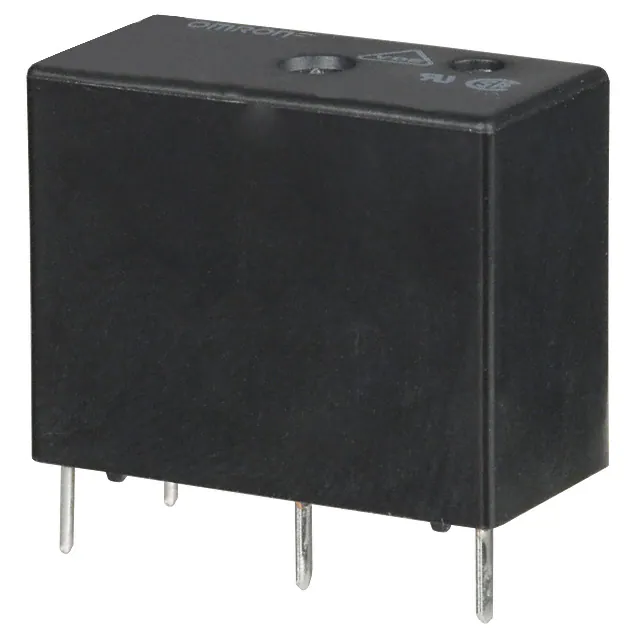

G5SB-1 DC48RELAY GEN PURPOSE SPDT 5A 48V |
0 |
|
Технический лист |
G5SB | Bulk | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 36 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G5SB-1 DC9RELAY GEN PURPOSE SPDT 5A 9V |
0 |
|
Технический лист |
G5SB | Bulk | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.75 VDC | 0.45 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G5SB-14-ANI DC5RELAY GEN PURPOSE SPDT 5A 5V |
0 |
|
- |
G5SB | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
OSA-SH-224DM5,000RELAY GEN PURPOSE DPST 5A 24V |
0 |
|
Технический лист |
OSA, OEG | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
|
OZ-SS-105L1RELAY GEN PURPOSE SPDT 16A 5V |
0 |
|
Технический лист |
OZ, OEG | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 3.75 VDC | 0.25 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
|
PCJ-105D2M-WG,000RELAY GEN PURPOSE SPST 5A 5V |
0 |
|
Технический лист |
PCJ, OEG | Tray | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 3.75 VDC | 0.25 VDC | 10 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, UR, VDE | General Purpose | - | - |
