Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1393215-0RELAY GEN PURP |
0 |
|
Технический лист |
V23057, SCHRACK | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 36.4 mA | Non Latching | - | PC Pin | - | - | 8.3 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
2-1393215-8RELAY GEN PURP |
0 |
|
Технический лист |
V23057, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 20 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
4-1393215-2RELAY GEN PURP |
0 |
|
Технический лист |
V23057, SCHRACK | Bulk | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 10.2 mA | Non Latching | - | PC Pin | - | - | 33.6 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
2-1393216-7RELAY GEN PURP |
0 |
|
Технический лист |
V23057, SCHRACK | Bulk | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 10.2 mA | Non Latching | - | PC Pin | - | - | 33.6 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
2-1393216-9RELAY GEN PURP |
0 |
|
Технический лист |
V23057, SCHRACK | Bulk | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 4.7 mA | Non Latching | - | PC Pin | - | - | 77 VDC | 11 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
1-1393815-7RELAY GEN PURPOSE DPDT 5A 60V |
0 |
|
Технический лист |
V23062, AXICOM | Bulk | Obsolete | Socketable | 60VDC | DPDT (2 Form C) | 5 A | 250VAC, 260VDC - Max | 1250VA, 1300W | - | Non Latching | - | Plug In | Sealed - Hermetically | - | - | - | 16 ms | 2 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
1393807-4RELAY GEN PURP |
0 |
|
- |
V23154, AXICOM | Bulk | Obsolete | Socketable | - | - | 5 A | 250VAC, 250VDC - Max | - | - | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
1-1393810-9RELAY GEN PURP |
0 |
|
- |
V23154, AXICOM | Bulk | Active | Through Hole | 7VDC | - | 5 A | 250VAC, 250VDC - Max | - | 120.7 mA | Non Latching | - | PC Pin | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
5-1393819-5RELAY GEN PURPOSE DPDT 5A 32V |
0 |
|
Технический лист |
V23162, AXICOM | Bulk | Active | Socketable | 32VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | 16.7 mA | Non Latching | - | Plug In | - | - | 16 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
G5NB1A4EDC24ARELAY GEN PURPOSE SPST 5A 24V |
0 |
|
Технический лист |
G5NB | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|

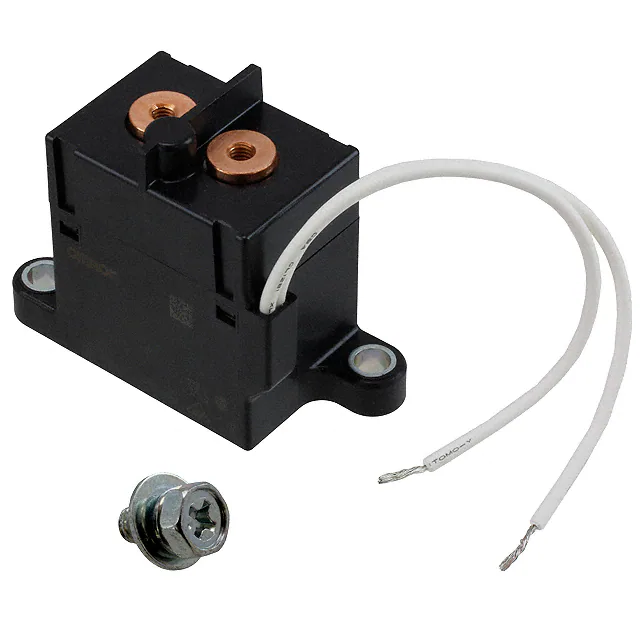

G9EN1DC12RELAY GEN PURPOSE SPST 60A 12V |
0 |
|
Технический лист |
G9EN | Bulk | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Max | 24000VA | 417 mA | Non Latching | - | Screw Terminal | - | - | 7.2 VDC | 0.6 VDC | 40 ms | 20 ms | -40°C ~ 85°C | - | CSA, UR, VDE | General Purpose | - | - |
|
|
PCF-112D1M-2,000RELAY GEN PURPOSE SPST 25A 12V |
0 |
|
Технический лист |
PCF, OEG | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 25 A | 277VAC, 24VDC - Max | 6925VA, 600W | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | 0.60 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, cURus, TUV | General Purpose | - | - |
|
|
2987312RELAY GEN PURPOSE DPST 3.5A 24V |
0 |
|
Технический лист |
PLC-RSP | Bulk | Obsolete | DIN Rail | 24VDC | DPST-NO (2 Form A) | 3.5 A | 250VAC, 30VDC - Max | - | 7 mA | Non Latching | Diode, Lighted Indicator | Spring Terminal | - | - | - | - | 4 ms | 6 ms | -20°C ~ 60°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
2987121RELAY GEN PURPOSE DPDT 6A 72V |
0 |
|
Технический лист |
PLC-RSP | Bulk | Obsolete | DIN Rail | 72VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 6 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 5 ms | 11 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
2903297RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Технический лист |
RIF | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 60 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 18 ms | 20 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
2903689RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Технический лист |
REL-OR | - | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 60 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | - | - | 18 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
2903690RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Технический лист |
REL-OR | - | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 108 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | - | - | 15 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
2903691RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
Технический лист |
REL-OR | - | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 23 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | - | - | 15 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
2903692RELAY GEN PURPOSE DPDT 10A 230V |
0 |
|
Технический лист |
REL-OR | - | Obsolete | Socketable | 230VAC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 13 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | - | - | 15 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
2903698RELAY GEN PURPOSE DPDT 16A 24V |
0 |
|
Технический лист |
REL-PR2 | - | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 16 A | 440VAC, 250VDC - Max | 7040VA, 4000W | 56 mA | Non Latching | - | Plug In | - | - | - | - | 20 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cURus, EAC, UR | General Purpose | - | - |
