Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

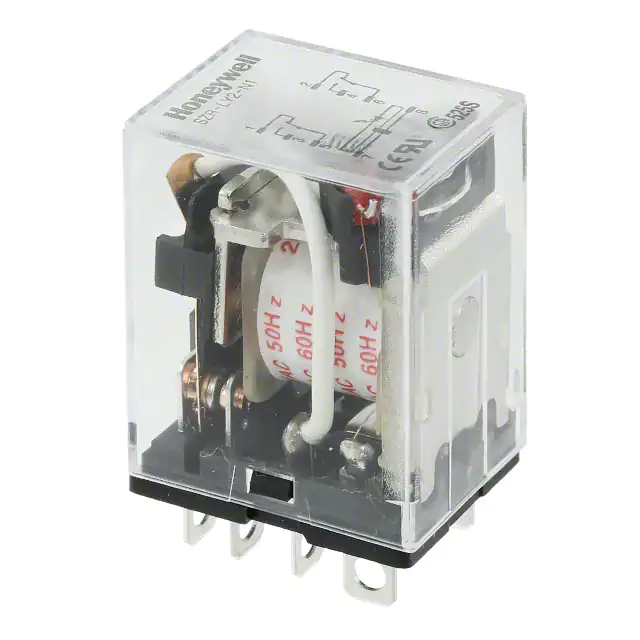

SZR-LY2-N1-DC12VRELAY GEN PURPOSE DPDT 10A 12V |
0 |
|
- |
SZR-LY | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 79 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | - | Silver Cadmium Oxide (AgCdO) | CE, CSA, UR | General Purpose | - | - |
|

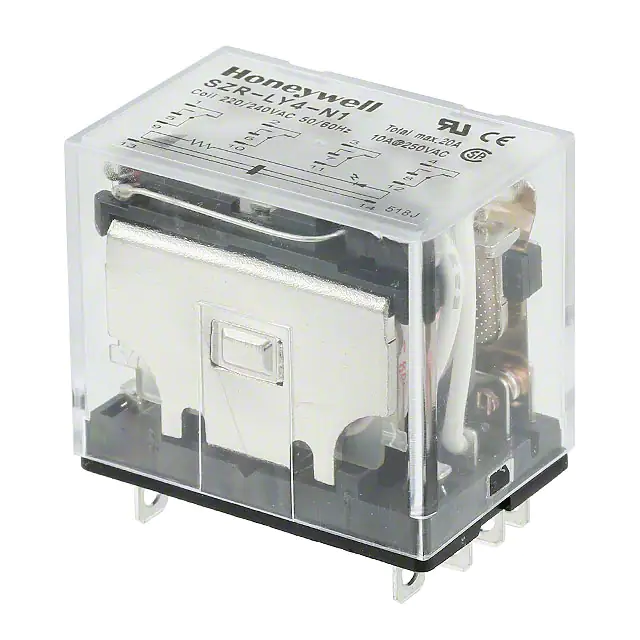

SZR-LY4-N1-DC24VRELAY GEN PURPOSE 4PDT 10A 24V |
0 |
|
- |
SZR-LY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 73 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | - | Silver Cadmium Oxide (AgCdO) | CE, CSA, UR | General Purpose | - | - |
|
|
SZR-LY4-N1-AC220VRELAY GEN PURPOSE 4PDT 10A 220V |
0 |
|
- |
SZR-LY | Bulk | Active | Socketable | 220VAC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 13.8 mA | Non Latching | Lighted Indicator | Plug In | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | - | Silver Cadmium Oxide (AgCdO) | CE, CSA, UR | General Purpose | - | - |
|
SZR-LY2-X1-DC24VRELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
- |
SZR-LY | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 40.9 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | - | Silver Cadmium Oxide (AgCdO) | CE, CSA, UR | General Purpose | - | - |
|
|
SZR-LY2-D1-DC24VRELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
- |
SZR-LY | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 36.9 mA | Non Latching | Diode | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | - | Silver Cadmium Oxide (AgCdO) | CE, CSA, UR | General Purpose | - | - |
|
|
RLY10000RELAY GEN PURPOSE DPDT 10A 12V |
0 |
|
Технический лист |
RLY1 | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 115VAC - Max | 1150VA | 100 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | - | - | 30 ms | 30 ms | -45°C ~ 60°C | - | - | General Purpose | - | - |
|
2987105RELAY GEN PURPOSE DPDT 6A 24V |
0 |
|
Технический лист |
PLC-RSP | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 12 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 11 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
5603157RELAY GEN PURPOSE SPDT 6A 120V |
0 |
|
Технический лист |
PLC-RSC | Bulk | Obsolete | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 6 ms | 15 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
5606331RELAY GEN PURPOSE SPDT 6A 12V |
0 |
|
Технический лист |
PLC-RSC | Bulk | Obsolete | DIN Rail | 12VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 15.3 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 5 ms | 8 ms | -20°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
5607072RELAY GEN PURPOSE SPDT 6A 230V |
0 |
|
Технический лист |
PLC-RSC | Bulk | Obsolete | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 7 ms | 15 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
5603154RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
Технический лист |
PLC-RSC | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 9 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 5 ms | 8 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
5606332RELAY GEN PURPOSE SPDT 6A 12V |
0 |
|
Технический лист |
PLC-RSP | Bulk | Obsolete | DIN Rail | 12VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 15.3 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 8 ms | -20°C ~ 60°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
|
2987037RELAY GEN PURPOSE SPDT 6A 72V |
0 |
|
Технический лист |
PLC-RSP | Bulk | Obsolete | DIN Rail | 72VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 2.9 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 11 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
|
2967390RELAY GEN PURPOSE SPST 6A 120V |
0 |
|
Технический лист |
PLC-RSP | Bulk | Obsolete | DIN Rail | 120VAC/DC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 6 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Gold (Au) | - | General Purpose | - | - |
|
|
2966647RELAY GEN PURPOSE SPDT 6A 230V |
0 |
|
Технический лист |
PLC-RSP | Bulk | Obsolete | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 7 ms | 15 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO), Gold (Au) | - | General Purpose | - | - |
|
|
2966553RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
- |
PLC-RSP | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 11 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 6 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | - | General Purpose | - | - |
|
|
2966498RELAY GEN PURPOSE SPDT 6A 48V |
0 |
|
Технический лист |
PLC-RSP | Bulk | Obsolete | DIN Rail | 48VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 9.2 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
|
2964526RELAY GEN PURPOSE SPDT 6A 48V |
0 |
|
Технический лист |
- | Bulk | Obsolete | DIN Rail | 48VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 7 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 7 ms | 11 ms | -20°C ~ 40°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
2952169RELAY GEN PURPOSE SPDT 5A 24V |
0 |
|
Технический лист |
EMG22-REL | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 5 A | 250VAC, 250VDC - Max | 1250VA, 120W | 21 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 9 ms | 10 ms | -20°C ~ 50°C | Silver Nickel (AgNi) | EAC | General Purpose | - | - |
|
|
2942674RELAY GEN PURPOSE SPST 24V |
0 |
|
- |
EMK 12-REL | Bulk | Obsolete | - | 24VAC/DC | SPST-NO (1 Form A) | 5 A | 250VAC, 250VDC - Max | 1250VA | - | - | Socket Included | - | - | - | - | - | - | - | - | - | EAC | General Purpose | - | - |
