Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JS1AF-F-6V-FRELAY GEN PURPOSE SPST 10A 6V |
0 |
|
Технический лист |
JS | Bulk | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 60 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 4.2 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1AF-F-9V-FRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Технический лист |
JS | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
HL2-HTM-DC48V-FRELAY GEN PURPOSE DPDT 10A 48V |
0 |
|
Технический лист |
HL | Tube | Obsolete | Chassis Mount | 48VDC | DPDT (2 Form C) | 10 A | 125VAC - Nom | - | 18.5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 38.4 VDC | 4.8 VDC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
MT326006RELAY GEN PURPOSE 3PDT 10A 6V |
0 |
|
Технический лист |
MT, SCHRACK | Tray | Active | Socketable | 6VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 2500VA | 1.1 mA | Non Latching | Test Button | Plug In, 11 Pin (Octal) | - | Class B | 4.8 VAC | 2.4 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|

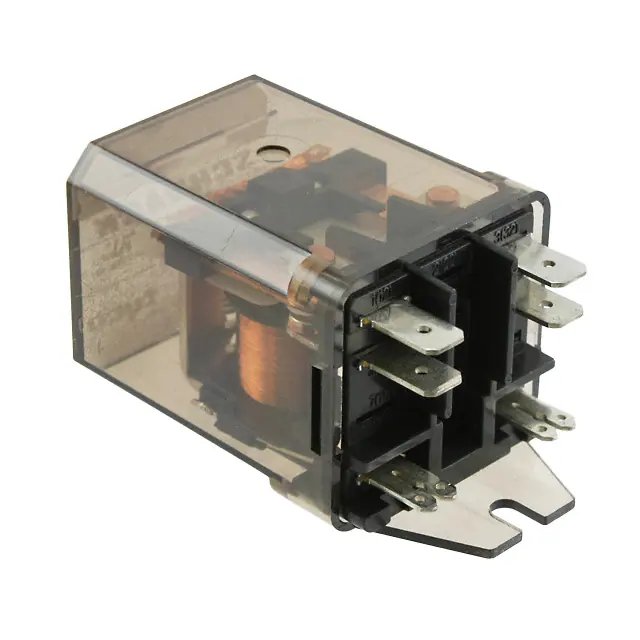

1393146-7RELAY GEN PURPOSE SPDT 30A 24V |
0 |
|
Технический лист |
RMC/D, SCHRACK | Tray | Active | Chassis Mount | 24VDC | SPDT (DB/DM) (1 Form Z) | 30 A | 440VAC - Max | 13200VA | 50 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
RM705012RELAY GEN PURPOSE 3PDT 16A 12V |
0 |
|
Технический лист |
RM, SCHRACK | Tray | Obsolete | Chassis Mount | 12VDC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 140 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|

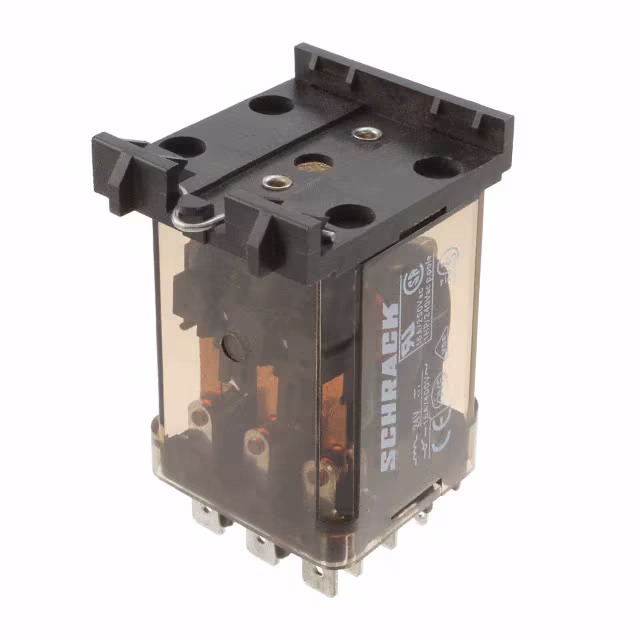

RM708024RELAY GEN PURPOSE 3PDT 16A 24V |
0 |
|
Технический лист |
RM, SCHRACK | Tray | Obsolete | DIN Rail | 24VDC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 70.8 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|

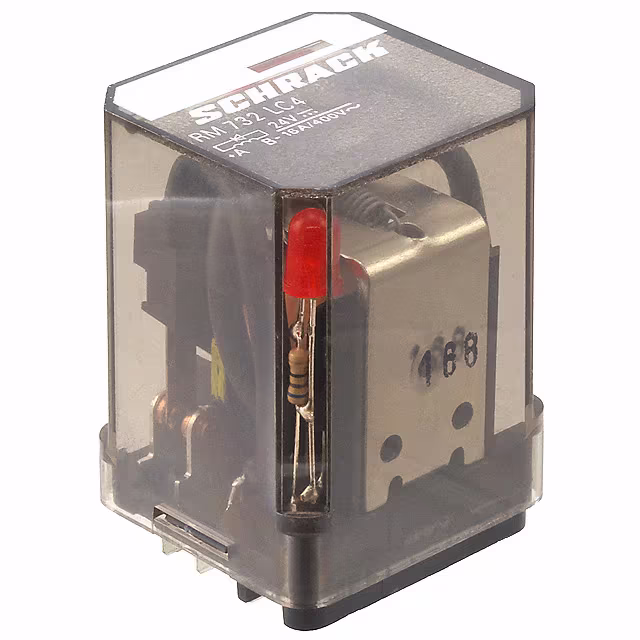

RM732LC4RELAY GEN PURPOSE 3PDT 16A 24V |
0 |
|
Технический лист |
RM, SCHRACK | Tray | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 70.8 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
RM735012RELAY GEN PURPOSE 3PDT 16A 12V |
0 |
|
Технический лист |
RM, SCHRACK | Tray | Obsolete | Chassis Mount | 12VDC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 140 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
RM835024RELAY GEN PURPOSE DPDT 25A 24V |
0 |
|
Технический лист |
RM, SCHRACK | Tray | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 50 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|

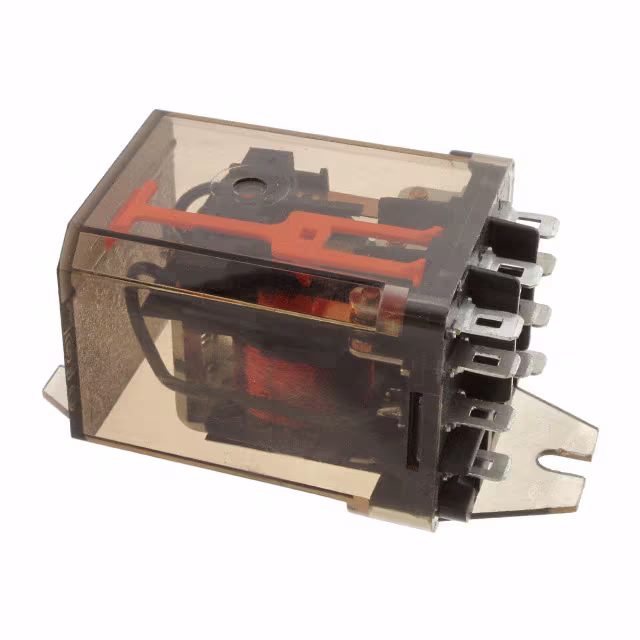

RM303012RELAY GEN PURPOSE 3PDT 10A 12V |
0 |
|
Технический лист |
RM, SCHRACK | Tray | Obsolete | Chassis Mount | 12VDC | 3PDT (3 Form C) | 10 A | 440VAC - Max | 4000VA | 109 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.187" (4.7mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
RM809024RELAY GEN PURPOSE DPDT 25A 24V |
0 |
|
Технический лист |
RM, SCHRACK | Tray | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 50 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
RM332524RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
Технический лист |
RM, SCHRACK | Tray | Active | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 440VAC - Max | 4000VA | 300 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
RM333024RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
Технический лист |
RM, SCHRACK | Tray | Active | Chassis Mount | 24VDC | 3PDT (3 Form C) | 10 A | 440VAC - Max | 4000VA | 50 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
T7CV1D-12RELAY GEN PURPOSE SPST 12A 12V |
0 |
|
Технический лист |
T7C | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 240VAC, 24VDC - Max | 2880VA, 288W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR, VDE | General Purpose | - | - |
|
T90N1D42-48RELAY GEN PURPOSE SPST 30A 48V |
0 |
|
Технический лист |
T90 | Tray | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 19 mA | Non Latching | - | PC Pin | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
T90N5D42-12RELAY GEN PURPOSE SPDT 20A 12V |
0 |
|
Технический лист |
T90 | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 4155VA | 77 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
T90N5D42-24RELAY GEN PURPOSE SPDT 20A 24V |
0 |
|
Технический лист |
T90 | Tray | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 4155VA | 36 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
T90S1D42-110RELAY GEN PURPOSE SPST 30A 110V |
0 |
|
Технический лист |
T90 | Bulk | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
V23057A 1A401RELAY GEN PURPOSE SPDT 8A 6V |
0 |
|
Технический лист |
V23057, SCHRACK | Tray | Active | Through Hole | 6VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 75 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.6 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
