Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T9GS2L14-15RELAY GEN PURPOSE SPST 20A 15V |
326 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 15VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 11.25 VDC | 1.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
RTB34012RELAY GEN PURPOSE SPST 12A 12V |
992 |
|
Технический лист |
RT1, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
J1511CF120VAC1.2RELAY GEN PURPOSE SPDT 20A 120V |
395 |
|
Технический лист |
J151 | Tray | Active | Chassis Mount | 120VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 26.4 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
T9GS2L14-24RELAY GEN PURPOSE SPST 20A 24V |
982 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
G5RL-U1-E DC24RELAY GEN PURPOSE SPDT 16A 24V |
224 |
|
Технический лист |
G5RL-U | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 25 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|

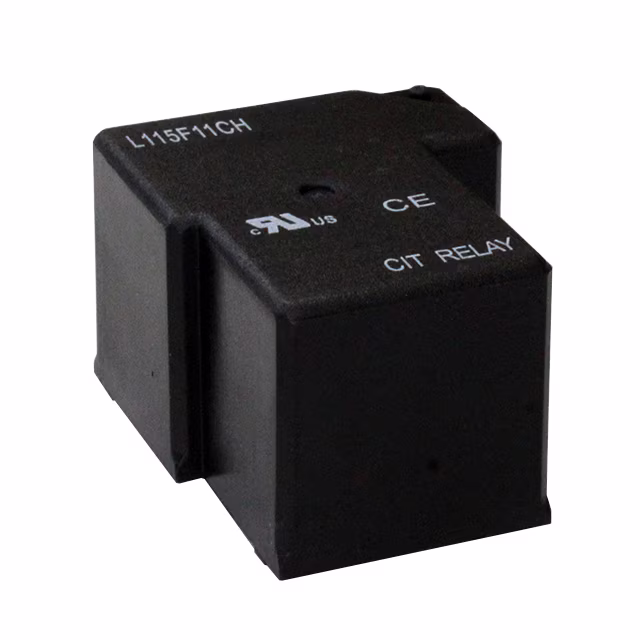

L115F11CH24VDCS1.5URELAY GEN PURPOSE SPDT 50A 24V |
298 |
|
Технический лист |
L115F1 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 19.2 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
RTD14048RELAY GEN PURPOSE SPDT 16A 48V |
6,784 |
|
Технический лист |
RT1, SCHRACK | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
1393219-8RELAY GEN PURPOSE SPDT 5A 18V |
490 |
|
Технический лист |
PE, SCHRACK | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 11.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | - | - | 8 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
T9GV2L24-5RELAY GEN PURPOSE SPST 20A 5V |
393 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 180 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 3.75 VDC | 0.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
G6B-1114P-US DC9RELAY GEN PURPOSE SPST 5A 9V |
944 |
|
Технический лист |
G6B | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
RY613012RELAY GEN PURPOSE SPDT 8A 12V |
515 |
|
Технический лист |
RY, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 19.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
T9GS2L24-18RELAY GEN PURPOSE SPST 20A 18V |
418 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 18VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 50 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
T9GS2L24-5RELAY GEN PURPOSE SPST 20A 5V |
281 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 180 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
J1511CT12VDC.9DRELAY GEN PURPOSE SPDT 20A 12V |
237 |
|
Технический лист |
J151 | Tray | Active | Socketable | 12VDC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 75 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
RT114018RELAY GEN PURPOSE SPDT 12A 18V |
689 |
|
Технический лист |
RT1, SCHRACK | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 23.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 12.6 VDC | 1.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
J1511CT48VDC.9RELAY GEN PURPOSE SPDT 20A 48V |
246 |
|
Технический лист |
J151 | Tray | Active | Socketable | 48VDC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 18.5 mA | Non Latching | - | Plug In | - | - | 36 VDC | 4.8 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
J1511CF48VDC.9RELAY GEN PURPOSE SPDT 20A 48V |
179 |
|
Технический лист |
J151 | Tray | Active | Chassis Mount | 48VDC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 18.5 mA | Non Latching | - | Plug In | - | - | 36 VDC | 4.8 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
G5RL-1A4-E-TV8 DC12RELAY GEN PURPOSE SPST 16A 12V |
173 |
|
Технический лист |
G5RL | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
|
AM2C05PCLD02400GRELAY GEN PURPOSE DPDT 5A 24V |
973 |
|
Технический лист |
AM | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 277VAC, 28VDC - Max | 1385VA, 140W | 36.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Nickel (AgNi) | cURus, UL | General Purpose | - | - |
|
|
J1511CT240VAC1.2RELAY GEN PURPOSE SPDT 20A 240V |
250 |
|
Технический лист |
J151 | Tray | Active | Socketable | 240VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 12.6 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
