Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC4D-HPL-AC240VRELAY GEN PURPOSE 4PDT 3A 240V |
0 |
|
Технический лист |
HC | Bulk | Obsolete | Through Hole | 240VAC | 4PDT (4 Form C) | 3 A | 250VAC - Max | 750VA | 5 mA | Non Latching | Lighted Indicator | PC Pin | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -50°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR, VDE | General Purpose | - | - |
|
HC4D-HTM-AC115VRELAY GEN PURPOSE 4PDT 3A 115V |
0 |
|
Технический лист |
HC | Bulk | Obsolete | Chassis Mount | 115VAC | 4PDT (4 Form C) | 3 A | 250VAC - Max | 750VA | 11.4 mA | Non Latching | - | Plug In | - | - | 92 VAC | 34.5 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR, VDE | General Purpose | - | - |
|
|
HC4D-HTM-DC12VRELAY GEN PURPOSE 4PDT 3A 12V |
0 |
|
Технический лист |
HC | Bulk | Obsolete | Chassis Mount | 12VDC | 4PDT (4 Form C) | 3 A | 250VAC - Max | 750VA | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR, VDE | General Purpose | - | - |
|
|
HC4D-HTM-DC48VRELAY GEN PURPOSE 4PDT 3A 48V |
0 |
|
Технический лист |
HC | Bulk | Obsolete | Chassis Mount | 48VDC | 4PDT (4 Form C) | 3 A | 250VAC - Max | 750VA | 18.5 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR, VDE | General Purpose | - | - |
|
HG2-AC12VRELAY GEN PURPOSE DPDT 20A 12V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 12VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 300 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 9.6 VAC | 3.6 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG2-AC200VRELAY GEN PURPOSE DPDT 20A 200V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 200VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 18 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 160 VAC | 60 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG2-AC220VRELAY GEN PURPOSE DPDT 20A 220V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 220VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 16.4 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 176 VAC | 66 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG2-AC240VRELAY GEN PURPOSE DPDT 20A 240V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 240VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 15 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 192 VAC | 72 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG2-AC24VRELAY GEN PURPOSE DPDT 20A 24V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 150 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG2-AC48VRELAY GEN PURPOSE DPDT 20A 48V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 48VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 38.4 VAC | 14.4 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG2-AC6VRELAY GEN PURPOSE DPDT 20A 6V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 6VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 600 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 4.8 VAC | 1.8 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG2-DC110VRELAY GEN PURPOSE DPDT 20A 110V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 14.4 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 88 VDC | 11 VDC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|

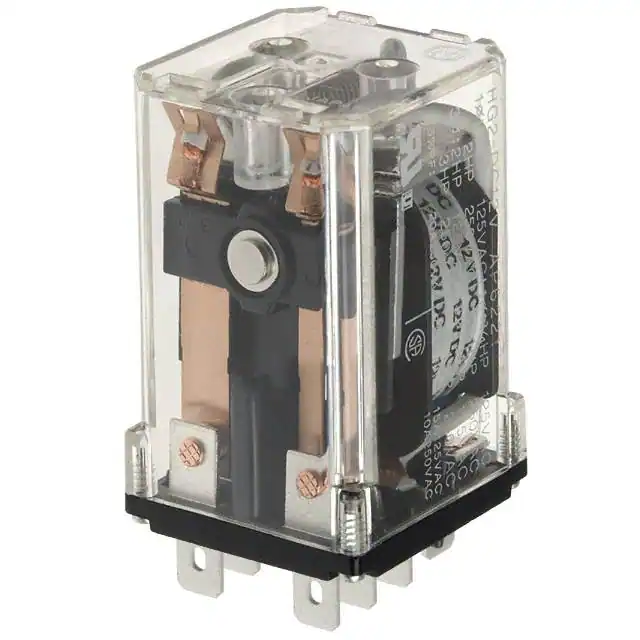

HG2-DC12VRELAY GEN PURPOSE DPDT 20A 12V |
0 |
|
Технический лист |
HG | Tube | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 120 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 9.6 VDC | 1.2 VDC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG2-DC24VRELAY GEN PURPOSE DPDT 20A 24V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 57.6 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG2-DC48VRELAY GEN PURPOSE DPDT 20A 48V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 30.3 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 38.4 VDC | 4.8 VDC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG2-DC6VRELAY GEN PURPOSE DPDT 20A 6V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 6VDC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 230 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 4.8 VDC | 0.6 VDC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG3-AC115VRELAY GEN PURPOSE 3PDT 20A 115V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 115VAC | 3PDT (3 Form C) | 20 A | 250VAC - Nom | - | 45.2 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 92 VAC | 34.5 VAC | 25 ms | 25 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG3-AC220VRELAY GEN PURPOSE 3PDT 20A 220V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 220VAC | 3PDT (3 Form C) | 20 A | 250VAC - Nom | - | 23.6 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG3-AC240VRELAY GEN PURPOSE 3PDT 20A 240V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 240VAC | 3PDT (3 Form C) | 20 A | 250VAC - Nom | - | 21.6 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
HG3-AC24VRELAY GEN PURPOSE 3PDT 20A 24V |
0 |
|
Технический лист |
HG | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 20 A | 250VAC - Nom | - | 216 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -50°C ~ 40°C | Silver Alloy | CSA, UR | General Purpose | - | - |
