Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

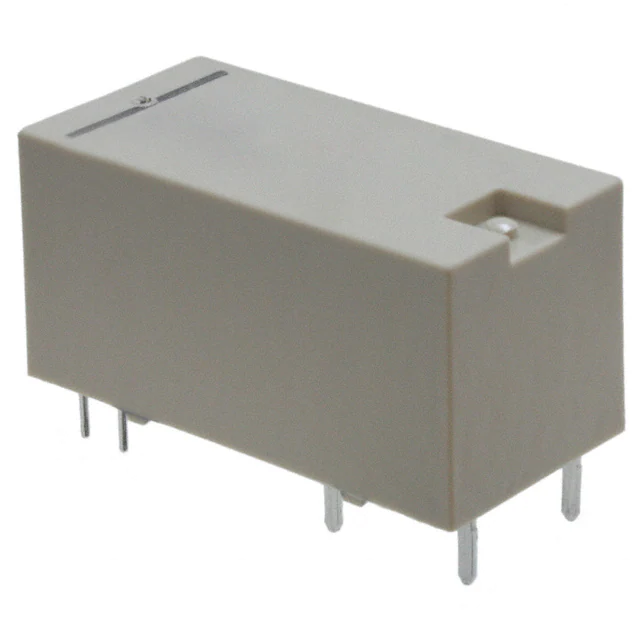

DE1A-L2-3VRELAY GEN PURPOSE SPST 10A 3V |
0 |
|
Технический лист |
DE | Bag | Obsolete | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 66.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 2.1 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
DE1A1B-L-5VRELAY GEN PURPOSE DPST 8A 5V |
0 |
|
Технический лист |
DE | Tube | Obsolete | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 20 mA | Latching, Single Coil | - | PC Pin | - | - | 3.5 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
DK1A-3VRELAY GEN PURPOSE SPST 10A 3V |
0 |
|
Технический лист |
DK | Tube | Obsolete | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.3 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
DK1A-6VRELAY GEN PURPOSE SPST 10A 6V |
0 |
|
Технический лист |
DK | Tube | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
DK1A-9VRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Технический лист |
DK | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
DK1A-L-12VRELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Технический лист |
DK | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 16.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
DK1A-L-24VRELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Технический лист |
DK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 8.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
DK1A-L2-3VRELAY GEN PURPOSE SPST 10A 3V |
0 |
|
Технический лист |
DK | Tube | Obsolete | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 66.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 2.1 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
DK1A-L2-6VRELAY GEN PURPOSE SPST 10A 6V |
0 |
|
Технический лист |
DK | Tube | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 33.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4.2 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
DK1A-L2-9VRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Технический лист |
DK | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 22.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 6.3 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
DSP1-DC12V-RRELAY GEN PURPOSE DPST 5A 12V |
0 |
|
Технический лист |
DSP | Bulk | Obsolete | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 25 mA | Non Latching | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
DSP1-DC15VRELAY GEN PURPOSE DPST 5A 15V |
0 |
|
Технический лист |
DSP | Bulk | Obsolete | Through Hole | 15VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 12 VDC | 1.5 VDC | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
DSP1-DC1.5VRELAY GEN PURPOSE DPST 5A 1.5V |
0 |
|
Технический лист |
DSP | Bulk | Obsolete | Through Hole | 1.5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 200 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 1.2 VDC | 0.15 VDC | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
DSP1-DC24V-RRELAY GEN PURPOSE DPST 5A 24V |
0 |
|
Технический лист |
DSP | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 12.5 mA | Non Latching | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
DSP1-DC3VRELAY GEN PURPOSE DPST 5A 3V |
0 |
|
Технический лист |
DSP | Bulk | Obsolete | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.4 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
DSP1-DC5V-RRELAY GEN PURPOSE DPST 5A 5V |
0 |
|
Технический лист |
DSP | Bulk | Obsolete | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 60 mA | Non Latching | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
DSP1-DC6V-RRELAY GEN PURPOSE DPST 5A 6V |
0 |
|
Технический лист |
DSP | Bulk | Obsolete | Through Hole | 6VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 50 mA | Non Latching | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
DSP1-DC9V-RRELAY GEN PURPOSE DPST 5A 9V |
0 |
|
Технический лист |
DSP | Bulk | Obsolete | Through Hole | 9VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 33.3 mA | Non Latching | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 7.2 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
DSP1-L-DC12VRELAY GEN PURPOSE DPST 5A 12V |
0 |
|
Технический лист |
DSP | Bulk | Obsolete | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 12.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 9.6 VDC | - | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
DSP1-L-DC24VRELAY GEN PURPOSE DPST 5A 24V |
0 |
|
Технический лист |
DSP | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 6.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 19.2 VDC | - | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
