Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JS1A-B-12V-FRELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Технический лист |
JS | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1A-B-24V-FRELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Технический лист |
JS | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1A-B-5V-FRELAY GEN PURPOSE SPST 10A 5V |
0 |
|
Технический лист |
JS | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 72 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1A-B-9V-FRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Технический лист |
JS | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1-B-12VRELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
Технический лист |
JS | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1-B-12V-FRELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
Технический лист |
JS | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1-B-24V-FRELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
Технический лист |
JS | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1-B-9V-FRELAY GEN PURPOSE SPDT 10A 9V |
0 |
|
Технический лист |
JS | Bulk | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JTN1AS-TMP-F-DC12VRELAY GEN PURPOSE SPST 30A 12V |
0 |
|
Технический лист |
JT-N | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 66.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, UR | General Purpose | - | - |
|
|
JTN1AS-TMP-F-DC24VRELAY GEN PURPOSE SPST 30A 24V |
0 |
|
Технический лист |
JT-N | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 33.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, UR | General Purpose | - | - |
|
JTN1S-PA-F-DC12VRELAY GEN PURPOSE SPDT 20A 12V |
0 |
|
Технический лист |
JT-N | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, UR | General Purpose | - | - |
|
|
JTN1S-TMP-F-DC12VRELAY GEN PURPOSE SPDT 20A 12V |
0 |
|
Технический лист |
JT-N | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 66.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, UR | General Purpose | - | - |
|
JW1AFSN-DC5VRELAY GEN PURPOSE SPST 10A 5V |
0 |
|
Технический лист |
JW | Tray | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 106 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
PA1A-24VRELAY GEN PURPOSE SPST 5A 24V |
0 |
|
Технический лист |
PA | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, TUV, UR | General Purpose | - | - |
|
|
PA1A-5VRELAY GEN PURPOSE SPST 5A 5V |
0 |
|
Технический лист |
PA | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 24 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, TUV, UR | General Purpose | - | - |
|
G6C-1117P-US-DC18RELAY GEN PURPOSE SPST 10A 18V |
0 |
|
Технический лист |
G6C | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 11.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 12.6 VDC | 1.8 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|

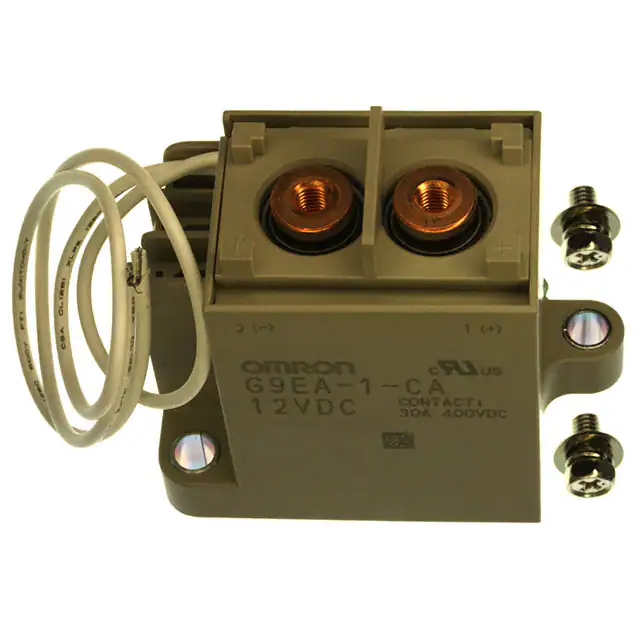

G9EA-1-CA DC12RELAY GEN PURPOSE SPST 30A 12V |
0 |
|
Технический лист |
G9EA-1 | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 400VDC - Max | 12000W | 417 mA | Non Latching | - | Wire Leads | Sealed - Fully | - | 9 VDC | 0.96 VDC | 50 ms | 30 ms | -40°C ~ 70°C | - | cURus | General Purpose | - | - |
|
G9EC-1 DC24RELAY GEN PURPOSE SPST 200A 24V |
0 |
|
Технический лист |
G9EC-1 | Bulk | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 200 A | 400VDC - Max | 80000VA | 469 mA | Non Latching | - | Wire Leads | Sealed - Fully | - | 18 VDC | 1.92 VDC | 50 ms | 30 ms | -40°C ~ 50°C | - | cURus | General Purpose | - | - |
|
HC2HDC24RELAY GEN PURPOSE DPDT 7A 24V |
0 |
|
Технический лист |
HC | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 37 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
APE30024RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
Технический лист |
APE | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | - | 7 mA | Non Latching | - | PC Pin | - | - | 15.84 VDC | 1.2 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Alloy | - | General Purpose | - | - |
