Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCA-150-BY4FCA-150-BY4=RELAY |
0 |
|
- |
FCA-150, CII | Bulk | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | - | 96.6 mA | Non Latching | Diode | Solder Hook, Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
SF5A51145S01SF5A51145S01=SENSITIVE FULL SIZE |
0 |
|
- |
SF5 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SF5A53145S01SF5A53145S01=SENSITIVE FULL SIZE |
0 |
|
- |
SF5 | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 5 A | 115VAC, 28VDC - Max | 575VA, 140W | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 15 ms | 10 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|

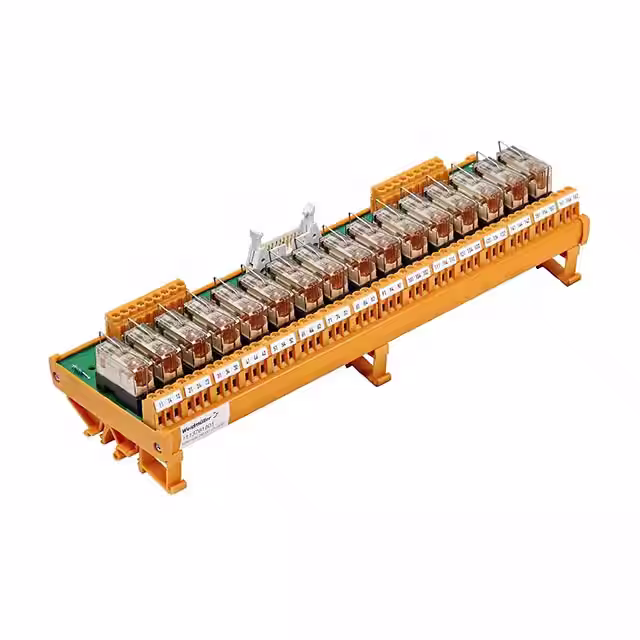

1113761001RELAY GEN PURPOSE SPDT 6A 24V |
1 |
|
Технический лист |
RSM | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) x 16 | 6 A | 250VAC - Max | 1500VA | 23 mA | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 8 ms | 7 ms | -25°C ~ 50°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
|
2-1618401-7K43P-02=RELAY, VACUUM SPDT LATCH |
0 |
|
- |
K43, KILOVAC | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FCA-210-EY7FCA-210-EY7 |
0 |
|
- |
FCA-210, CII | Bulk | Active | Chassis Mount | 28VAC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 100 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 22 VAC | 1.25 VAC | 15 ms | 50 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
K41C534K41C534=RELAY, VACUUM, SPDT |
0 |
|
- |
K41, KILOVAC | Bulk | Active | Panel Mount | 115VDC | SPDT (1 Form C) | 30 A | 5000VDC - Nom | - | 24.5 mA | Non Latching | - | Wire Leads | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
K43R334K43R334=RELAY, VACUUM, SPDT-LA |
0 |
|
Технический лист |
K43, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 24 A | 10000VDC - Nom | - | 331.3 mA | Latching, Single Coil | - | Wire Leads | Sealed - Vacuum | - | 16 VDC | - | 6 ms | - | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
8501XUDO1200V63RELAY 250VDC 5AMP NEMA +OPTIONS |
0 |
|
Технический лист |
Square D 8501X | Box | Active | Chassis Mount | 125VDC | 12PST-NO (12 Form A) | 10 A | 600VAC, 250VDC - Max | 6000VA, 2500W | - | Non Latching | - | Screw Terminal | - | - | - | - | 37 ms | 21 ms | -40°C ~ 71°C | - | CSA, UL | General Purpose | - | - |
|
|
K41A934K41A934=RELAY, VACUUM, SPST-NO |
0 |
|
- |
K41, KILOVAC | Bulk | Active | Panel Mount | 115VDC | SPST-NO (1 Form A) | 30 A | 5000VDC - Nom | - | 24.5 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
K41B934K41B934=RELAY, VACUUM, SPST-NC |
0 |
|
- |
K41, KILOVAC | Bulk | Active | Panel Mount | 115VDC | SPST-NC (1 Form B) | 30 A | 5000VDC - Nom | - | 24.5 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
4-1618013-5PD5C235=RELAY, VACUUM, SPDT |
0 |
|
Технический лист |
PD5, KILOVAC | Bulk | Active | Panel Mount | 125VDC | SPDT (1 Form C) | 15 A | - | - | 26.6 mA | Non Latching | - | PC Pin | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
6-1618239-8K41R-02=RELAY, VACUUM, SPDT, L |
0 |
|
- |
K41, KILOVAC | Bulk | Active | Panel Mount | - | SPDT (1 Form C) | 30 A | 5000VDC - Nom | - | - | Latching, Single Coil | - | Wire Leads | Sealed - Vacuum | - | - | - | 6 ms | - | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
FCA-150-CR4RELAY SPST 50A 28V |
0 |
|
- |
FCA-150, CII | Bulk | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | - | 96.6 mA | Non Latching | - | Solder Hook, Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | - | General Purpose | - | - |
|
|
4-1618013-9PD5C345=RELAY, VACUUM, SPDT |
0 |
|
Технический лист |
PD5, KILOVAC | Bulk | Active | Panel Mount | 125VDC | SPDT (1 Form C) | 15 A | - | - | 26.6 mA | Non Latching | - | - | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
5-1618013-2RELAY SPDT 5A 125V |
0 |
|
Технический лист |
PD5, KILOVAC | Bulk | Active | Panel Mount | 125VDC | SPDT (1 Form C) | 15 A | - | - | 26.6 mA | Non Latching | - | PC Pin | - | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
5-1618013-3PD5C545=RELAY, VACUUM, SPDT |
0 |
|
Технический лист |
PD5, KILOVAC | Bulk | Active | Panel Mount | 125VDC | SPDT (1 Form C) | 15 A | - | - | 26.6 mA | Non Latching | - | - | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
2-1423155-7RELAY GEN PURPOSE |
0 |
|
- |
GP, AGASTAT | Bulk | Active | Socketable | 125VDC | 4PDT (4 Form C) | 10 A | - | - | - | Non Latching | Magnetic Blowout | Plug In | - | - | 94 VDC | 12.5 VDC | 15 ms | 30 ms | 0°C ~ 60°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
HC-6/12VDCHC-6/12VDC=RELAY, PRESSURIZED, |
0 |
|
- |
HC, KILOVAC | Bulk | Discontinued | Panel Mount | 12VDC | SPDT (1 Form C) | 8 A | - | - | 150 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 8 VDC | 0.5 VDC | 6 ms | 6 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
K41C934K41C934=RELAY, VACUUM, SPDT |
0 |
|
- |
K41, KILOVAC | Bulk | Active | Panel Mount | 115VDC | SPDT (1 Form C) | 30 A | 5000VDC - Nom | - | 24.5 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
