Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5-1617785-7FCA-410-1521L=M83536/15-021L |
0 |
|
Технический лист |
FCA-410, CII | Bulk | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 115VAC, 28VDC - Max | 1150VA, 280W | 96.6 mA | Non Latching | Diode | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
1449210000RSM-16 24V+ 2CO S |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 24VDC | DPDT (2 Form C) x 16 | 5 A | 250VAC - Max | 1250VA | 16.7 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1449220000RSM-16 24V- 2CO S |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 24VDC | DPDT (2 Form C) x 16 | 5 A | 250VAC - Max | 1250VA | 16.7 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1449170000RSM-16 12V+ 2CO S |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 12VDC | DPDT (2 Form C) x 16 | 5 A | 250VAC - Max | 1250VA | 33 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1449270000RSM-16 48V+ 2CO S |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 48VDC | DPDT (2 Form C) x 16 | 5 A | 250VAC - Max | 1250VA | 8.7 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1449280000RSM-16 48V- 2CO S |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 48VDC | DPDT (2 Form C) x 16 | 5 A | 250VAC - Max | 1250VA | 8.7 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1449180000RSM-16 12V- 2CO S |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 12VDC | DPDT (2 Form C) x 16 | 5 A | 250VAC - Max | 1250VA | 33 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
5-1393817-7RELAY GEN PURPOSE DPDT 5A 60V |
0 |
|
Технический лист |
V23003, AXICOM | Bulk | Active | Socketable | 60VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | 25 mA | Latching, Dual Coil | - | Plug In | - | - | 44 VDC | - | - | - | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|

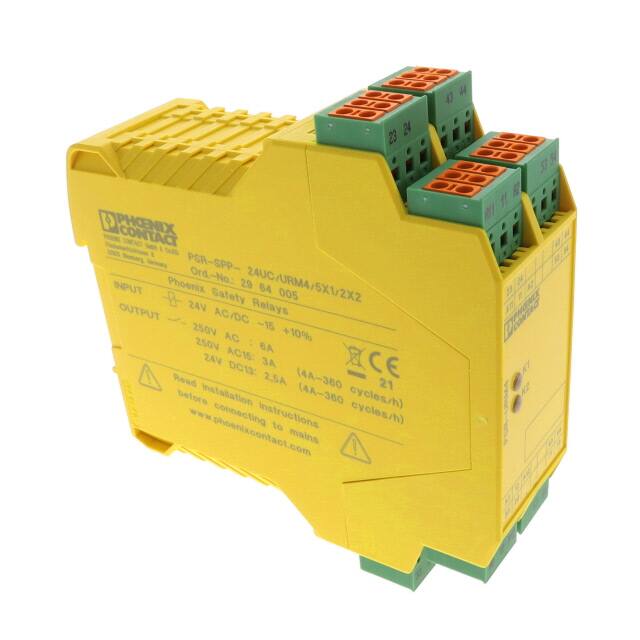

2964005RELAY GEN PURPOSE SPST 6A 24V |
0 |
|
Технический лист |
- | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPST-NC (1 Form B) | 6 A | 250VAC, 250VDC - Max | - | - | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 20 ms | 20 ms | -20°C ~ 55°C | Silver Tin Oxide (AgSnO), Gold (Au) | - | General Purpose | - | - |
|
|
1449070000RSM-8 115VAC/DC 2CO Z |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 115VAC/DC | DPDT (2 Form C) x 8 | 5 A | 250VAC - Max | 1250VA | 3.3 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1457330000RSMS-16H 24V- 1CO Z |
0 |
|
Технический лист |
- | Box | Active | Chassis Mount | 24VDC | SPDT (1 Form C) x 16 | 4.5 A | 250VAC - Max | 1125VA | 7.1 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1457110000RSMS-16 48V- 1CO Z |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 48VDC | SPDT (1 Form C) x 16 | 4.5 A | 250VAC - Max | 1125VA | 4.5 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1457070000RSMS-16 48V+ 1CO Z |
0 |
|
Технический лист |
- | Box | Active | Chassis Mount | 48VDC | SPDT (1 Form C) x 16 | 4.5 A | 250VAC - Max | 1125VA | 4.5 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
|
6-1617529-6FW1062S10=2020-FW RELAY |
0 |
|
- |
FW, CII | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 3 A | - | - | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
880111100RELAY HD 12V BERGSTROM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3-1617003-3B07B932BZ1-8010 = 07 10AMP REL |
0 |
|
Технический лист |
07, CII | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 115VAC, 30VDC - Nom | - | 133.3 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 6.7 VDC | 1 VDC | 13 ms | 5 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
8501XDO20V62RELAY 600VAC 10AMP NEMA +OPTIONS |
0 |
|
Технический лист |
Square D 8501X | Box | Active | Socketable | 115 ~ 125VDC | DPST-NO (2 Form A) | 10 A | 600VAC - Max | 6000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | 37 ms | 21 ms | -40°C ~ 71°C | - | CSA, UL | General Purpose | - | - |
|
|
8501XDO20V66RELAY 600VAC 10AMP NEMA +OPTIONS |
0 |
|
Технический лист |
Square D 8501X | Box | Obsolete | Socketable | 230 ~ 250VDC | DPST-NO (2 Form A) | 10 A | 600VAC - Max | 6000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | 37 ms | 21 ms | -40°C ~ 71°C | - | CSA, UL | General Purpose | - | - |
|
|
FW1301G02FW1301G02 = M5757/10-053 |
0 |
|
- |
FW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 3 A | - | - | 39.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.47 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
9-1617751-3FCA-210-BZ8 |
0 |
|
Технический лист |
FCA-210, CII | Bulk | Active | Chassis Mount | 115VAC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 40 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 90 VAC | 5 VAC | 15 ms | 50 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
