Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KUP-5D15-24RELAY GEN PURPOSE SPDT 10A 24V |
103 |
|
Технический лист |
KUP | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KUP-14AE5-24RELAY GEN PURPOSE 3PDT 10A 24V |
137 |
|
Технический лист |
KUP | Bulk | Active | Chassis Mount | 24VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 115 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KHAU-17D11-48RELAY GEN PURPOSE 4PDT 3A 48V |
176 |
|
Технический лист |
KHA | Tray | Active | Socketable | 48VDC | 4PDT (4 Form C) | 3 A | 240VAC - Nom | - | 18.8 mA | Non Latching | - | Plug In | - | Class B | 36 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|

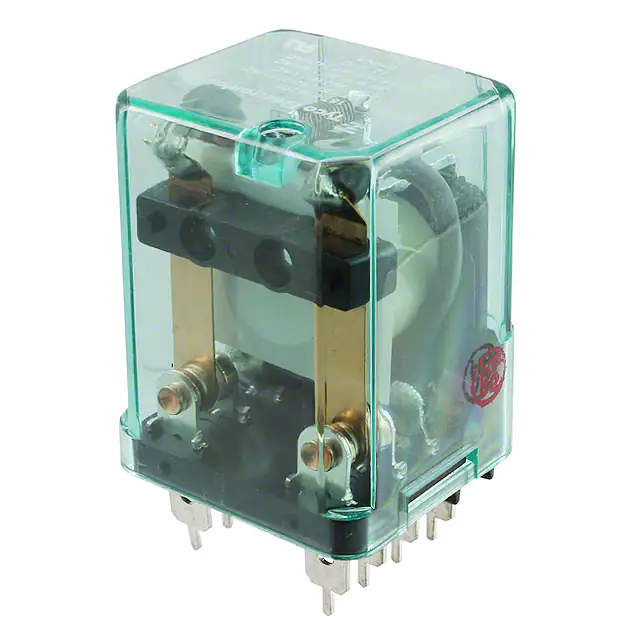

18782B200RELAY GEN PURPOSE DPDT 20A 12V |
129 |
|
Технический лист |
187 | Tray | Active | Through Hole | 12VDC | DPDT (2 Form C) | 20 A | 240VAC, 28VDC - Max | 4800VA, 560W | 100 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
K10P-11A15-6RELAY GEN PURPOSE DPDT 15A 6V |
154 |
|
Технический лист |
K10 | Tray | Active | Socketable | 6VAC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 200 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 5.1 VAC | 0.6 VAC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KRPA-11DY-12RELAY GEN PURPOSE DPDT 5A 12V |
150 |
|
Технический лист |
KRPA | Tray | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 240VAC - Max | 1200VA | 100 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 9 VDC | - | - | - | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
KUP-11D15-110RELAY GEN PURPOSE DPDT 10A 110V |
128 |
|
Технический лист |
KUP | Bulk | Active | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 11 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 82.5 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
SP2-DC12VRELAY GEN PURPOSE DPDT 15A 12V |
118 |
|
Технический лист |
SP | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 3750VA, 450W | 25 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 8.4 VDC | 1.2 VDC | 30 ms | 20 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
|
SP2-L2-DC5VRELAY GEN PURPOSE DPDT 15A 5V |
123 |
|
Технический лист |
SP | Box | Active | Socketable | 5VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 3750VA, 450W | 60.2 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 3.5 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
SP2-P-DC5VRELAY GEN PURPOSE DPDT 15A 5V |
144 |
|
Технический лист |
SP | Box | Active | Through Hole | 5VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 3750VA, 450W | 60.2 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 30 ms | 20 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|

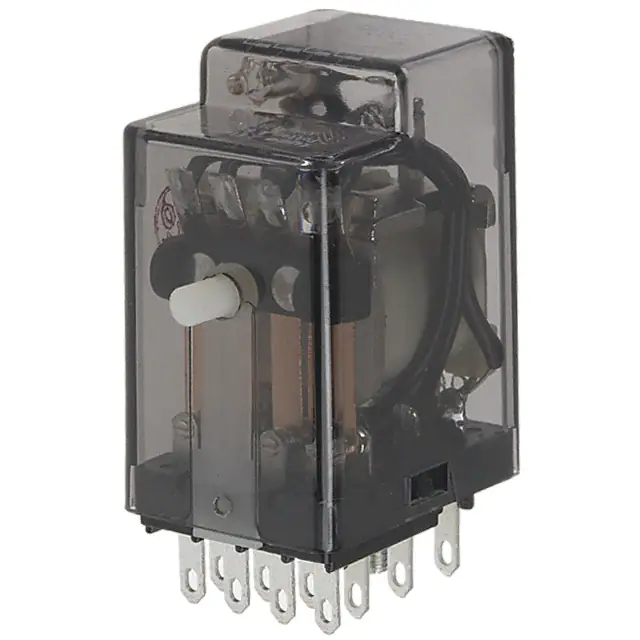

KHAU-17A12H-120RELAY GEN PURPOSE 4PDT 5A 120V |
485 |
|
Технический лист |
KHA | Bulk | Active | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 11 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | Class B | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
SP4-L2-DC5VRELAY GEN PURPOSE 4PDT 10A 5V |
122 |
|
Технический лист |
SP | Box | Active | Socketable | 5VDC | 4PDT (4 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 60.2 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 3.5 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
KRPA-14AG-24RELAY GEN PURPOSE 3PDT 10A 24V |
127 |
|
Технический лист |
KRPA | Tray | Active | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 84 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 20.4 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
T92S7A12-24RELAY GEN PURPOSE DPST 30A 24V |
23 |
|
Технический лист |
T92 | Bulk | Active | Through Hole | 24VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 167 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 19.2 VAC | 2.4 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
2909522RELAY GEN PURPOSE SPDT 6A 12V |
227 |
|
Технический лист |
PLC-RSC | Bulk | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 15.3 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
T92S7A22-208RELAY GEN PURPOSE DPST 30A 208V |
117 |
|
Технический лист |
T92 | Bulk | Active | Chassis Mount | 208VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 19.2 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 166.4 VAC | 20.8 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
KUP-11A15-240RELAY GEN PURPOSE DPDT 10A 240V |
125 |
|
Технический лист |
KUP | Bulk | Active | Socketable | 240VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 8.8 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 204 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
T92S11D12-48RELAY GEN PURPOSE DPDT 30A 48V |
118 |
|
Технический лист |
T92 | Tray | Active | Through Hole | 48VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 35.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
KHAU-17A11N-120RELAY GEN PURPOSE 4PDT 3A 120V |
186 |
|
Технический лист |
KHA | Tray | Active | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 240VAC - Nom | - | 11 mA | Non Latching | Lighted Indicator | Plug In | - | Class B | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
KUP-14A11-120RELAY GEN PURPOSE 3PDT 5A 120V |
101 |
|
Технический лист |
KUP | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 5 A | 240VAC - Max | 1200VA | 24 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
