Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCB-205-0206MFCB-205-0206M=M83536/2-006M |
0 |
|
- |
FCB-205, CII | Bulk | Active | Chassis Mount | 6VDC | DPDT (2 Form C) | 5 A | - | - | 300 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 4.5 VDC | 0.3 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
FCB-405-0612LFCB-405-0612L=M83536/6-012L |
0 |
|
- |
FCB-405, CII | Bulk | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 5 A | 115VAC, 28VDC - Max | 575VA, 140W | 153.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9 VDC | 0.75 VDC | 6 ms | 6 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
4-1617791-2FCA-125-3601L=M83536/36-001L |
0 |
|
- |
FCA-125, CII | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 87.5 mA | Non Latching | Diode | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
MM2PN DC24RELAY GEN PURPOSE DPDT 7.5A 24V |
0 |
|
Технический лист |
MM | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 7.5 A | 250VAC, 250VDC - Max | 1700VA, 120W | 87 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 16.8 VDC | 2.4 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM2P-DC24RELAY GEN PURPOSE DPDT 7.5A 24V |
0 |
|
Технический лист |
MM | Bulk | Discontinued | Socketable | 24VDC | DPDT (2 Form C) | 7.5 A | 250VAC, 250VDC - Max | 1700VA, 120W | 87 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 16.8 VDC | 2.4 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM4XKP AC100/(110)RELAY GEN PURPOSE 4PDT 5A 110V |
0 |
|
Технический лист |
MMK | Bulk | Discontinued | Socketable | 110VAC | 4PDT (4 Form C) | 5 A | 250VAC, 250VDC - Max | 20VA, 700W | 35 mA | Latching, Dual Coil | - | Plug In, 15 Pin (Octal) | - | - | 88 VAC | - | 30 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
4-1617791-3FCA-125-3602L=M83536/36-002L |
0 |
|
- |
FCA-125, CII | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 87.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
1-1617585-8FW1201E02=RELAY |
0 |
|
- |
FW, CII | Bulk | Active | Chassis Mount | 17.6VDC | DPDT (2 Form C) | 3 A | - | - | 51.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 8.9 VDC | 0.97 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|

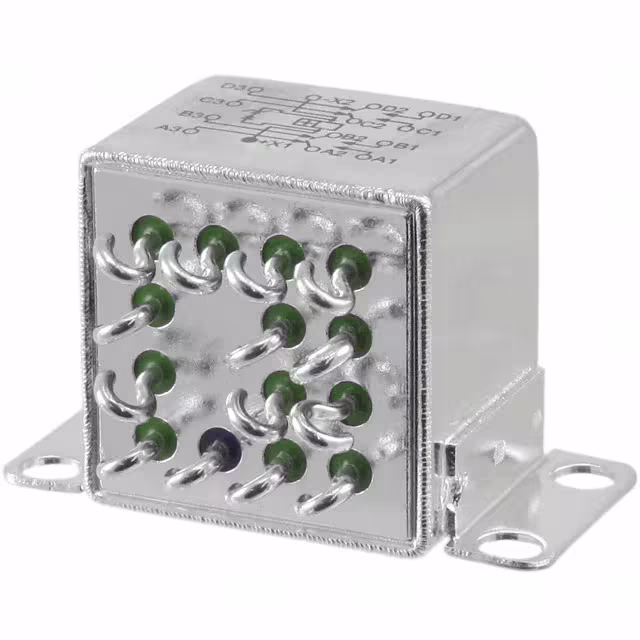

FCB-405-0624MRELAY GEN PURPOSE 4PDT 5A 28V |
0 |
|
Технический лист |
FCB-405, CII | Bulk | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 5 A | 115VAC, 28VDC - Max | 575VA, 140W | 70 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 6 ms | 6 ms | -70°C ~ 125°C | - | - | General Purpose | Military | MIL-R-83536/6 |
|
|
FCA-210-0922MFCA-210-0922M=M83536/9-022M |
0 |
|
- |
FCA-210, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 87.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
FCB-205-AT4RELAY GEN PURPOSE DPDT 5A 28V |
0 |
|
Технический лист |
FCB-205, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
FCB-205-0220MFCB-205-0220M=M83536/2-020M |
0 |
|
- |
FCB-205, CII | Bulk | Active | Through Hole | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | Diode | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
FCB-205-0118LFCB-205-0118L=M83536/1-018L |
0 |
|
- |
FCB-205, CII | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 5 A | - | - | 126.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9 VDC | 0.75 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
9-1617784-9FCB-205-0124L=M83536/1-024L |
0 |
|
Технический лист |
FCB-205, CII | Bulk | Active | Through Hole | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
5-1617758-8FCB-205-111 |
0 |
|
- |
FCB-205, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 5 A | - | - | 300 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
4-1617789-3FCB-205-CX1=MIDRANGE RELAY |
0 |
|
Технический лист |
FCB-205, CII | Bulk | Active | Chassis Mount | 6VDC | DPDT (2 Form C) | 5 A | - | - | 300 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 4.5 VDC | 0.3 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
7-1617784-4RELAY GEN PURPOSE DPDT 5A |
0 |
|
Технический лист |
FCB-205, CII | Bulk | Active | - | - | DPDT (2 Form C) | 5 A | - | - | - | Non Latching | - | - | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
1617785FCB-205-0126L=M83536/1-026L |
0 |
|
Технический лист |
FCB-205, CII | Bulk | Active | Through Hole | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
1-1617785-0FCB-205-0132L=M83536/1-032L |
0 |
|
Технический лист |
FCB-205, CII | Bulk | Active | Through Hole | 48VDC | DPDT (2 Form C) | 5 A | - | - | 30 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 36 VDC | 2.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
1-1617785-1FCB-205-0132M=M83536/1-032M |
0 |
|
Технический лист |
FCB-205, CII | Bulk | Active | Through Hole | 48VDC | DPDT (2 Form C) | 5 A | - | - | 30 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 36 VDC | 2.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
