Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG117AHVT-DESCIC REG LINEAR POS ADJ 1.5A TO39 |
0 |
|
Технический лист |
- | TO-205AD, TO-39-3 Metal Can | Tube | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | 65dB ~ 80dB (120Hz) | - | Over Current | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|
SG7818KIC REG LINEAR TO204AD |
0 |
|
Технический лист |
- | TO-204AA, TO-3 | Tube | Active | Positive | - | 1 | - | - | - | - | - | - | - | - | - | - | - | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|
SG7818L-883BIC REG LINEAR 20CLCC |
0 |
|
Технический лист |
- | 20-CLCC | Tube | Active | Positive | - | 1 | - | - | - | - | - | - | - | - | - | - | - | Military | MIL-STD-883 | Surface Mount | 20-CLCC (8.89x8.89) |
|
|
SG7818AKIC REG LINEAR TO204AD |
0 |
|
Технический лист |
- | TO-204AA, TO-3 | Tube | Active | Positive | - | 1 | - | - | - | - | - | - | - | - | - | - | - | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|
|
SGR117AKIC REG LIN POS ADJ 1.5A TO204AD |
0 |
|
Технический лист |
- | TO-204AA, TO-3 | Tube | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | - | - | - | -55°C ~ 150°C (TJ) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|
|
SG117IG-883BIC REG LINEAR POS ADJ 1.5A TO257 |
0 |
|
Технический лист |
- | TO-257-3 | Tray | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | 65dB ~ 80dB (120Hz) | - | Over Current | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-257 |
|
TLF2931GV50IC REG LINEAR FIXED LDO REG |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Fixed | 1 | 28V | 5V | - | 0.6V @ 100mA | 100mA | 1 mA | 15 mA | 80dB (120Hz) | - | Mirror-Image Insertion, Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
MIC5213-3.3BC5IC REG LINEAR MICROCAP LDO REG |
0 |
|
Технический лист |
Teeny™ | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.6V @ 80mA | 80mA | 750 µA | 3 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
MC78L05ACDR2GHIC REG LINEAR 5V 100MA 8SOIC |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 1.7V @ 40mA | 100mA | 6 mA | - | 49dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
UPC2905BT-E2-AZIC REG LINEAR FIXED LDO REG |
0 |
|
Технический лист |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LP2981IM5X-2.5/NOPBIC REG LINEAR FIXED LDO REG |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Bulk | Active | Positive | Fixed | 1 | 16V | 2.5V | - | 0.37V @ 100mA | 100mA | 95 µA | 1.7 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
AZ1117T-1.8E1IC REG LINEAR 1.8V 1A TO220-3 |
0 |
|
- |
AZ1117 | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 15V | 1.8V | - | 1.25V @ 1A | 1A | 10 mA | - | 75dB (120Hz) | - | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
AZ1117T-2.85E1IC REG LINEAR 2.85V 1A TO220-3 |
0 |
|
- |
AZ1117 | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 15V | 2.85V | - | 1.25V @ 1A | 1A | 10 mA | - | 75dB (120Hz) | - | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
AZ2940D-1.8G1IC REG LINEAR 1.8V 1A TO252-2 |
0 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 13.2V | 1.8V | - | 0.75V @ 1A | 1A | 25 mA | 18 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
AZ2940TF-5.0G1IC REG LINEAR 5V 1A TO220F-3 |
0 |
|
- |
- | TO-220-3 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 13.2V | 5V | - | 0.55V @ 1A | 1A | 25 mA | 18 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
|
AZ2940D-3.3E1IC REG LINEAR 3.3V 1A TO252-2 |
0 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 13.2V | 3.3V | - | 0.55V @ 1A | 1A | 25 mA | 18 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
AZ2940D-3.3G1IC REG LINEAR 3.3V 1A TO252-2 |
0 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 13.2V | 3.3V | - | 0.55V @ 1A | 1A | 25 mA | 18 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|

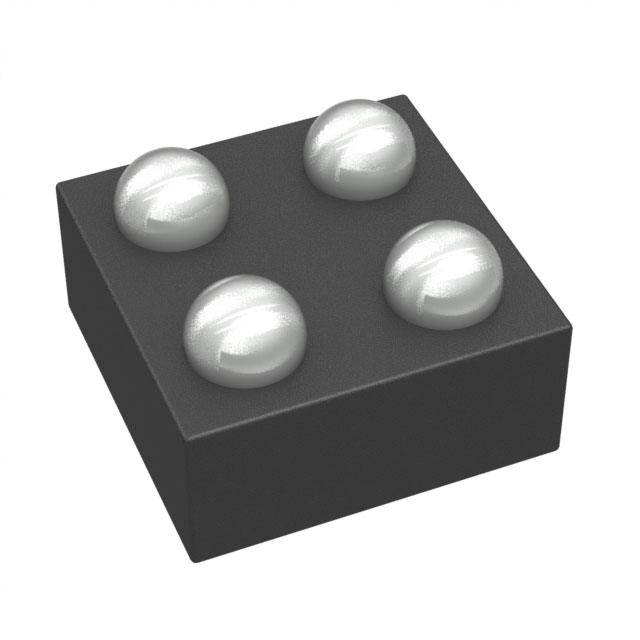

LP5911A033YKGRIC REG LINEAR SMD |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EZ1085CM.TRIC REG LINEAR POS ADJ 3A TO263 |
0 |
|
Технический лист |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | 1.35V @ 3A | 3A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C (TA) | - | - | Surface Mount | TO-263 |
|
|
EZ1085CM-3.3 TRIC REG LINEAR 3.3V 3A TO263 |
0 |
|
Технический лист |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.35V @ 3A | 3A | 14 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C (TA) | - | - | Surface Mount | TO-263 |
