Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

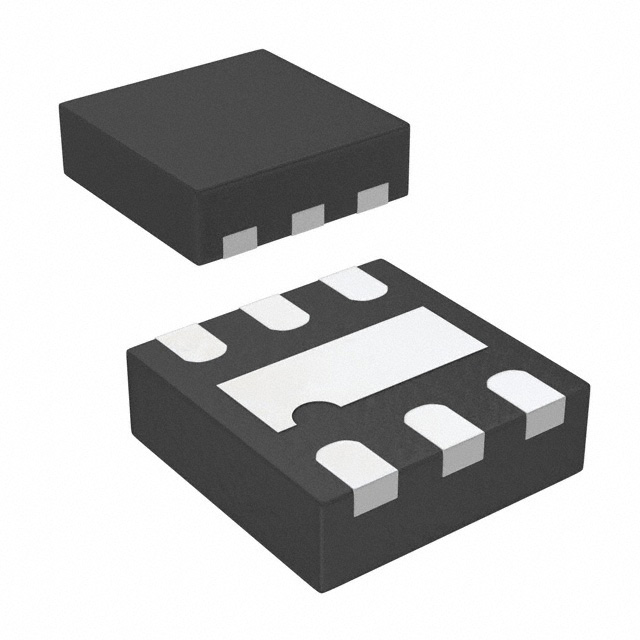

NCP152MX330180TCGIC REG LINEAR 1.8V/3.3V 6XDFN |
0 |
|
Технический лист |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.25V | 1.8V, 3.3V | - | 0.4V @ 150mA, 0.22V @ 150mA | 150mA, 150mA | 100 µA | 200 µA | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|

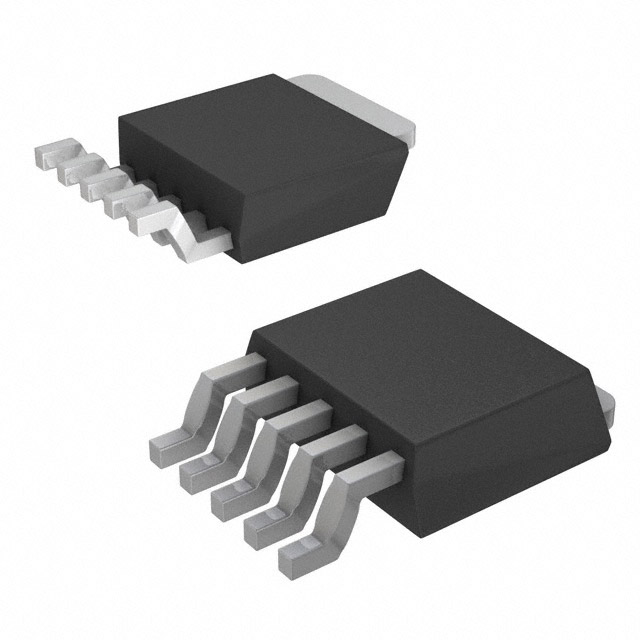

NCP4632DDTADJT5GIC REG LINEAR POS ADJ 3A DPAK-5 |
0 |
|
Технический лист |
- | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.25V | 0.8V | 4.5V | 0.56V @ 3A | 3A | 430 µA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | TO-252 (DPAK) |
|
NCP707CMX180TCGIC REG LINEAR 1.8V 200MA 4XDFN |
0 |
|
Технический лист |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.38V @ 200mA | 200mA | 35 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 4-XDFN (1x1) |
|
NCP717BMX190TCGIC REG LINEAR 1.9V 300MA 4XDFN |
0 |
|
Технический лист |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.9V | - | - | 300mA | 35 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-XDFN (1x1) |
|
NCV8705MT30TCGIC REG LINEAR 3V 500MA 6WDFN |
0 |
|
Технический лист |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | - | 500mA | 25 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-WDFN (2x2) |
|
L88R05DL-EIC REG LINEAR 5V 1A TO220-5H |
0 |
|
- |
- | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 17V | 5V | - | 0.5V @ 300mA | 1A | - | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220-5H |
|
MIC5283-3.3YML-T5IC REG LINEAR 3.3V 150MA 8MLF |
0 |
|
Технический лист |
- | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 120V | 3.3V | - | 2.8V @ 150mA | 150mA | 14 µA | - | 70dB ~ 65dB (100Hz ~ 100kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
|
MIC5283-5.0YML-T5IC REG LINEAR 5V 150MA 8MLF |
0 |
|
Технический лист |
- | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 120V | 5V | - | 2.8V @ 150mA | 150mA | 14 µA | - | 70dB ~ 65dB (100Hz ~ 100kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
MIC5283YML-T5IC REG LINEAR POS ADJ 150MA 8MLF |
0 |
|
Технический лист |
- | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 120V | 1.22V | 5.5V | 2.8V @ 150mA | 150mA | 14 µA | - | 70dB ~ 65dB (100Hz ~ 100kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
MIC5365-3.0YD5-T5IC REG LINEAR 3V 150MA TSOT23-5 |
0 |
|
Технический лист |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.31V @ 150mA | 150mA | 39 µA | - | 80dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
MIC5366-2.1YMT-T5IC REG LINEAR 2.1V 150MA 4TMLF |
0 |
|
Технический лист |
- | 4-UDFN Exposed Pad, 4-TMLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.1V | - | 0.38V @ 150mA | 150mA | 39 µA | - | 80dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 4-TMLF® (1x1) |
|
MIC5504-1.2YM5-T5IC REG LINEAR 1.2V 300MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.38V @ 300mA | 300mA | 55 µA | 65 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
MIC5504-1.8YM5-T5IC REG LINEAR 1.8V 300MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.38V @ 300mA | 300mA | 55 µA | 65 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
MP20041DGT-MS-LF-ZIC REG LINEAR 2.8V/3.3V 8TQFN |
0 |
|
Технический лист |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 2.8V, 3.3V | - | 0.22V @ 300mA (Typ), - | 300mA, 300mA | - | - | 72dB ~ 68dB (10kHz ~ 100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-TQFN (2x2) |
|
|
MP20041DGT-SL-LF-PIC REG LINEAR 2.7V/3.3V 8TQFN |
0 |
|
Технический лист |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 2.7V, 3.3V | - | 0.22V @ 300mA (Typ), - | 300mA, 300mA | - | - | 72dB ~ 68dB (10kHz ~ 100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-TQFN (2x2) |
|
MP20045DN-18-LFIC REG LINEAR 1.8V 1A 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.28V @ 1A | 1A | 110 µA | - | 56dB (1kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOICE |
|
|
MP20045DN-18-LF-ZIC REG LINEAR 1.8V 1A 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.28V @ 1A | 1A | 110 µA | - | 56dB (1kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOICE |
|
|
MP20045DN-33-LFIC REG LINEAR 3.3V 1A 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.28V @ 1A | 1A | 110 µA | - | 56dB (1kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOICE |
|
|
MP20045DN-33-LF-ZIC REG LINEAR 3.3V 1A 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.28V @ 1A | 1A | 110 µA | - | 56dB (1kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOICE |
|
|
MP20045DQ-15-LF-ZIC REG LINEAR 1.5V 1A 8QFN |
0 |
|
Технический лист |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.28V @ 1A | 1A | 110 µA | - | 56dB (1kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-QFN (3x3) |
