Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV86602BDT50RKGIC REG LINEAR 5V 150MA DPAK-5 |
0 |
|
Технический лист |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
|
NCV86603BDT33RKGIC REG LINEAR 3.3V 150MA DPAK-5 |
0 |
|
Технический лист |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | - | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
|
NCV86603BDT50RKGIC REG LINEAR 5V 150MA DPAK-5 |
0 |
|
Технический лист |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
|
NCV86604BDT50RKGIC REG LINEAR 5V 150MA DPAK-5 |
0 |
|
Технический лист |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
_4040251^B.jpg)
|
TPS7A3301KCIC REG LIN NEG ADJ 1A TO220-7 |
0 |
|
Технический лист |
- | TO-220-7 | Tube | Obsolete | Negative | Adjustable | 1 | -36V | -1.18V | -33V | 0.8V @ 1A | 1A | 100 µA | 950 µA | 72dB (10kHz) | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220-7 |
|
PT7M8216B33XZEXIC REG LINEAR 3.3V 300MA 4UDFN |
0 |
|
Технический лист |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
|
PT7M8216B28XZEXIC REG LINEAR 2.8V 300MA 4UDFN |
0 |
|
Технический лист |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
|
PT7M8216B30XZEXIC REG LINEAR 3V 300MA 4UDFN |
0 |
|
Технический лист |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
NCP4586DSN12T1GIC REG LINEAR 1.2V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 1.2V | - | 1V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP4586DSN33T1GIC REG LINEAR 3.3V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.51V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NCP4586DSN50T1GIC REG LINEAR 5V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 5V | - | 0.37V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP4624DSN50T1GIC REG LINEAR 5V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 11V | 5V | - | 0.76V @ 150mA | 150mA | 3.7 µA | - | 15dB (1kHz) | Enable | Over Current, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|

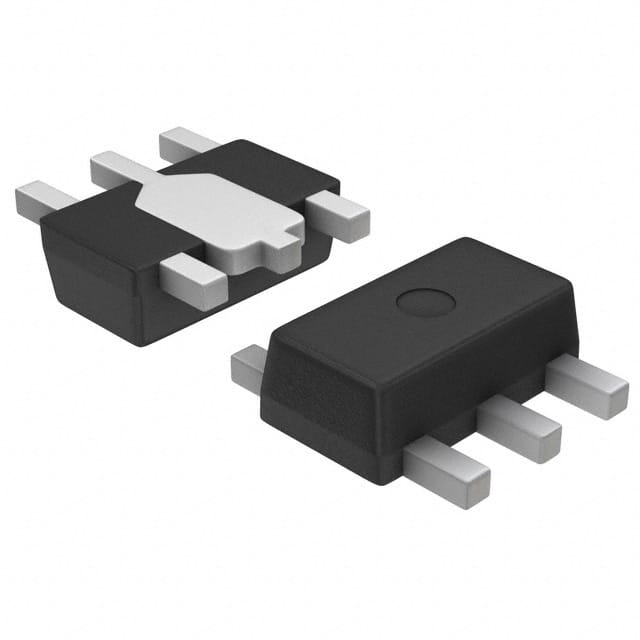

NCP4687DH15T1GIC REG LINEAR 1.5V 500MA SOT89-5 |
0 |
|
Технический лист |
- | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 1.5V | - | 0.48V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
|
NCP4687DH25T1GIC REG LINEAR 2.5V 500MA SOT89-5 |
0 |
|
Технический лист |
- | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 2.5V | - | 0.34V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
|
NCP4687DH33T1GIC REG LINEAR 3.3V 500MA SOT89-5 |
0 |
|
Технический лист |
- | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.32V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
NCP4687DMX25TCGIC REG LINEAR 2.5V 500MA 6XDFN |
0 |
|
Технический лист |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 2.5V | - | 0.34V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|
|
NCP4687DMX33TCGIC REG LINEAR 3.3V 500MA 6XDFN |
0 |
|
Технический лист |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.32V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|
|
NCP4687DSN28T1GIC REG LINEAR 2.8V 500MA SOT23-5 |
0 |
|
Технический лист |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NCP4688DSN12T1GIC REG LINEAR 1.2V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 1.2V | - | 0.8V @ 150mA | 150mA | 100 µA | - | 80dB ~ 65dB (1kHz ~ 100kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP4688DSN15T1GIC REG LINEAR 1.5V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 1.5V | - | 0.5V @ 150mA | 150mA | 100 µA | - | 80dB ~ 65dB (1kHz ~ 100kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
