Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

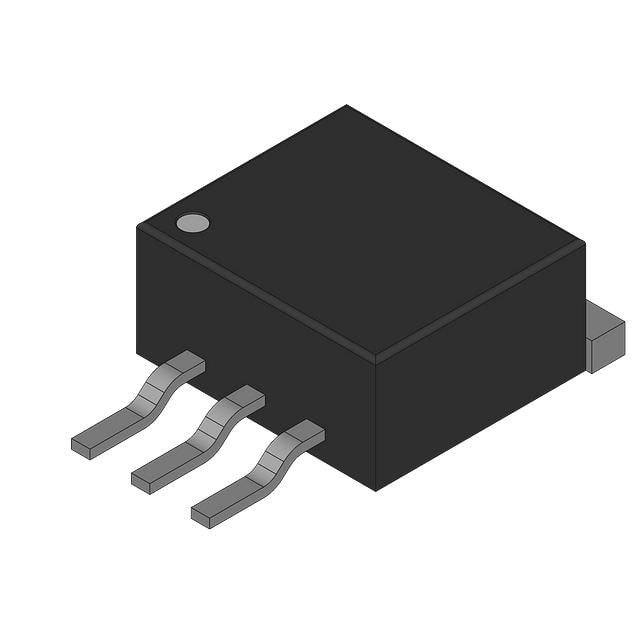

MC7912ACD2TGIC REG LINEAR -12V 1A D2PAK |
0 |
|
Технический лист |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Negative | Fixed | 1 | -35V | -12V | - | 1.3V @ 1A (Typ) | 1A | - | - | 61dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
MC7912ACD2TR4GIC REG LINEAR -12V 1A D2PAK |
0 |
|
Технический лист |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | Negative | Fixed | 1 | -35V | -12V | - | 1.3V @ 1A (Typ) | 1A | - | - | 61dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
|
MC7912CD2TGIC REG LINEAR -12V 1A D2PAK |
0 |
|
Технический лист |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Negative | Fixed | 1 | -35V | -12V | - | 1.3V @ 1A (Typ) | 1A | - | - | 61dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
|
MC7912CD2TR4GIC REG LINEAR -12V 1A D2PAK |
0 |
|
Технический лист |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | Negative | Fixed | 1 | -35V | -12V | - | 1.3V @ 1A (Typ) | 1A | - | - | 61dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
|
MC7915BD2TGIC REG LINEAR -15V 1A D2PAK |
0 |
|
Технический лист |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Negative | Fixed | 1 | -35V | -15V | - | 1.3V @ 1A (Typ) | 1A | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
|
MC7915CD2TGIC REG LINEAR -15V 1A D2PAK |
0 |
|
Технический лист |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Negative | Fixed | 1 | -35V | -15V | - | 1.3V @ 1A (Typ) | 1A | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
MC7924BTGIC REG LINEAR -24V 1A TO220AB |
0 |
|
Технический лист |
- | TO-220-3 | Tube | Obsolete | Negative | Fixed | 1 | -40V | -24V | - | 1.3V @ 1A (Typ) | 1A | - | - | 56dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
MC79L12ABDGIC REG LINEAR -12V 100MA 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Negative | Fixed | 1 | -35V | -12V | - | 1.7V @ 40mA (Typ) | 100mA | - | - | 42dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
MC79L12ACDGIC REG LINEAR -12V 100MA 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Negative | Fixed | 1 | -35V | -12V | - | 1.7V @ 40mA (Typ) | 100mA | - | - | 42dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
MC79L12ACPRAGIC REG LINEAR -12V 100MA TO92-3 |
0 |
|
Технический лист |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Obsolete | Negative | Fixed | 1 | -35V | -12V | - | 1.7V @ 40mA (Typ) | 100mA | - | - | 42dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|
|
MC79L15ABDGIC REG LINEAR -15V 100MA 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Negative | Fixed | 1 | -35V | -15V | - | 1.7V @ 40mA (Typ) | 100mA | - | - | 39dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
MC79L15ACDGIC REG LINEAR -15V 100MA 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Negative | Fixed | 1 | -35V | -15V | - | 1.7V @ 40mA (Typ) | 100mA | - | - | 39dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
MC79M05CDTGIC REG LINEAR -5V 500MA DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -5V | - | 1.1V @ 500mA (Typ) | 500mA | - | - | 66dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
MC79M08BDTGIC REG LINEAR -8V 500MA DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -8V | - | 1.1V @ 500mA (Typ) | 500mA | - | - | 63dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
MC79M12BDTGIC REG LINEAR -12V 500MA DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -12V | - | 1.1V @ 500mA (Typ) | 500mA | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
MC79M15BDTGIC REG LINEAR -15V 500MA DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -15V | - | 1.1V @ 500mA (Typ) | 500mA | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
MC79M15CDTGIC REG LINEAR -15V 500MA DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -15V | - | 1.1V @ 500mA (Typ) | 500mA | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
NCP1117DT12GIC REG LINEAR 12V 1A DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 12V | - | 1.2V @ 800mA | 1A | 10 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
NCP1117DTAGIC REG LINEAR POS ADJ 1A DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Adjustable | 1 | 20V | 1.25V | 18.8V | 1.2V @ 800mA | 1A | 10 mA | - | 73dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
NCP5501DT50GIC REG LINEAR 5V 500MA DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 16V | 5V | - | 0.7V @ 500mA | 500mA | 500 µA | 20 mA | 75dB ~ 70dB (120hZ ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | DPAK |
