Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL9000IRJRZ-TIC REG LINEAR 2.6V/2.8V 10DFN |
0 |
|
Технический лист |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 2.6V, 2.8V | - | 0.4V @ 300mA, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
ISL9000IRJCZ-TIC REG LINEAR 1.8V/2.8V 10DFN |
0 |
|
Технический лист |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.8V, 2.8V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | 90db ~ 50dB (1kHz ~ 100kHz), - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000IRJMZ-TIC REG LINEAR 2.8V/3V 10DFN |
0 |
|
Технический лист |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 2.8V, 3V | - | 0.4V @ 300mA, 0.325V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000IRGCZ-TIC REG LINEAR 1.8V/2.7V 10DFN |
0 |
|
Технический лист |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.8V, 2.7V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | 90db ~ 50dB (1kHz ~ 100kHz), - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000IRBJZ-TIC REG LINEAR 1.5V/2.8V 10DFN |
0 |
|
Технический лист |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 2.8V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000IRFJZ-TIC REG LINEAR 2.5V/2.8V 10DFN |
0 |
|
Технический лист |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 2.5V, 2.8V | - | 0.4V @ 300mA, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
__2.jpg)
|
KD1084ADT33RIC REG LINEAR 3.3V 5A DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 1.5V @ 5A | 5A | 10 mA | - | 72dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
KD1084DT33RIC REG LINEAR 3.3V 5A DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 1.5V @ 5A | 5A | 10 mA | - | 72dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|

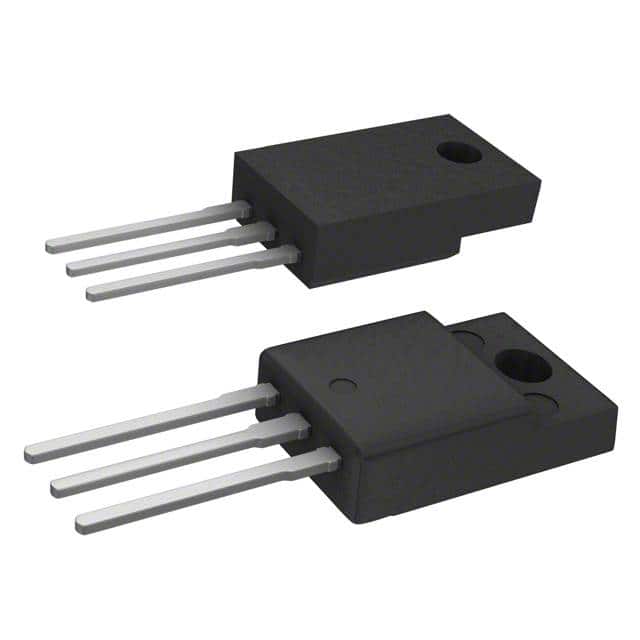

L4940P85IC REG LINEAR 8.5V 1.5A TO220FP |
0 |
|
Технический лист |
- | TO-220-3 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 17V | 8.5V | - | 0.9V @ 1.5A | 1.5A | 8 mA | 50 mA | 68dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | - | - | Through Hole | TO-220FP |
|
L7805TIC REG LINEAR 5V 1.5A TO3 |
0 |
|
Технический лист |
- | TO-204AA, TO-3 | Bag | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A (Typ) | 1.5A | 8 mA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | -55°C ~ 150°C | - | - | Through Hole | TO-3 |
,TO-226_straightlead.jpg)
|
L79L15ACZIC REG LINEAR -15V 100MA TO92-3 |
0 |
|
Технический лист |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Negative | Fixed | 1 | -35V | -15V | - | - | 100mA | 6 mA | 6.5 mA | 39dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
LD1084V12IC REG LINEAR 12V 5A TO220AB |
0 |
|
Технический лист |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 30V | 12V | - | 1.5V @ 5A | 5A | 10 mA | - | 66dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
LD29150PT15RIC REG LINEAR 1.5V 1.5A PPAK |
0 |
|
Технический лист |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 1.5V | - | - | 1.5A | 180 µA | 80 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | PPAK |
|
LM117KIC REG LINEAR POS ADJ 1.5A TO3 |
0 |
|
Технический лист |
- | TO-204AA, TO-3 | Tray | Obsolete | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | 5 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 150°C | - | - | Through Hole | TO-3 |
|
|
LM137KIC REG LIN NEG ADJ 1.5A TO3 |
0 |
|
Технический лист |
- | TO-204AA, TO-3 | Bulk | Obsolete | Negative | Adjustable | 1 | 40V | -1.2V | -37V | - | 1.5A | - | - | 77dB ~ 60dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 150°C | - | - | Through Hole | TO-3 |
|
|
LM138KIC REG LINEAR POS ADJ 5A TO3 |
0 |
|
Технический лист |
- | TO-204AA, TO-3 | Tray | Obsolete | Positive | Adjustable | 1 | 35V | 1.2V | 32V | - | 5A | - | - | 75dB ~ 60dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 150°C | - | - | Through Hole | TO-3 |
|
|
LM217KIC REG LINEAR POS ADJ 1.5A TO3 |
0 |
|
Технический лист |
- | TO-204AA, TO-3 | Bag | Obsolete | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 1.5A | - | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature | -25°C ~ 150°C | - | - | Through Hole | TO-3 |
|
|
LM238KIC REG LINEAR POS ADJ 5A TO3 |
0 |
|
Технический лист |
- | TO-204AA, TO-3 | Bag | Obsolete | Positive | Adjustable | 1 | 35V | 1.2V | 32V | - | 5A | - | - | 75dB ~ 60dB (120Hz) | - | Over Current, Over Temperature | -25°C ~ 150°C | - | - | Through Hole | TO-3 |
|
|
LM317KIC REG LINEAR POS ADJ 1.5A TO3 |
0 |
|
Технический лист |
- | TO-204AA, TO-3 | Bulk | Obsolete | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-3 |
|
|
LM337KIC REG LIN NEG ADJ 1.5A TO3 |
0 |
|
Технический лист |
- | TO-204AA, TO-3 | Bag | Obsolete | Negative | Adjustable | 1 | 40V | -1.2V | -37V | - | 1.5A | - | - | 77dB ~ 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-3 |
