Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

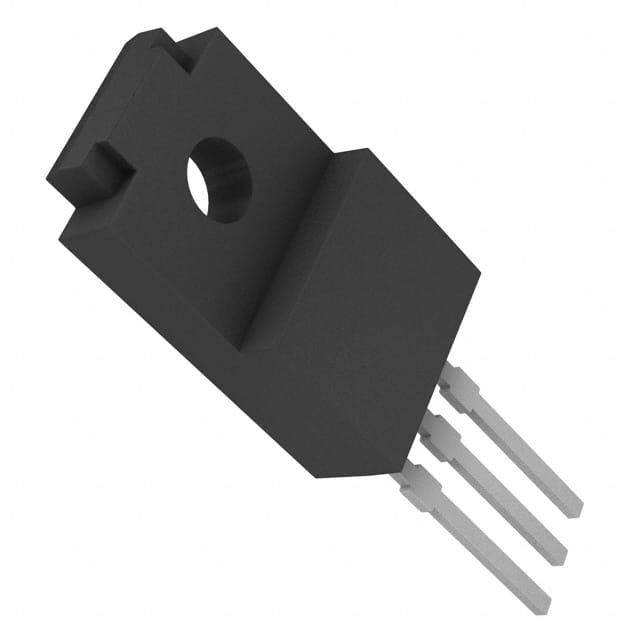

BA178M10TIC REG LINEAR 10V 500MA TO220FP |
0 |
|
Технический лист |
- | TO-220-3 Full Pack | Bulk | Active | Positive | Fixed | 1 | 25V | 10V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 66dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|
|
BA178M12TIC REG LINEAR 12V 500MA TO220FP |
0 |
|
Технический лист |
- | TO-220-3 Full Pack | Bulk | Active | Positive | Fixed | 1 | 27V | 12V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 63dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|
MC7808BDTRKGIC REG LINEAR 8V 1A DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
NCV1117DTARKIC REG LINEAR POS ADJ 1A DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 20V | 1.25V | 18.8V | 1.2V @ 800mA | 1A | 10 mA | - | 73dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
|
MC33269DTGIC REG LINEAR POS ADJ 800MA DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Adjustable | 1 | 20V | 1.25V | 18.65V | 1.35V @ 800mA | 800mA | - | - | 55dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
NCV8141D2TGIC REG LINEAR 5V 500MA D2PAK-7 |
0 |
|
Технический лист |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 1.5V @ 500mA | 500mA | - | - | 75dB (120Hz) | Enable, Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | D2PAK-7 |
|
LD1084V50IC REG LINEAR 5V 5A TO220AB |
0 |
|
Технический лист |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 1.5V @ 5A | 5A | 10 mA | - | 72dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
LD29150PT33RIC REG LINEAR 3.3V 1.5A PPAK |
0 |
|
Технический лист |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 3.3V | - | 0.7V @ 1.5A | 1.5A | 180 µA | 80 mA | 67dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | PPAK |
|
LD2982AM33RIC REG LINEAR 3.3V 50MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.225V @ 50mA | 50mA | 150 µA | 1.2 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LD2982BM33RIC REG LINEAR 3.3V 50MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.225V @ 50mA | 50mA | 150 µA | 1.2 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
__5.jpg)
|
NJM2863F03-TE1IC REG LINEAR 3V 100MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 3V | - | 0.18V @ 60mA | 100mA | 180 µA | - | 75dB (1kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 (MTP5) |
|
|
NJM2863F28-TE1IC REG LINEAR 2.8V 100MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 2.8V | - | 0.18V @ 60mA | 100mA | 180 µA | - | 75dB (1kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 (MTP5) |
|
|
NJM2863F29-TE1IC REG LINEAR 2.9V 100MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 2.9V | - | 0.18V @ 60mA | 100mA | 180 µA | - | 75dB (1kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 (MTP5) |
|
|
NJM2864F03-TE1IC REG LINEAR 3V 100MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 3V | - | 0.18V @ 60mA | 100mA | 180 µA | - | 75dB (1kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 (MTP5) |
,TO-226_straightlead.jpg)
|
NJU7201L32IC REG LINEAR 3.2V 100MA TO92-3 |
0 |
|
Технический лист |
- | TO-226-3, TO-92-3 (TO-226AA) | Tube | Obsolete | Positive | Fixed | 1 | 12V | 3.2V | - | 0.6V @ 20mA | 100mA | - | - | - | - | - | -25°C ~ 75°C | - | - | Through Hole | TO-92-3 |
|
|
NJU7201L55IC REG LINEAR 5.5V 100MA TO92-3 |
0 |
|
Технический лист |
- | TO-226-3, TO-92-3 (TO-226AA) | Tube | Obsolete | Positive | Fixed | 1 | 12V | 5.5V | - | 0.6V @ 40mA | 100mA | - | - | - | - | - | -25°C ~ 75°C | - | - | Through Hole | TO-92-3 |
|
NJU7231U50-TE1IC REG LINEAR 5V 100MA SOT89 |
0 |
|
Технический лист |
- | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 5V | - | 0.6V @ 40mA | 100mA | - | - | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | SOT-89 |
|
|
NJU7241F50-TE1IC REG LINEAR 5V 60MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 5V | - | 0.3V @ 60mA | 60mA | - | - | 55dB (1kHz) | - | Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 (MTP5) |
|
|
NJU7771F03-TE1IC REG LINEAR 3V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 3V | - | 0.25V @ 100mA | 150mA | 35 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 (MTP5) |
|
|
NJU7771F05-TE1IC REG LINEAR 5V 150MA SOT23-5 |
0 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 5V | - | 0.22V @ 100mA | 150mA | 35 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 (MTP5) |
