Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT3015IMSE-3.3#TRPBFIC REG LINEAR -3.3V 1.5A 12MSOP |
0 |
|
Технический лист |
- | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -3.3V | - | 0.5V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 61dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-MSOP-EP |
|
|
LT3015IMSE-5#TRPBFIC REG LINEAR -5V 1.5A 12MSOP |
0 |
|
Технический лист |
- | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -5V | - | 0.5V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 58dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-MSOP-EP |
|
LT3041ADE#TRPBFIC REG LINEAR POS ADJ 1A 14DFN |
0 |
|
Технический лист |
- | 14-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 20V | 0.2V | 15V | 0.48V @ 1A | 1A | - | 50 mA | 100dB ~ 60dB (120Hz ~ 10MHz) | Current Limit, Enable, Power Good, Soft Start, Tracking | Over Current, Over Temperature, Reverse Current, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-DFN (4x3) |
|
LT3015EQ-12#TRPBFIC REG LINEAR -12V 1.5A 5DDPAK |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -12V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 53dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015EQ-15#TRPBFIC REG LINEAR -15V 1.5A 5DDPAK |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -15V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 50dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015EQ-2.5#TRPBFIC REG LINEAR -2.5V 1.5A 5DDPAK |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -2.5V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015EQ-3#TRPBFIC REG LINEAR -3V 1.5A 5DDPAK |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -3V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015EQ-3.3#TRPBFIC REG LINEAR -3.3V 1.5A 5DDPAK |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -3.3V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 61dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015EQ-5#TRPBFIC REG LINEAR -5V 1.5A 5DDPAK |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -5V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 58dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
TPS75918KTTRG3IC REG LINEAR 1.8V 7.5A DDPAK |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 7.5A | 200 µA | - | 58dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
ADP7159ACPZ-01-R2IC REG LINEAR POS ADJ 2A 10LFCSP |
0 |
|
Технический лист |
- | 10-VFDFN Exposed Pad, CSP | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 1.2V | 1.8V | 0.28V @ 2A | 2A | 8 mA | 14 mA | 55dB ~ 40dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 10-LFCSP-WD (3x3) |
|
LT1963ET-1.5#30PBFIC REG LIN 1.5V 1.5A TO220-5 |
0 |
|
Технический лист |
- | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|

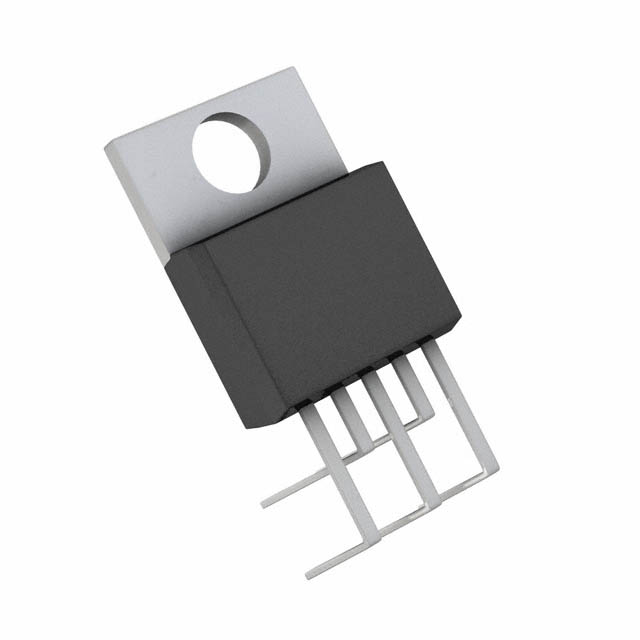

LT1963ET-1.8#30PBFIC REG LIN 1.8V 1.5A TO220-5 |
0 |
|
Технический лист |
- | TO-220-5 Formed Leads | Tube | Active | Positive | Fixed | 1 | 20V | 1.8V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 30 |
|
LP3872ES-2.5IC REG LINEAR 2.5V 1.5A DDPAK |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.55V @ 1.5A | 1.5A | 5 mA | 15 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
TPS72501KTTRG3IC REG LIN POS ADJ 1A DDPAK |
0 |
|
Технический лист |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 6V | 1.22V | 5.5V | 0.28V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LP3965EMP-3.3IC REG LINEAR 3.3V 1.5A SOT223-5 |
0 |
|
Технический лист |
- | TO-261-5, TO-261AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 0.55V @ 1.5A | 1.5A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
UCC284DPTR-ADJG4IC REG LIN NEG ADJ 500MA 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued | Negative | Adjustable | 1 | -15V | -1.25V | -15V | 0.5V @ 500mA | 500mA | 250 µA | - | - | Enable | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
LM2990S-15IC REG LIN -15V 1.8A DDPAK |
0 |
|
Технический лист |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Negative | Fixed | 1 | -26V | -15V | - | 1V @ 1A | 1.8A | 1 mA | 5 mA | 52dB (1kHz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
ADP3335ARMZ-1.8-RLIC REG LINEAR 1.8V 500MA 8MSOP |
0 |
|
Технический лист |
anyCAP® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 1.8V | - | 0.37V @ 500mA | 500mA | 110 µA | 10 mA | - | Shutdown | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
LT3081IFE#TRPBFIC REG LIN POS ADJ 1.5A 16TSSOP |
0 |
|
Технический лист |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 36V | 0V | 34.5V | 1.5V @ 1.5A | 1.5A | 50 µA | 5 mA | 90dB ~ 20dB (120Hz ~ 1MHz) | Current Limit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP-EP |
