Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT3060ETS8-2.5#TRPBFIC REG LIN 2.5V 100MA TSOT23-8 |
0 |
|
Технический лист |
- | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 2.5V | - | 0.51V @ 100mA | 100mA | 80 µA | 4 mA | 73dB (120Hz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-8 |
|
|
LT3060ETS8-15#TRPBFIC REG LINEAR 15V 100MA TSOT23-8 |
0 |
|
Технический лист |
- | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 15V | - | 0.51V @ 100mA | 100mA | 80 µA | 4 mA | 60dB (120Hz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-8 |
|
CS52015-3GT3IC REG LINEAR 3.3V 1.5A TO220AB |
0 |
|
Технический лист |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.4V @ 1.5A | 1.5A | 10 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Through Hole | TO-220-3 |
|
TPS79601DRBRG4IC REG LINEAR POS ADJ 1A 8SON |
0 |
|
Технический лист |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Discontinued | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.5V | - | 1A | 385 µA | - | 59dB ~ 42dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SON (3x3) |
|
TPS76825QPWPRQ1IC REG LINEAR 2.5V 1A 20HTSSOP |
0 |
|
Технический лист |
- | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 2.5V | - | - | 1A | 125 µA | - | 60dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-HTSSOP |
|
REG101UA-2.8IC REG LINEAR 2.8V 100MA 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 10V | 2.8V | - | 0.13V @ 100mA | 100mA | 500 µA | 650 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
MAX4836ETT33C+TIC REG LINEAR 3.3V 500MA 6TDFN |
0 |
|
- |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.33V @ 500mA | 500mA | 150 µA | - | - | Enable, Reset, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TDFN-EP (3x3) |
|
|
MAX4836ETT30C+TIC REG LINEAR 3V 500MA 6TDFN |
0 |
|
- |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.33V @ 500mA | 500mA | 150 µA | - | - | Enable, Reset, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TDFN-EP (3x3) |
|
LP2967IBP-2626IC REG LINEAR 2.6V 150MA 8USMD |
0 |
|
Технический лист |
- | 8-VFBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 16V | 2.6V | - | 0.42V @ 150mA | 150mA | 300 µA | 5 mA | 52dB ~ 70dB (120Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-uSMD |
|

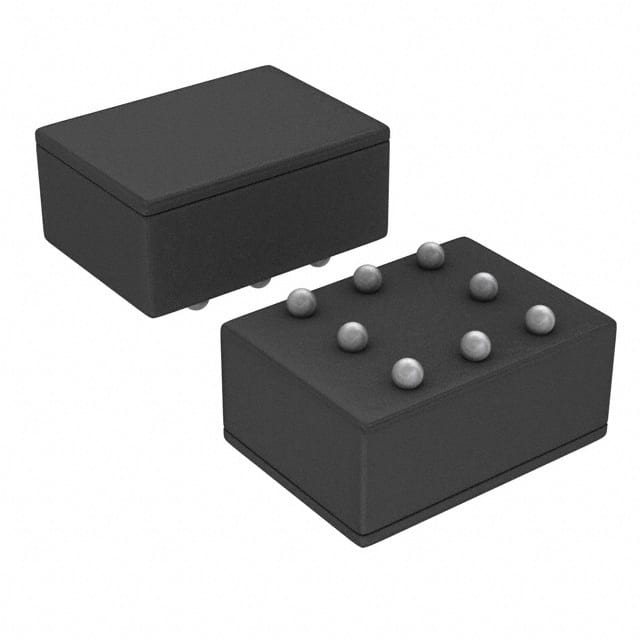

LP2967IBP-2833/NOPBIC REG LIN 2.8V/3.3V 150MA 8USMD |
0 |
|
Технический лист |
- | 8-VFBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 16V | 2.8V, 3.3V | - | 0.42V @ 150mA | 150mA | 300 µA | 5 mA | 52dB ~ 70dB (120Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-uSMD |
|
MCP1827ST-5002E/EBIC REG LINEAR 5V 1.5A 3DDPAK |
0 |
|
Технический лист |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.6V @ 1.5A | 1.5A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-3 |
|
L4995AJTRIC REG LIN 5V 500MA POWERSSO-12 |
0 |
|
Технический лист |
- | PowerSSO-12 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 400mA | 500mA | 160 µA | 2.7 mA | 55dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PowerSSO-12 |
|
TA48M025F(T6L1,SNQIC REG LINEAR 2.5V 500MA PW-MOLD |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 29V | 2.5V | - | 0.65V @ 500mA | 500mA | 1.4 mA | 25 mA | 72dB (120Hz) | - | Over Current, Over Temperature, Over Voltage, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | PW-MOLD |
|
S-1142D35I-E6T1UIC REG LINEAR 3.5V 200MA 6HSOP |
0 |
|
Технический лист |
S-1142C/D | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 50V | 3.5V | - | 0.62V @ 200mA | 200mA | 1 µA | 9 µA | 45dB (100Hz) | Enable | Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-HSOP |
|
|
S-1142D48I-E6T1UIC REG LINEAR 4.8V 200MA 6HSOP |
0 |
|
Технический лист |
S-1142C/D | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 50V | 4.8V | - | 0.55V @ 200mA | 200mA | 1 µA | 9 µA | 40dB (100Hz) | Enable | Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-HSOP |
|
|
S-1142D50I-E6T1UIC REG LINEAR 5V 200MA 6HSOP |
0 |
|
Технический лист |
S-1142C/D | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 50V | 5V | - | 0.5V @ 200mA | 200mA | 1 µA | 9 µA | 40dB (100Hz) | Enable | Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-HSOP |
|
|
S-1142D60I-E6T1UIC REG LINEAR 6V 200MA 6HSOP |
0 |
|
Технический лист |
S-1142C/D | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 50V | 6V | - | 0.5V @ 200mA | 200mA | 1 µA | 9 µA | 40dB (100Hz) | Enable | Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-HSOP |
|
TPS7A8018DRBRIC REG LINEAR 1.8V 1A 8SON |
0 |
|
Технический лист |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.8V | - | 0.5V @ 1A | 1A | 120 µA | 350 µA | 48dB ~ 38dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SON (3x3) |
|
|
TPS7A8033DRBRIC REG LINEAR 3.3V 1A 8SON |
0 |
|
Технический лист |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.5V @ 1A | 1A | 120 µA | 350 µA | 48dB ~ 38dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SON (3x3) |
|
|
TPS7A8050DRBRIC REG LINEAR 5V 1A 8SON |
0 |
|
Технический лист |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 5V | - | 0.5V @ 1A | 1A | 120 µA | 350 µA | 48dB ~ 38dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SON (3x3) |
