Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP133AMXADJTCGIC REG LIN POS ADJ 500MA 6XDFN |
19,091 |
|
Технический лист |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.25V @ 500mA | 500mA | - | - | 80dB ~ 70dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|
NCP1117DT33T5GIC REG LINEAR 3.3V 1A DPAK |
10,516 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 1.2V @ 800mA | 1A | 10 mA | - | 64dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
.jpg)
|

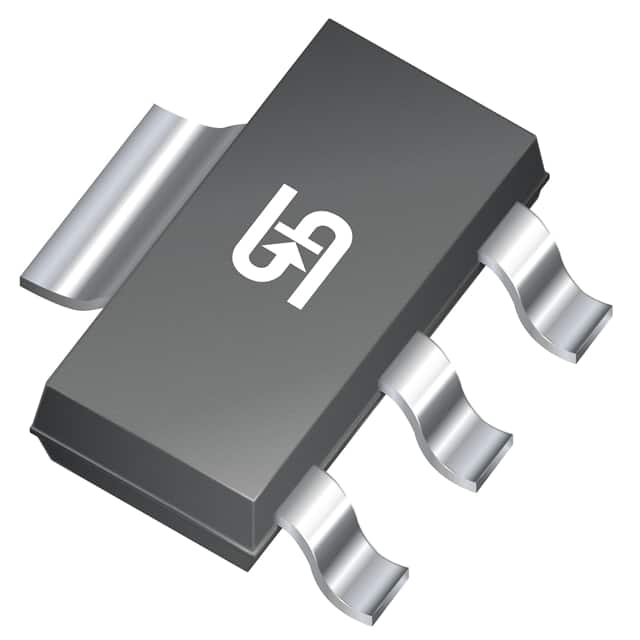

TS2940CW50 RPGIC REG LINEAR 5V 1A SOT223 |
8,326 |
|
Технический лист |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 5V | - | 0.8V @ 800mA | 1A | 15 mA | 110 mA | - | - | Over Voltage, Thermal Shutdown, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|
NCP161ASN500T1GIC REG LINEAR 5V 450MA SOT23-5 |
3,694 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 5V | - | - | 450mA | 23 µA | - | 91dB ~ 48dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
NCP1117IDT33T4GLDO REGULATOR, 1 A, FIXED AND AD |
3,580 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 1.2V @ 800mA | 1A | 10 mA | - | 64dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
|
NCP1117DT33RKGIC REG LINEAR 3.3V 1A DPAK |
3,043 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 1.2V @ 800mA | 1A | 10 mA | - | 64dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
TPS76933DBVTIC REG LINEAR 3.3V 100MA SOT23-5 |
2,364 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 3.3V | - | 0.2V @ 100mA | 100mA | 28 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP1117IDT50T4GLDO REGULATOR, 1 A, FIXED AND AD |
2,296 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 5V | - | 1.2V @ 800mA | 1A | 10 mA | - | 61dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
LM337SPIC REG LIN NEG ADJ 1.5A TO220 |
2,134 |
|
Технический лист |
- | TO-220-3 | Tube | Active | Negative | Adjustable | 1 | 40V | -1.2V | -37V | - | 1.5A | - | - | 77dB ~ 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
LP2951ACD-3.3R2GIC REG LINEAR 3.3V 100MA 8SOIC |
2,117 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 3.3V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
MC78M12CTGIC REG LINEAR 12V 500MA TO220AB |
1,229 |
|
Технический лист |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 35V | 12V | - | - | 500mA | - | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
TC1262-3.3VABIC REG LINEAR 3.3V 500MA TO220-3 |
1,186 |
|
Технический лист |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.65V @ 500mA | 500mA | 130 µA | - | 64dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
MCP1825S-3302E/ABIC REG LINEAR 3.3V 500MA TO220-3 |
649 |
|
Технический лист |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 500mA | 500mA | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
MCP1825S-5002E/ABIC REG LINEAR 5V 500MA TO220-3 |
353 |
|
Технический лист |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.35V @ 500mA | 500mA | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
MCP1825S-3002E/ABIC REG LINEAR 3V 500MA TO220-3 |
116 |
|
Технический лист |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.35V @ 500mA | 500mA | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
NCV8161AMX180TBGIC REG LINEAR 1.8V 450MA 4XDFN |
38,377 |
|
Технический лист |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.45V @ 450mA | 450mA | 23 µA | - | 91dB ~ 48dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 4-XDFN (1x1) |
|
TPS74550PQWDRVRQ1IC REG LINEAR 5V 500MA 6WSON |
21,547 |
|
Технический лист |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.095V @ 500mA | 500mA | 36 µA | - | 57dB ~ 35dB (1kHz ~ 1MHz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-WSON (2x2) |
|
TC595002ECBTRIC REG LINEAR -5V 100MA SOT23-3 |
9,892 |
|
Технический лист |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -10V | -5V | - | 0.6V @ 100mA | 100mA | 7 µA | - | - | - | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
TPS71733DSERIC REG LINEAR 3.3V 150MA 6WSON |
8,050 |
|
Технический лист |
- | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
NCP563SQ33T1GIC REG LINEAR 3.3V 80MA SC82AB |
6,676 |
|
Технический лист |
- | SC-82A, SOT-343 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 80mA | 80mA | 1 µA | 6 µA | - | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-82AB |
