Регуляторы напряжения - линейные, регуляторы с малым падением напряжения (LDO)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Тип выхода | Количество регуляторов | Напряжение - вход (макс.) | Напряжение - выход (мин./фикс.) | Напряжение - выход (макс.) | Падение напряжения (макс.) | Ток - выход | Ток - состояние покоя (Iq) | Ток - Питание (макс.) | PSRR | Функции управления | Защитные функции | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
__2.jpg)
|
L78M12CDT-TRIC REG LINEAR 12V 500MA DPAK |
22,838 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 12V | - | - | 500mA | 6 mA | - | 55dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
L78M09CDT-TRIC REG LINEAR 9V 500MA DPAK |
20,010 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 9V | - | - | 500mA | 6 mA | - | 56dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
L78M08CDT-TRIC REG LINEAR 8V 500MA DPAK |
12,188 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 8V | - | - | 500mA | 6 mA | - | 56dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
LDL212PURIC REG LINEAR POS ADJ 1.2A 6DFN |
11,124 |
|
Технический лист |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 18V | 1.18V | 17.4V | 0.6V @ 1.2A | 1.2A | 380 µA | 380 µA | 87dB ~ 50dB (120Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (3x3) |
|
AZ1117IH-1.2TRG1IC REG LINEAR 1.2V 1A SOT223 |
9,345 |
|
Технический лист |
AZ1117I | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 1.2V | - | 1.3V @ 800mA | 1A | 6 mA | - | 70dB (120Hz) | - | Thermal Shutdown | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
TCR3UM18A,LF(SELDO REG IOUT: 300MA VIN: 6V VOUT |
7,870 |
|
Технический лист |
- | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.457V @ 300mA | 300mA | 680 nA | - | - | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-DFN (1x1) |
|
|
L78M15CDT-TRIC REG LINEAR 15V 500MA DPAK |
7,002 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 15V | - | - | 500mA | 6 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
TCR3DM45,LF(SELDO REG IOUT: 300MA VIN: 6V VOUT |
6,999 |
|
Технический лист |
- | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4.5V | - | 0.2V @ 300mA | 300mA | 125 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-DFN (1x1) |
|

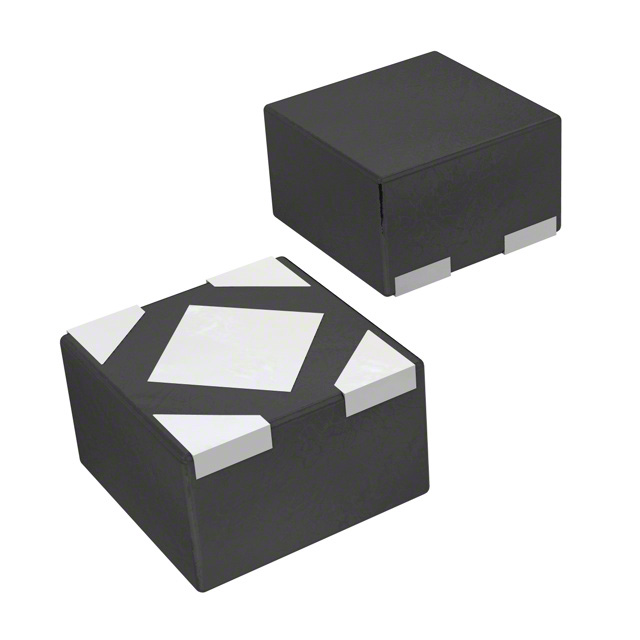

MCP1711T-30I/5XIC REG LINEAR 3V 150MA 4UQFN |
5,436 |
|
Технический лист |
- | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.67V @ 150mA | 150mA | 1.27 µA | 1.8 µA | - | Enable | - | -40°C ~ 85°C | - | - | Surface Mount | 4-UQFN (1x1) |
|
|
TCR3UM33A,LF(SELDO REG IOUT: 300MA VIN: 6V VOUT |
5,203 |
|
Технический лист |
- | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.273V @ 300mA | 300mA | 680 nA | - | - | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-DFN (1x1) |
|
|
AZ1117IH-1.8TRG1IC REG LINEAR 1.8V 1A SOT223 |
4,427 |
|
Технический лист |
AZ1117I | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 1.8V | - | 1.3V @ 800mA | 1A | 6 mA | - | 70dB (120Hz) | - | Thermal Shutdown | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
NCP177AMX120TCGIC REG LINEAR 1.2V 500MA 4XDFN |
2,347 |
|
Технический лист |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 500mA | 90 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-XDFN (1x1) |
,TO-226_straightlead.jpg)
|
MCP1700-2702E/TOIC REG LINEAR 2.7V 250MA TO92-3 |
1,189 |
|
Технический лист |
- | TO-226-3, TO-92-3 (TO-226AA) | Bag | Active | Positive | Fixed | 1 | 6V | 2.7V | - | 0.35V @ 250mA | 250mA | 4 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
L78L18ACUTRIC REG LINEAR 18V 100MA SOT89-3 |
74,194 |
|
Технический лист |
- | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 18V | - | - | 100mA | 6 mA | 6.5 mA | 38dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | SOT-89-3 |
|
MCP1700T-3302E/MAYIC REG LINEAR 3.3V 250MA 6DFN |
45,423 |
|
Технический лист |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 250mA | 250mA | 4 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
TPS7A0330PDQNRIC REG LINEAR 3V 200MA 4X2SON |
30,820 |
|
Технический лист |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.36V @ 200mA | 200mA | 300 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
LDK220M50RIC REG LINEAR 5V 200MA SOT23-5 |
25,626 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 13.2V | 5V | - | 0.35V @ 200mA | 200mA | 90 µA | 100 µA | 55dB ~ 50dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
AP2115M-3.3TRG1IC REG LINEAR 3.3V 1A 8SOIC |
18,320 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.75V @ 1A | 1A | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
MIC5203-3.3YM5-TRIC REG LINEAR 3.3V 80MA SOT23-5 |
15,137 |
|
Технический лист |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.6V @ 80mA | 80mA | 750 µA | 3 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
UA78M10CKVURG3IC REG LINEAR 10V 500MA TO252-3 |
11,077 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 28V | 10V | - | 2V @ 350mA | 500mA | - | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
