Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP2181DWG-7IC PWR SWITCH P-CHAN 1:1 SOT25 |
2,337 |
|
Технический лист |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 95mOhm | Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
MIC2039FYM6-TRIC PWR SWITCH P-CHAN 1:1 SOT23-6 |
2,816 |
|
Технический лист |
SOT-23-6 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 2.5A | 75mOhm | Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
TPS22964C2YZPR5.5-V, 3-A, 14-M LOAD SWITCH WIT |
5,764 |
|
Технический лист |
6-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1V ~ 5.5V | Not Required | 3A | 13.3mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA (1.39x.89) |
|
|
R5540K002D-TRNCH LOAD SWITCH IC |
9,159 |
|
Технический лист |
4-XFDFN | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.75V ~ 3.6V | Not Required | 200mA | 120mOhm | Inverting | - | Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN(PL)1010-4F |
|
R5540K004D-TRIC PWR SWITCH N-CH 1:1 DFN1010 |
4,837 |
|
Технический лист |
4-XFDFN | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | - | 0.8V ~ 3.6V | Not Required | 450mA | 120mOhm | Inverting | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN(PL)1010-4F |
|

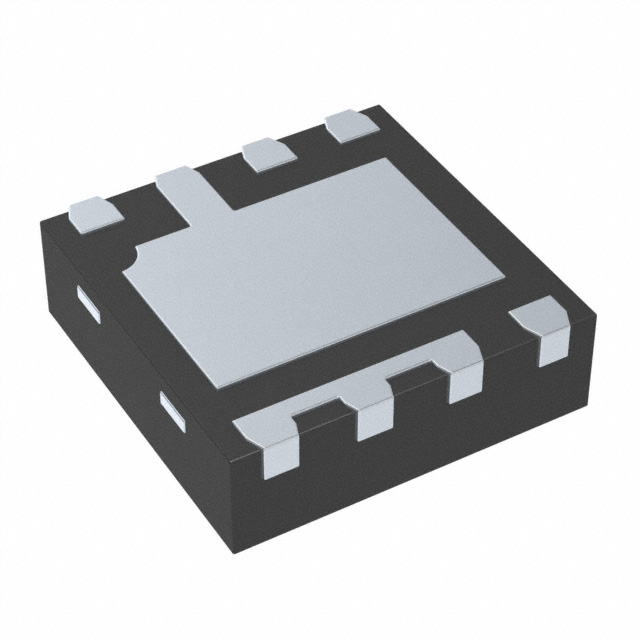

DML1010FDK-7IC PWR SWITCH N-CH 1:1 DFN2020 |
1,994 |
|
Технический лист |
8-PowerUFDFN | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 4V | Not Required | 6A | 8mOhm (Max) | - | Load Discharge | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2020-8 (Type K) |
|
TPS22932BYFPTIC PWR SWITCH P-CHAN 1:1 6DSBGA |
81 |
|
Технический лист |
6-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.1V ~ 3.6V | - | 500mA | 55mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA |
|
AP2553FDC-7RIC PWR SWITCH P-CHAN 1:1 6UDFN |
6,088 |
|
Технический лист |
6-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2.1A | 80mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type C) |
|
AP2311AMP-13IC PWR SWITCH P-CHAN 1:1 8MSOP |
4,889 |
|
Технический лист |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP-EP |
|
TPS22907YZTTIC PWR SWITCH P-CHAN 1:1 4DSBGA |
3,082 |
|
Технический лист |
4-UFBGA, DSBGA | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.1V ~ 3.6V | Not Required | 1A | 44mOhm | Non-Inverting | Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-DSBGA (0.9x0.9) |
|
|
AP2411AMP-13IC PWR SWITCH P-CHAN 1:1 8MSOP |
2,500 |
|
Технический лист |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP-EP |
|
SC725CSTRTIC PWR SWITCH N-CHAN 1:1 4CSP |
8,084 |
|
Технический лист |
4-WFBGA, CSPBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.1V ~ 3.6V | Not Required | 2A | 24mOhm | - | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-CSP (0.76x0.76) |
|
|
AP2552FDC-7IC PWR SWITCH P-CHANNEL 1:1 6DFN |
7,446 |
|
Технический лист |
6-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2.1A | 80mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type C) |
|
MIC2033-55AYMT-TRIC PWR SWITCH P-CHAN 1:1 6TDFN |
3,334 |
|
Технический лист |
6-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 550mA | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TDFN (2x2) |
|
TCK22971G,LFIC PWR SWITCH P-CHAN 1:1 WCSP6E |
4,919 |
|
Технический лист |
6-UFBGA, WLCSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.1V ~ 5.5V | Not Required | 2A | 25mOhm | Non-Inverting | Slew Rate Controlled | Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WCSPE (0.80x1.2) |
|
AP2191FMG-7IC PWR SWITCH P-CHANNEL 1:1 6DFN |
2,986 |
|
Технический лист |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 90mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2018-6 |
|
RT9742DGJ5IC PWR SWITCH N-CHAN 1:1 SOT23-5 |
2,807 |
|
Технический лист |
SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 6V | Not Required | 2A | 70mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-5 |
|
|
TPS2068CDGNIC PWR SWITCH N-CHAN 1:1 8MSOP |
704 |
|
Технический лист |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Bulk | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 1.5A | 69mOhm | Inverting | Output Discharge | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-HVSSOP |
|
|
TPS2000CDGNIC PWR SWITCH N-CHAN 1:1 8MSOP |
190 |
|
Технический лист |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Bulk | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 2A | 72mOhm | Inverting | Output Discharge | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-HVSSOP |
|
MIC2005-0.8YML-TRIC PWR SWITCH P-CHAN 1:1 6MLF |
12,491 |
|
Технический лист |
6-VDFN Exposed Pad, 6-MLF® | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 800mA | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
