Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R5524N002B-TR-FEIC PWR SWITCH N-CHAN 1:1 SOT23-5 |
3,219 |
|
Технический лист |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | - | 2.2V ~ 5.5V | Not Required | 800mA | 100mOhm | Non-Inverting | - | Over Current, Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
SLG5NT1594VIC PWR SWITCH P-CHAN 1:1 4STDFN |
21,819 |
|
Технический лист |
4-UFDFN | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side or Low Side | P-Channel | On/Off | - | 1.5V ~ 5.5V | 1A | 28.5mOhm | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-STDFN (1x1) |
|
|
SLG5NT1593VIC PWR SWITCH P-CHAN 1:1 4STDFN |
13,802 |
|
Технический лист |
4-UFDFN | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | - | - | 1.5V ~ 5.5V | 1A | 28.5mOhm | CMOS | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-STDFN (1x1) |
|
AP2552W6-7IC PWR SWITCH P-CHAN 1:1 SOT26 |
7,553 |
|
- |
SOT-23-6 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2.1A | 70mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-26 |
|
TPS2068CDGNRIC PWR SWITCH N-CHAN 1:1 8MSOP |
980 |
|
Технический лист |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 1.5A | 69mOhm | Inverting | Output Discharge | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-HVSSOP |
|
|
AP2552AW6-7IC PWR SWITCH P-CHAN 1:1 SOT26 |
6,870 |
|
- |
SOT-23-6 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2.1A | 70mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-26 |
|

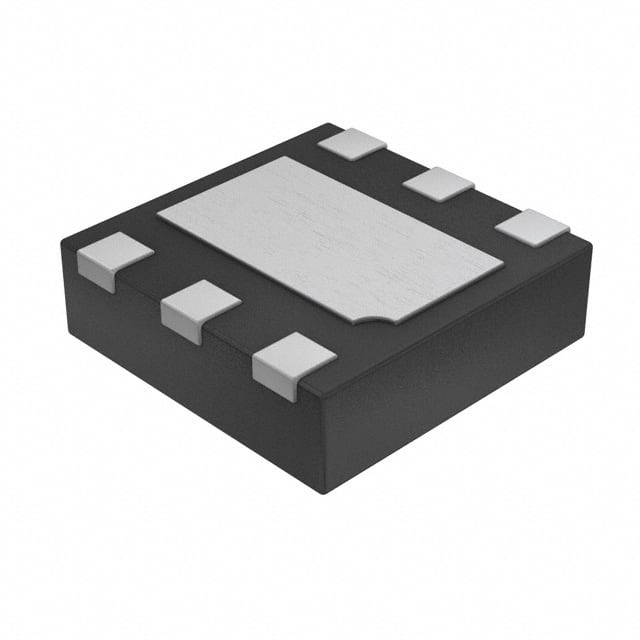

AP2553AFDC-7IC PWR SWITCH P-CHANNEL 1:1 6DFN |
4,640 |
|
Технический лист |
6-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2.1A | 80mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type C) |
|
RT9724GBIC PWR SWITCH N-CHAN 1:1 SOT23-5 |
2,422 |
|
Технический лист |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 100mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 100°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
TPS22907YZTRIC PWR SWITCH P-CHAN 1:1 4DSBGA |
15,139 |
|
Технический лист |
4-UFBGA, DSBGA | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.1V ~ 3.6V | Not Required | 1A | 44mOhm | Non-Inverting | Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-DSBGA (0.9x0.9) |
|
TPS22906YZVRIC PWR SWITCH P-CHAN 1:1 4DSBGA |
8,812 |
|
Технический лист |
4-XFBGA, DSBGA | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1V ~ 3.6V | Not Required | 500mA | 90mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-DSBGA (0.88x0.88) |
|
TPS22990NDMLRIC PWR SWITCH N-CHAN 1:1 10WSON |
4,601 |
|
Технический лист |
10-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 10A | 3.9mOhm | Non-Inverting | Power Good, Slew Rate Controlled | - | -40°C ~ 105°C (TA) | - | - | Surface Mount | 10-WSON (3x2) |
|

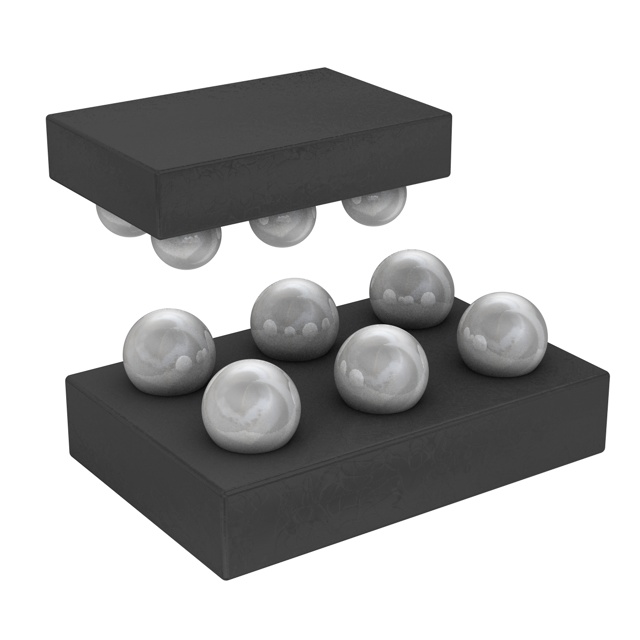

TCK22891G,LFIC PWR SWITCH P-CHAN 1:1 WCSP6E |
34,247 |
|
Технический лист |
6-UFBGA, WLCSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.4V ~ 5.5V | Not Required | 400mA | 31mOhm | Non-Inverting | Load Discharge | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WCSPE (0.80x1.2) |
|
XC8110AA018R-GLOAD SWITCH IC WITH IDEAL DIODE |
3,165 |
|
Технический лист |
6-XFDFN Exposed Pad | XC8110 | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.5V ~ 6V | Not Required | 500mA | 410mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 105°C (TA) | - | - | Surface Mount | USP-6B06 |
|
TPS2069CDBVTIC PWR SWITCH N-CHAN 1:1 SOT23-5 |
22,519 |
|
Технический лист |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 1.5A | 76mOhm | Non-Inverting | Output Discharge | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
TPS2065CDBVT-2IC PWR SWITCH N-CHAN 1:1 SOT23-5 |
6,882 |
|
Технический лист |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 1A | 96mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
TPS22922BYZPRIC PWR SWITCH P-CHAN 1:1 6DSBGA |
23,069 |
|
Технический лист |
6-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 0.9V ~ 3.6V | Not Required | 2A | 14mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA |
|
AOZ1356DI-015.5V/3A ECPOWER PROTECTION SWITC |
19,794 |
|
Технический лист |
12-VFDFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 3.4V ~ 5.5V | Not Required | 3.5A | 39mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DFN (3x3) |
|
AP2191AW-7IC PWR SWITCH P-CHAN 1:1 SOT25 |
45,081 |
|
Технический лист |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 95mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
AP22804AM8-13IC PWR SWITCH P-CHAN 1:1 8MSOP |
7,104 |
|
Технический лист |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2.5A | 50mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
AP2553FDC-7IC PWR SWITCH P-CHANNEL 1:1 6DFN |
9,410 |
|
Технический лист |
6-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2.1A | 80mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type C) |
