Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZXMS6006SGTAIC PWR DRIVER N-CHAN 1:1 SOT223 |
26,959 |
|
Технический лист |
TO-261-4, TO-261AA | INTELLIFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | 3.3V, 5V | 2.8A | 75mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-223-3 |
|
BD1HD500FVM-CTRIC PWR SWITCH N-CHAN 1:1 8MSOP |
14,350 |
|
Технический лист |
8-VSSOP, 8-MSOP (0.110", 2.80mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | - | - | 4V ~ 18V | 2A | 500mOhm | CMOS | - | Over Current, Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-MSOP |
|
NCV8406ASTT3GIC PWR DRIVER N-CHAN 1:1 SOT223 |
2,538 |
|
Технический лист |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 7A | 185mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-223 (TO-261) |
|

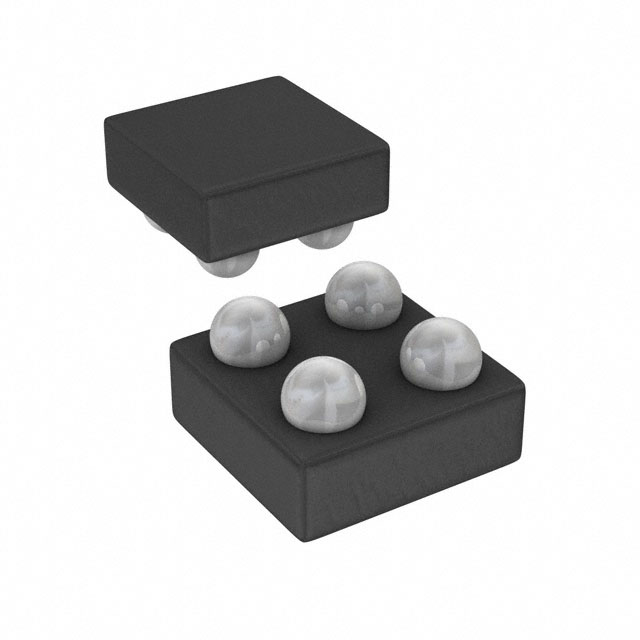

ADP194ACBZ-R7IC PWR SWITCH P-CHAN 1:1 4WLCSP |
13,759 |
|
Технический лист |
4-UFBGA, WLCSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.1V ~ 3.6V | Not Required | 500mA | 55mOhm | Non-Inverting | Slew Rate Controlled | Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.74x0.74) |
|
TBD62084AFG,ELIC PWR SWITCH N-CHAN 1:1 18SOP |
3,744 |
|
Технический лист |
18-SOIC (0.276", 7.00mm Width) | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOP |
|

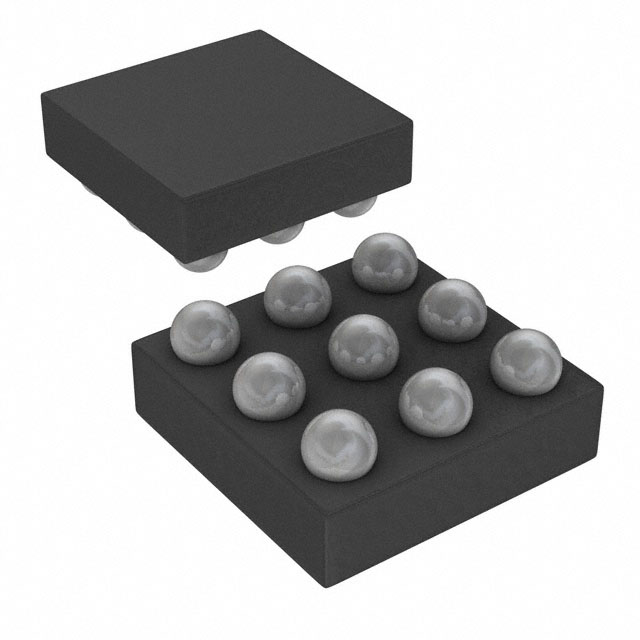

TCK303G,LFIC PWR SWITCH N-CHAN 1:1 9WCSP |
2,632 |
|
Технический лист |
9-UFBGA, WLCSP | TCK30 | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 18V (Max) | 2.3V ~ 28V | 3A | 73mOhm | - | Slew Rate Controlled, Status Flag | Over Temperature, Over Voltage, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 9-WCSP (1.5x1.5) |
|
TBD62503APGIC PWR SWITCH N-CHAN 1:1 16DIP |
1,852 |
|
Технический лист |
16-DIP (0.300", 7.62mm) | - | Tube | Active | General Purpose | 7 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 300mA | - | Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-DIP |
|
BM2LB150FJ-CE2IC PWR SWITCH N-CHAN 1:1 SOP-J8 |
2,838 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 3V ~ 5.5V | 3V ~ 5.5V | 6.5A | 150mOhm | Non-Inverting | - | Over Current, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOP-J |
|
ZXMS81045SPQ-13HIGH SIDE INTELLIFET SO-8EP T&R |
1,987 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 28V | Not Required | 4A | 34mOhm | Non-Inverting | Auto Restart, Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO-EP |
|
TPS2022DRIC PWR SWITCH N-CHAN 1:1 8SOIC |
7,082 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 33mOhm | Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2024DRIC PWR SWITCH N-CHAN 1:1 8SOIC |
3,829 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 33mOhm | Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2030DRIC PWR SWITCH N-CHAN 1:1 8SOIC |
3,603 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 200mA | 33mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2021DRIC PWR SWITCH N-CHAN 1:1 8SOIC |
2,968 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 600mA | 33mOhm | Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2032DRIC PWR SWITCH N-CHAN 1:1 8SOIC |
1,335 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 33mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2020DRIC PWR SWITCH N-CHAN 1:1 8SOIC |
2,267 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 200mA | 33mOhm | Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2031DRIC PWR SWITCH N-CHAN 1:1 8SOIC |
1,370 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 600mA | 33mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2033DRIC PWR SWITCH N-CHAN 1:1 8SOIC |
1,084 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 33mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
LM3526M-H/NOPBIC PWR SWITCH P-CHAN 1:2 8SOIC |
3,633 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 100mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
LM3526M-L/NOPBIC PWR SWITCH P-CHAN 1:2 8SOIC |
593 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 100mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
BTS70121EPAXUMA1PROFET |
3,222 |
|
Технический лист |
14-TSSOP (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 18V | Not Required | 8.5A | 11.5mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-14-22 |
