Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

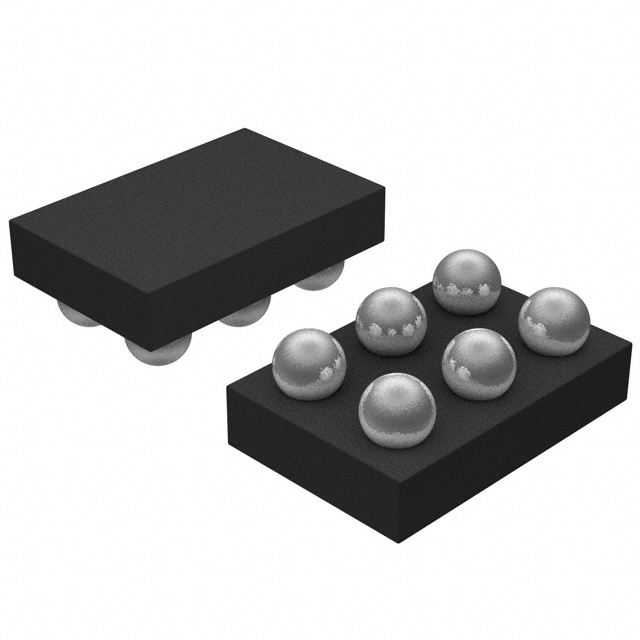

NX5P2924CUKZIC PWR SWITCH N-CHAN 1:1 6WLCSP |
0 |
|
Технический лист |
6-XFBGA, WLCSP | NX5 | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 5.5V | Not Required | 2.5A | 18mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (0.87x1.37) |
|
BTC500101TAAATMA1IC PWR SWITCH N-CHAN 1:1 TO263-7 |
0 |
|
Технический лист |
TO-263-7, D2PAK (6 Leads + Tab) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | Parallel | 5V ~ 28V | Not Required | 30A | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | PG-TO263-7-8 |
|
|
BTS500151TAAATMA1IC PWR SWITCH N-CHAN 1:1 TO263-7 |
0 |
|
Технический лист |
TO-263-7, D2PAK (6 Leads + Tab) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 28V | Not Required | 33A | - | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO263-7-8 |
|

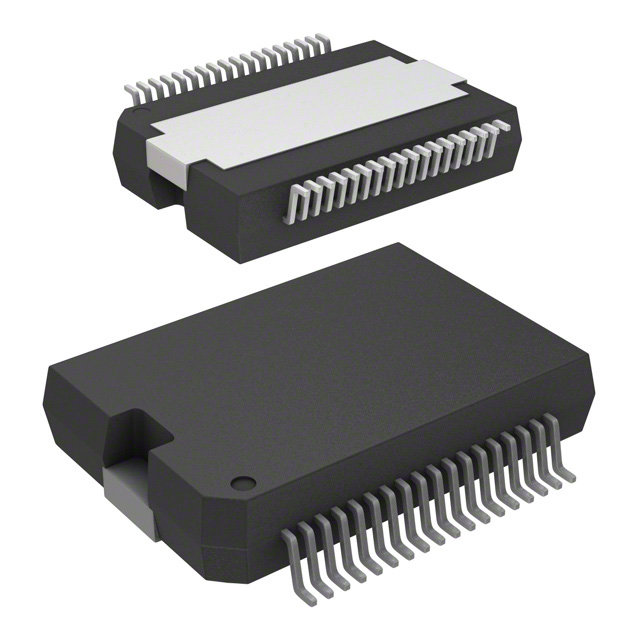

BTS500402SFAXUMA1IC PWR SWITCH N-CHAN 1:1 DSO-36 |
0 |
|
Технический лист |
36-BSSOP (0.295", 7.50mm Width) | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | Parallel | 6V ~ 28V | 4.5V ~ 5.5V | 11A | 4mOhm | Non-Inverting | Slew Rate Controlled | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-36-44 |
|

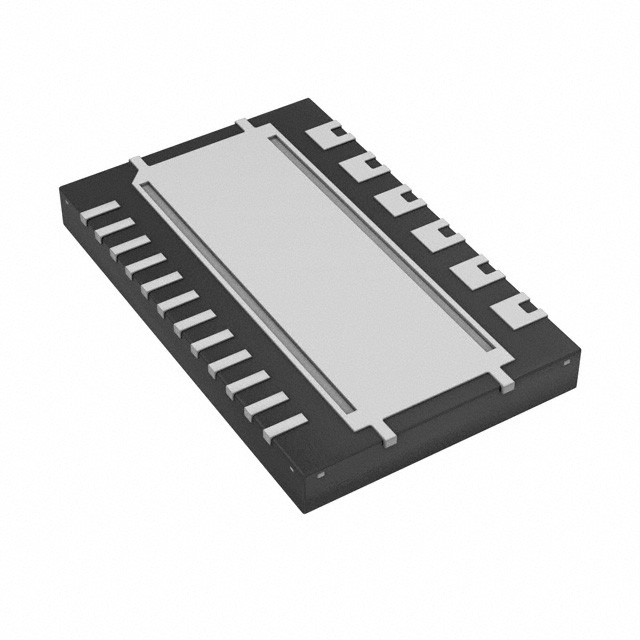

BTS54040LBEAUMA1IC PWR SWITCH N-CHAN 1:2 TSON-24 |
0 |
|
Технический лист |
24-PowerTDFN | - | Tape & Reel (TR) | Discontinued | General Purpose | 4 | 1:2 | High Side | N-Channel | SPI | 5.5V ~ 28V | 3.8V ~ 5.5V | 2A | 39mOhm | - | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | PG-TSON-24-3 |
|
|
BTS54220LBBAUMA1IC PWR SWITCH N-CHAN 1:1 TSON-24 |
0 |
|
Технический лист |
24-PowerTDFN | - | Tape & Reel (TR) | Discontinued | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 5.5V ~ 28V | 3.8V ~ 5.5V | 5A | 9mOhm | - | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | PG-TSON-24-3 |
|
|
BTS54220LBFAUMA1IC PWR SWITCH N-CHAN 1:2 TSON-24 |
0 |
|
Технический лист |
24-PowerTDFN | - | Tape & Reel (TR) | Discontinued | General Purpose | 4 | 1:2 | High Side | N-Channel | SPI | 5.5V ~ 28V | 3.8V ~ 5.5V | 5A | 9mOhm | - | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | PG-TSON-24-3 |
|
|
BTS56033LBBAUMA1IC PWR SWITCH N-CHAN 2:3 TSON-24 |
0 |
|
Технический лист |
24-PowerTDFN | - | Tape & Reel (TR) | Discontinued | General Purpose | 6 | 2:3 | High Side | N-Channel | SPI | 5.5V ~ 28V | 3.8V ~ 5.5V | - | 39mOhm, 110mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSON-24-3 |
|
AS1720A-ATDTIC PWR DRIVER 1:1 8MLPD |
0 |
|
Технический лист |
8-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 1 | 1:1 | Low Side | - | On/Off | 5V ~ 50V | Not Required | 100mA | - | Non-Inverting | Internal PWM | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MLPD (2x2) |
|
|
BTS500402SFAXUMA2IC PWR SWITCH N-CHAN 1:1 DSO-36 |
0 |
|
Технический лист |
36-BSSOP (0.295", 7.50mm Width) | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | Parallel | 6V ~ 28V | 4.5V ~ 5.5V | 11A | 4mOhm | Non-Inverting | Slew Rate Controlled | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-36-44 |
|
MC07XSG517EKIC PWR SWITCH N-CHAN 1:1 54HSOP |
0 |
|
- |
54-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Obsolete | General Purpose | 6 | 1:1 | High Side | N-Channel | SPI | 7V ~ 30V | 4.5V ~ 5.5V | 5.5A, 11A | 7mOhm, 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 54-HSOP |
|
MC17XSG500EKIC PWR SWITCH N-CHAN 1:1 32HSOP |
0 |
|
- |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Obsolete | General Purpose | 6 | 1:1 | High Side | N-Channel | SPI | 7V ~ 30V | 4.5V ~ 5.5V | 5.5A | 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-HSOP |
|
BTS5240LNTIC PWR SWITCH N-CHAN 1:1 DSO-12 |
0 |
|
Технический лист |
12-BSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 5.5A | 21mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-12-2 |
|
BSP75NNTIC PWR DRVR N-CHAN 1:1 SOT223-4 |
0 |
|
Технический лист |
TO-261-4, TO-261AA | HITFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 700mA | 430mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|
|
BTS500151TADATMA1IC PWR SWITCH N-CHAN 1:1 TO263-7 |
0 |
|
Технический лист |
TO-263-7, D2PAK (6 Leads + Tab) | - | Tape & Reel (TR) | Discontinued | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 28V | Not Required | 33A | - | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO263-7-8 |
|
FPF34892UCXIC PWR SWITCH N-CHANNEL 1:2 |
0 |
|
- |
28-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 13.5V | Not Required | - | 28mOhm, 33mOhm | Non-Inverting | Status Flag | Over Temperature, Over Voltage, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
TBD62083AFGIC PWR SWITCH N-CHAN 1:1 18SOP |
0 |
|
Технический лист |
18-SOIC (0.276", 7.00mm Width) | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOP |
|
|
TBD62783AFGIC PWR SWITCH P-CHAN 1:1 18SOP |
0 |
|
Технический лист |
18-SOIC (0.276", 7.00mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 8 | 1:1 | High Side | P-Channel | On/Off | 50V (Max) | Not Required | 500mA | - | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOP |
|
TBD62783AFNGIC PWR SWITCH P-CHAN 1:1 18SSOP |
0 |
|
Технический лист |
18-LSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 8 | 1:1 | High Side | P-Channel | On/Off | 50V (Max) | Not Required | 500mA | - | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-SSOP |
|

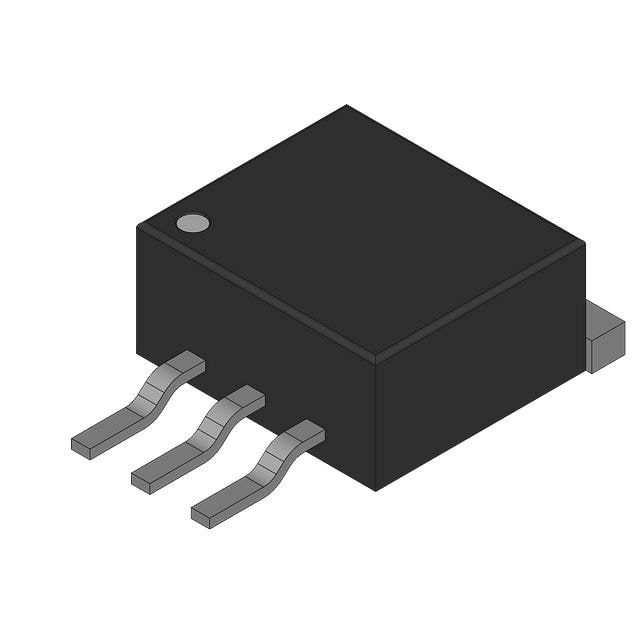

AUIPS1025RTRLIC PWR SWITCH N-CHAN 1:1 DPAK-3 |
0 |
|
Технический лист |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 4.9A | 28mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3 |
