Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

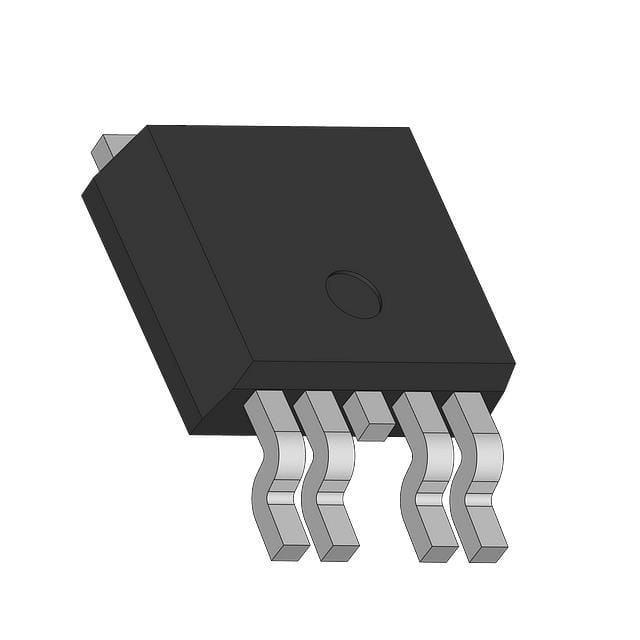

AUIPS6041RTRLIC PWR SWITCH N-CHAN 1:1 DPAK-5 |
0 |
|
Технический лист |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 28V | Not Required | 2.3A | 110mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
AUIPS6041STRLIC PWR SWITCH N-CHAN 1:1 D2PAK-5 |
0 |
|
Технический лист |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 28V | Not Required | - | 110mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK-5 |
|
AUIPS7142GTRIC PWR SWITCH N-CHAN 1:1 16SOIC |
0 |
|
Технический лист |
16-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 60V (Max) | Not Required | 1.5A | 75mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-16-15 |
|
AUIPS72211RTRLIC PWR SWITCH N-CHAN 1:1 DPAK-5 |
0 |
|
Технический лист |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 60V | - | - | 30mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO252-5 |
|
AUIPS1011IC PWR SWITCH N-CHAN 1:1 TO220 |
0 |
|
Технический лист |
TO-220-3 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 18A | 10mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Through Hole | TO-220 |
|
AUIPS1011RIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Технический лист |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 6A | 10mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252AA (DPAK) |
|
AUIPS1011SIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Технический лист |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 6.5A | 10mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK |
|
|
AUIPS1021IC PWR SWITCH N-CHAN 1:1 TO220 |
0 |
|
Технический лист |
TO-220-3 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 13.5A | 20mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Through Hole | TO-220 |
|
AUIPS1021RIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Технический лист |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 4.3A | 20mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252AA (DPAK) |
|
AUIPS1021SIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Технический лист |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 4.8A | 20mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK |
|
|
AUIPS1031IC PWR SWITCH N-CHAN 1:1 TO220 |
0 |
|
Технический лист |
TO-220-3 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 9.5A | 40mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Through Hole | TO-220 |
|
|
AUIPS1031RIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Технический лист |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 3A | 40mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252AA (DPAK) |
|
|
AUIPS1031SIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Технический лист |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 3.3A | 40mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK |
|
AUIPS1041LIC PWR SWITCH N-CHAN 1:1 SOT223 |
0 |
|
- |
TO-261-4, TO-261AA | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 6V ~ 28V | Not Required | 1.5A | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-223 |
|
|
AUIPS1041RIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
- |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 6V ~ 28V | Not Required | 1.5A | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252AA (DPAK) |
|
AUIPS1042GIC PWR SWITCH N-CHANNEL 1:1 8SO |
0 |
|
- |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 6V ~ 28V | Not Required | 1.5A | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SO |
|
|
AUIPS1051LIC PWR SWITCH N-CHAN 1:1 SOT223 |
0 |
|
- |
TO-261-4, TO-261AA | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 6V ~ 28V | Not Required | 1.3A | 160mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-223 |
|
|
AUIPS1052GIC PWR SWITCH N-CHANNEL 1:1 8SO |
0 |
|
- |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 1.1A | 160mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SO |
|
|
AUIPS2031RIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Технический лист |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 2.3A | 45mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252AA (DPAK) |
|
|
AUIPS2041LIC PWR SWITCH N-CHAN 1:1 SOT223 |
0 |
|
Технический лист |
TO-261-4, TO-261AA | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 1.4A | 100mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-SOT223 |
