Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FPF2313MPXIC PWR SWITCH P-CHAN 1:2 8MLP |
0 |
|
Технический лист |
8-WDFN Exposed Pad | IntelliMAX™ | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:2 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 600mA | 75mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MLP (3x3) |
|
BTS500501EGAAUMA1IC PWR SWITCH N-CHAN 1:1 DSO-12 |
0 |
|
Технический лист |
12-BSOP (0.295", 7.50mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 28V | Not Required | 16A | 5mOhm | - | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-12-16 |
|
|
BTS500601EGAAUMA1IC PWR SWITCH N-CHAN 1:1 DSO-12 |
0 |
|
Технический лист |
12-BSOP (0.295", 7.50mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 9V ~ 16V | Not Required | 15A | 6mOhm | - | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-12-16 |
|
|
BTS500801EGAAUMA1IC PWR SWITCH N-CHAN 1:1 DSO-12 |
0 |
|
Технический лист |
12-BSOP (0.295", 7.50mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 9V ~ 16V | Not Required | 13A | 8mOhm | - | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-12-16 |
|
BTS5236-2EKAIC PWR SWITCH N-CHAN 1:1 DSO-14 |
0 |
|
Технический лист |
14-SOIC (0.154", 3.90mm Width) | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 3.6A | 40mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-14 |
|
ITS410E2HKSA1IC PWR SWITCH N-CHAN 1:1 TO220-5 |
0 |
|
Технический лист |
TO-220-5 Formed Leads | PROFET® | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.7V ~ 42V | Not Required | 1.8A | 190mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -30°C ~ 85°C (TA) | - | - | Through Hole | PG-TO220-5-3 |
|
ITS410E2E3043HKSA1IC PWR SWITCH N-CHAN 1:1 TO220-5 |
0 |
|
Технический лист |
TO-220-5 | PROFET® | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.7V ~ 42V | Not Required | 1.8A | 190mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -30°C ~ 85°C (TA) | - | - | Through Hole | P-TO220-5-43 |
|
|
ITS436L2HKSA1IC PWR SWITCH N-CHAN 1:1 TO220-5 |
0 |
|
Технический лист |
TO-220-5 Formed Leads | PROFET® | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.75V ~ 43V | Not Required | 8.8A | 35mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -30°C ~ 85°C (TA) | - | - | Through Hole | PG-TO220-5-3 |
|
|
ITS436L2SHKSA1IC PWR SWITCH N-CHAN 1:1 TO220-5 |
0 |
|
Технический лист |
TO-220-5 | PROFET® | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.75V ~ 43V | Not Required | 8.8A | 35mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -30°C ~ 85°C (TA) | - | - | Through Hole | PG-TO220-5-12 |
|
ITS612N1HKSA1IC PWR SWITCH N-CHAN 1:1 TO220-7 |
0 |
|
Технический лист |
TO-220-7 Formed Leads | PROFET® | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 1.8A | 160mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -30°C ~ 85°C (TA) | - | - | Through Hole | P-TO220-7-3 |
|

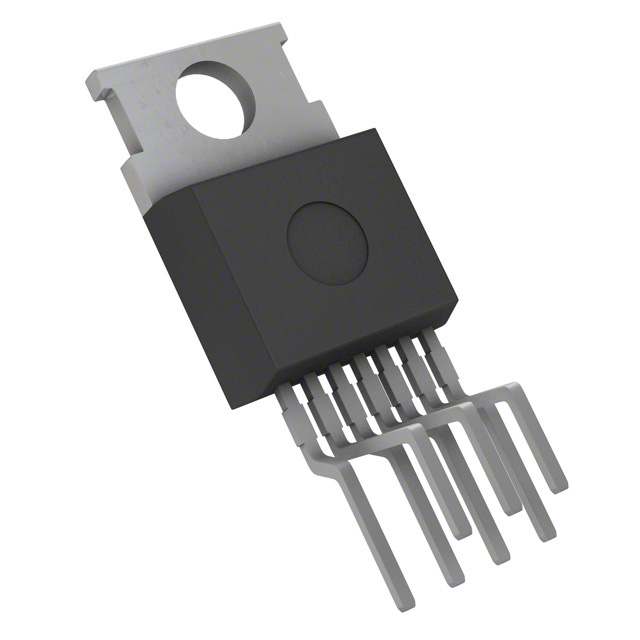

ITS612N1E3230HKSA1IC PWR SWITCH N-CHAN 1:1 TO220-7 |
0 |
|
Технический лист |
TO-220-7 | PROFET® | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 1.8A | 160mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -30°C ~ 85°C (TA) | - | - | Through Hole | P-TO220-7-230 |
|
|
ITS621L1HKSA1IC PWR SWITCH N-CHAN 1:1 TO220-7 |
0 |
|
Технический лист |
TO-220-7 Formed Leads | PROFET® | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 3.5A | 80mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -30°C ~ 85°C (TA) | - | - | Through Hole | P-TO220-7-3 |
|
|
ITS621L1E3220HKSA1IC PWR SWITCH N-CHAN 1:1 TO220-7 |
0 |
|
Технический лист |
TO-220-7 | PROFET® | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 3.5A | 80mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -30°C ~ 85°C (TA) | - | - | Through Hole | PG-TO220-7-230 |
|
|
ITS640S2HKSA1IC PWR SWITCH N-CHAN 1:1 TO220-7 |
0 |
|
Технический лист |
TO-220-7 Formed Leads | PROFET® | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 4A | 27mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -30°C ~ 85°C (TA) | - | - | Through Hole | P-TO220-7-11 |
|
|
ITS640S2SHKSA1IC PWR SWITCH N-CHAN 1:1 TO220-7 |
0 |
|
Технический лист |
TO-220-7 Formed Leads | PROFET® | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 4A | 27mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -30°C ~ 85°C (TA) | - | - | Through Hole | P-TO220-7-11 |
|

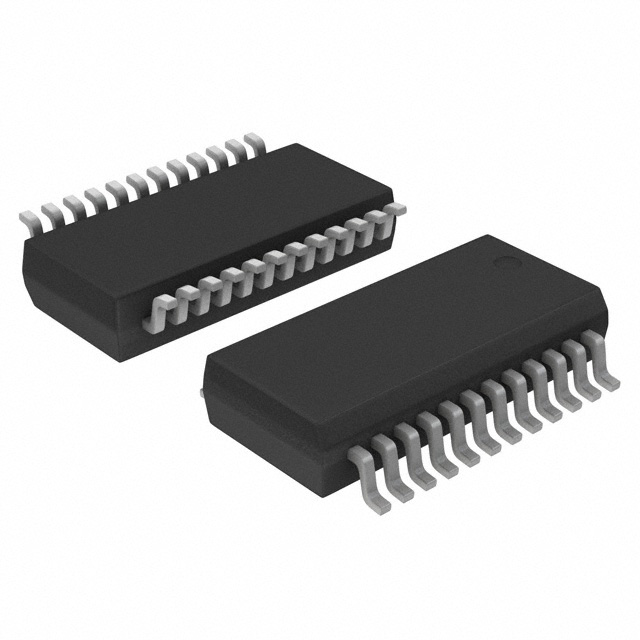

TLE7230GSFUMA1IC PWR DRIVER N-CHAN 1:8 24SSOP |
0 |
|
Технический лист |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:8 | Low Side | N-Channel | SPI | 4.5V ~ 5.5V | 3V ~ 5.5V | 300mA | 800mOhm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24-6 |
|
TLE7234EXUMA1IC PWR DRIVER N-CHAN 3:8 24SSOP |
0 |
|
Технический лист |
24-LSSOP (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 3:8 | High Side or Low Side | N-Channel | SPI | 9V ~ 16V | 3V ~ 5.5V | 175mA, 350mA | 900mOhm, 1.6Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24-4 |
|
|
TLE7235EIC PWR DRIVER N-CHAN 1:8 24SSOP |
0 |
|
Технический лист |
24-LSSOP (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 9V ~ 16V | 3V ~ 5.5V | 175mA, 350mA | 900mOhm, 1.6Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24-4 |
|
TLE7235GIC PWR DRIVER N-CHAN 1:8 DSO-20 |
0 |
|
Технический лист |
20-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 9V ~ 16V | 3V ~ 5.5V | 140mA, 280mA | 850mOhm, 1.6Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-20-45 |
|
TLE7237GSFUMA1IC PWR DRIVER N-CHAN 3:8 24SSOP |
0 |
|
Технический лист |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 3:8 | High Side or Low Side | N-Channel | SPI | 9V ~ 28V | 3V ~ 5.5V | 130mA, 260mA | 900mOhm, 1.6Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24-5 |
