Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VNQ660SPIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
- |
PowerSO-10 Exposed Bottom Pad | - | Tube | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 36V | Not Required | 6A | 40mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
VB029-EIC PWR DRVR BIPLR 1:1 5PENTAWATT |
0 |
|
- |
Pentawatt-5 (Vertical, Bent and Staggered Leads) | VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | Bipolar | Parallel | 4.5V ~ 5.5V | Not Required | 12A | - | Non-Inverting | Status Flag | Over Temperature | -40°C ~ 150°C (TJ) | - | - | Through Hole | 5-PENTAWATT |
|
TPS2015DG4IC PWR SWITCH N-CHAN 1:1 8SOIC |
0 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Discontinued | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.75V ~ 5.25V | - | 1A | 95mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
CS1112YDWFR24IC PWR DRIVER N-CHAN 1:1 24SOIC |
0 |
|
Технический лист |
24-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | Low Side | N-Channel | SPI | 9V ~ 17V | 4.5V ~ 5.5V | 3A | 1Ohm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 24-SOIC |
|
MIC2563A-0YSMIC PWR SWITCH N-CHAN 3:4 28SSOP |
0 |
|
Технический лист |
28-SSOP (0.209", 5.30mm Width) | - | Tube | Obsolete | PCMCIA Switch | 4 | 3:4 | Low Side | N-Channel | Logic | 3.3V, 5V, 12V | Not Required | 200mA | 1.8Ohm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SSOP |
|
|
MIC2563A-0YSM-TRIC PWR SWITCH N-CHAN 3:4 28SSOP |
0 |
|
Технический лист |
28-SSOP (0.209", 5.30mm Width) | - | Tape & Reel (TR) | Obsolete | PCMCIA Switch | 4 | 3:4 | Low Side | N-Channel | Logic | 3.3V, 5V, 12V | Not Required | 200mA | 1.8Ohm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SSOP |
|
VND920-EIC PWR DRIVER N-CHANNEL 1:1 28SO |
0 |
|
Технический лист |
28-SOIC (0.295", 7.50mm Width) | VIPower™ | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 30A | 15mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SO |
|
VND5004A-EIC PWR DRIVER N-CHAN 1:1 24PQFN |
0 |
|
Технический лист |
24-PowerDFN | VIPower™ | Tray | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 27V | Not Required | 70A | 4mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|
BTS50090-1TMAIC PWR SWITCH N-CHAN 1:1 TO220-7 |
0 |
|
Технический лист |
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 38V | Not Required | 9A | 8mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO220-7-4 |
.jpg)
|
AUIPS7081STRLIC PWR SWITCH N-CHAN 1:1 D2PAK-5 |
0 |
|
Технический лист |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 35V | Not Required | 2A | 55mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO263-5 |
|
BTS500851TMBAKSA1IC PWR SWITCH N-CHAN 1:1 TO220-7 |
0 |
|
Технический лист |
TO-220-7 Formed Leads | PROFET® | Tube | Last Time Buy | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 58V | Not Required | 38A | 7.2mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | P-TO220-7-11 |
|
MC33999EKR2IC PWR SWITCH N-CH 1:16 54SOIC |
0 |
|
Технический лист |
54-BSSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 16 | 1:16 | Low Side | N-Channel | SPI | 5V ~ 27V | 1.5V ~ 3V | 900mA | 550mOhm | - | PWM Input | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 54-SOIC-EP |
|
|
BTS660PIC PWR SWITCH N-CHAN 1:1 TO220-7 |
0 |
|
Технический лист |
TO-220-7 | PROFET® | Tube | Discontinued | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 58V | Not Required | 38A | 7.2mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | P-TO220-7-3 |
|
|
BTS660P E3180AIC PWR SWITCH N-CHAN 1:1 TO220-7 |
0 |
|
Технический лист |
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | PROFET® | Tape & Reel (TR) | Discontinued | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 58V | Not Required | 38A | 7.2mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | P-TO220-7 |
|
|
VN460SPIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Технический лист |
PowerSO-10 Exposed Bottom Pad | - | Tube | Obsolete | Relay, Solenoid Driver | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 25A | 20mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
LT1188CTIC PWR SWTCH HI SID 1.5A TO220-5 |
0 |
|
Технический лист |
TO-220-5 | - | Tube | Obsolete | - | 1 | - | High Side | - | - | 30V | - | 1.5A | - | Non-Inverting | - | - | 0°C ~ 100°C | - | - | Through Hole | TO-220-5 |
|

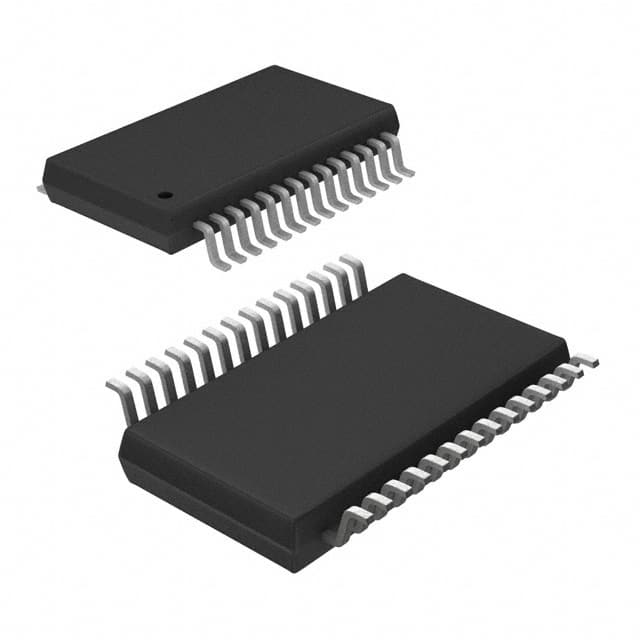

TPS2216DBRG4IC PWR SWITCH 1:1 30SSOP |
0 |
|
Технический лист |
30-SSOP (0.209", 5.30mm Width) | - | Tape & Reel (TR) | Obsolete | PCMCIA Switch | 4 | 1:1 | High Side | - | Serial | 3.3V, 5V, 12V | Not Required | 1A | 60mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 30-SSOP |
|
BTS730XUMA1IC PWR SWITCH N-CHAN 1:1 DSO-20 |
0 |
|
Технический лист |
20-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.9V ~ 16.9V | Not Required | 3A | 70mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-20-6 |
|
MIC2549A-1YTSIC PWR SWITCH N-CHAN 1:1 14TSSOP |
0 |
|
Технический лист |
14-TSSOP (0.173", 4.40mm Width) | - | Tube | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 3A | 35mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
MIC2549A-1YTS-TRIC PWR SWITCH N-CHAN 1:1 14TSSOP |
0 |
|
Технический лист |
14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 3A | 35mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
