Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BTS141 E3045AIC PWR SWITCH N-CHAN 1:1 TO220-3 |
0 |
|
Технический лист |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | HITFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 12A | 25mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO220-3-5 |
|

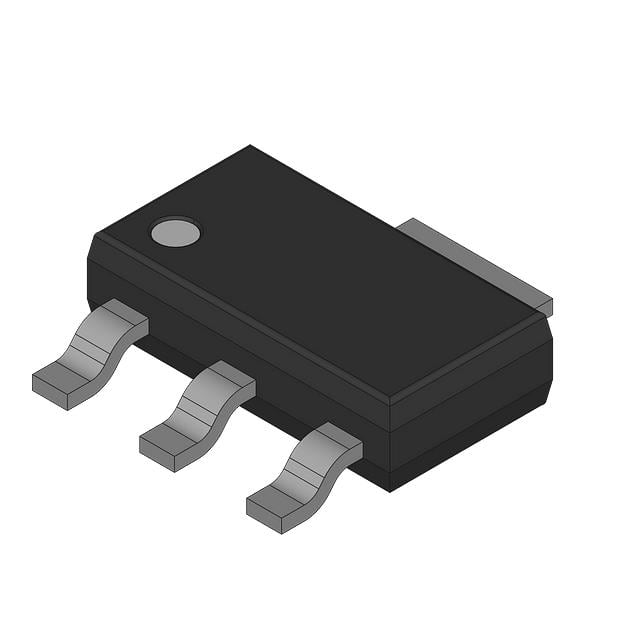

AUIPS1051LTRIC PWR SWITCH N-CHAN 1:1 SOT223 |
0 |
|
- |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 6V ~ 28V | Not Required | 1.3A | 160mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-223 |
|
MIC5801BWM-TRIC PWR DRIVER BIPOLAR 1:1 24SOIC |
0 |
|
Технический лист |
24-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Discontinued | Latched Driver | 8 | 1:1 | Low Side | Bipolar | Strobe, Parallel | 50V (Max) | - | 500mA | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-SOIC |
|
BTS3205NHUMA1IC PWR DRVR N-CHAN 1:1 SOT223-4 |
0 |
|
Технический лист |
TO-261-4, TO-261AA | HITFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | Logic | 10V | Not Required | 520mA | 700mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Over Load, Over Temperature, Short Circuit, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|
VND600PTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO24 |
0 |
|
- |
24-PowerBSOP (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 25A | 35mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-24 |
|
NCV8403STT1GIC DRIVER LOW SIDE SOT-223-4 |
0 |
|
Технический лист |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Obsolete | - | 1 | - | Low Side | - | - | - | - | - | 53mOhm | Non-Inverting | - | - | -40°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOT-223 (TO-261) |
|
VND5050AJ-EIC PWR DRVR N-CHAN 1:1 PWRSSO12 |
0 |
|
Технический лист |
PowerSSO-12 | VIPower™ | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 36V | Not Required | 12A | 50mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12™ |
|
VNV35N07-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Технический лист |
PowerSO-10 Exposed Bottom Pad | OMNIFET™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 55V (Max) | Not Required | 25A | 28mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | 10-PowerSO |
|
MIC2042-1BTSIC PWR SWITCH N-CHAN 1:1 14TSSOP |
0 |
|
Технический лист |
14-TSSOP (0.173", 4.40mm Width) | - | Bulk | Discontinued | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 5.5V | 1.6V ~ 5.5V | 3A | 40mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Open Load Detect, Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
MIC2042-2BTSIC PWR SWITCH N-CHAN 1:1 14TSSOP |
0 |
|
Технический лист |
14-TSSOP (0.173", 4.40mm Width) | - | Bulk | Discontinued | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 5.5V | 1.6V ~ 5.5V | 3A | 40mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Open Load Detect, Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
MIC2043-1BTSIC PWR SWITCH N-CHAN 1:1 14TSSOP |
0 |
|
Технический лист |
14-TSSOP (0.173", 4.40mm Width) | - | Bulk | Discontinued | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 5.5V | 1.6V ~ 5.5V | 3A | 40mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Open Load Detect, Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
MIC2043-2BTSIC PWR SWITCH N-CHAN 1:1 14TSSOP |
0 |
|
Технический лист |
14-TSSOP (0.173", 4.40mm Width) | - | Bulk | Discontinued | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 5.5V | 1.6V ~ 5.5V | 3A | 40mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Open Load Detect, Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
VN920IC PWR DRVR N-CH 1:1 5PENTAWATT |
0 |
|
Технический лист |
Pentawatt-5 (Vertical, Bent and Staggered Leads) | VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 30A | 16mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | 5-PENTAWATT |
|
MIC2505-1BNIC PWR SWITCH N-CHANNEL 1:1 8DIP |
0 |
|
Технический лист |
8-DIP (0.300", 7.62mm) | - | Bulk | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 7.5V | Not Required | 2A | 30mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
MIC2505-2BNIC PWR SWITCH N-CHANNEL 1:1 8DIP |
0 |
|
Технический лист |
8-DIP (0.300", 7.62mm) | - | Bulk | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 7.5V | Not Required | 2A | 30mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
VND05BSPIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Технический лист |
PowerSO-10 Exposed Bottom Pad | - | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 26V | Not Required | 1.6A | 200mOhm (Max) | Non-Inverting | Status Flag | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
MIC5842BVIC PWR DRVR BIPOLAR 1:8 20PLCC |
0 |
|
Технический лист |
20-LCC (J-Lead) | - | Bulk | Discontinued | Latched Driver | 8 | 1:8 | Low Side | Bipolar | Strobe, Serial | 15V (Max) | - | 500mA | - | Non-Inverting | - | - | -55°C ~ 85°C (TA) | - | - | Surface Mount | 20-PLCC (9x9) |
|
AUIPS2051LTRIC PWR SWITCH N-CHAN 1:1 SOT223 |
0 |
|
Технический лист |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 900mA | 250mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-3 |
|
|
MIC2549A-1BTSIC PWR SWITCH N-CHAN 1:1 14TSSOP |
0 |
|
Технический лист |
14-TSSOP (0.173", 4.40mm Width) | - | Bulk | Discontinued | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 3A | 35mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
MIC2549A-2BTSIC PWR SWITCH N-CHAN 1:1 14TSSOP |
0 |
|
Технический лист |
14-TSSOP (0.173", 4.40mm Width) | - | Bulk | Discontinued | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 3A | 35mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
